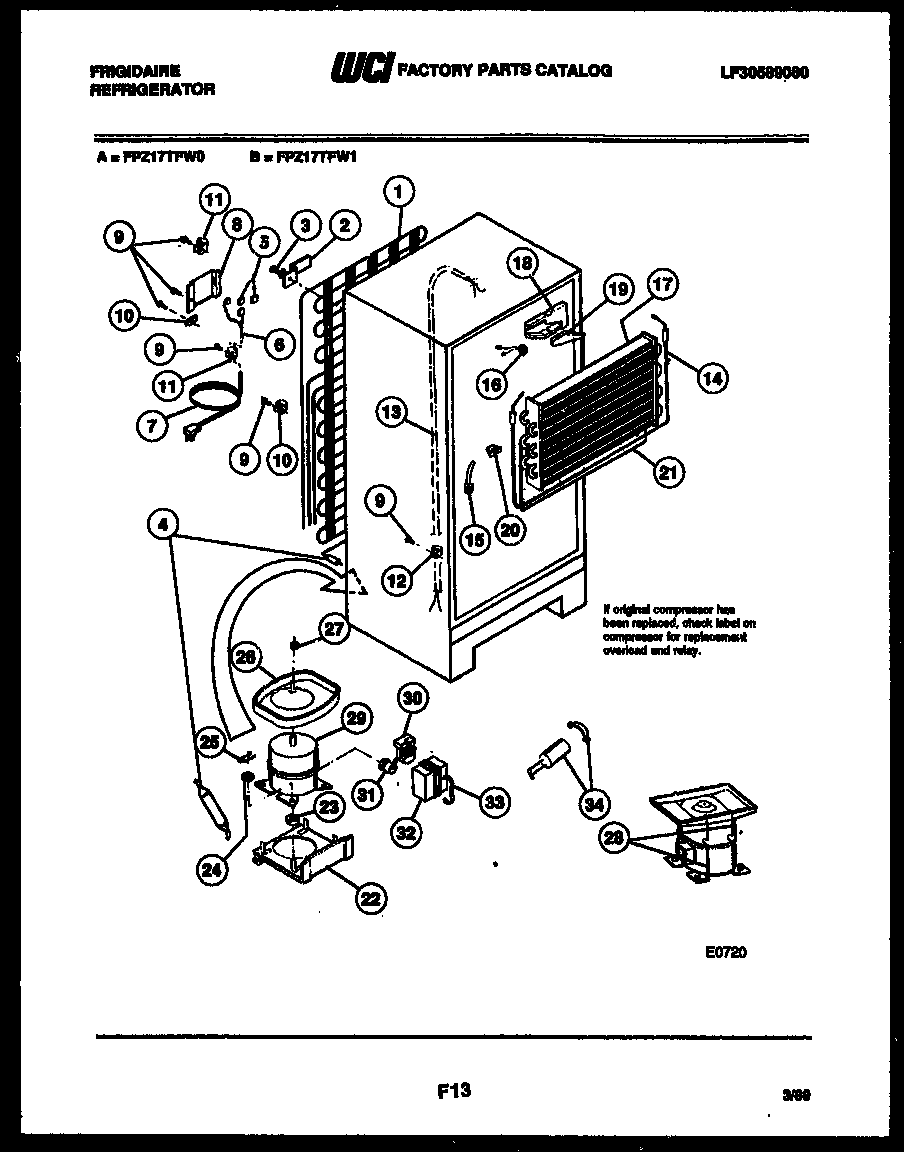

FPZ17TFF0 06 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*17504	WCI 09960001
1	WCI 08009262
2	WCI 08003600
3A	WCI 08009617
3	5308000039 Frigidaire Refrigerator Screw
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	WCI 3018900
6	WCI 08009628
7	WCI 08000064
8	WCI 08013644
9	5304455651 Frigidaire Refrigerator Screw
10	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
11	240396801 Frigidaire Refrigerator Tube Clamp
13	WCI 08010274
14	WCI 08009754
15	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
16	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
17	EVAPORATOR
18	WCI 08013648
19	WCI 08013646
20	WCI 08017227
21	WCI 08009638
22	WCI 08013663
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	WCI 08003597
25	CLIP (4)
26B	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
26A	PAN-DEFROST
27	NUT
28	PAN RETAINER KIT-SERVICE
29	WCI 3916004
30	WCI 3007173
31	WCI 3007529
33	5303006412 Frigidaire Refrigerator Cover Mounting Strap
34	CAPACITOR-RUN
