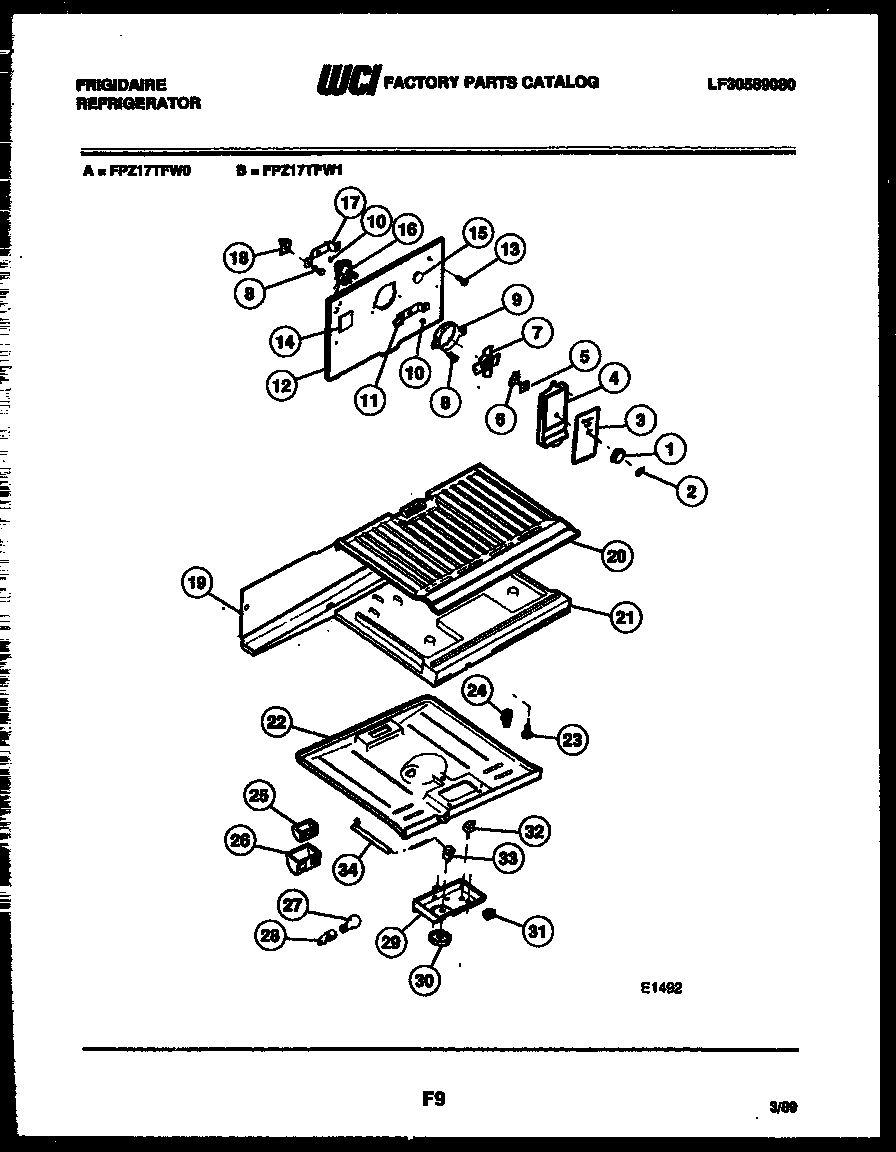

FPZ17TFF1 04 – REFRIGERATOR AND DAMPER CONTROL ASS

Products

Position	Product
1	WCI 08009793
2	LABEL, KNOB
3	WCI 08009822
4	WCI 08009821
5	WCI 08000067
6	WCI 08000066
7	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	5304455651 Frigidaire Refrigerator Screw
9	WCI 08000124
10	G187559 Frigidaire Refrigerator Bushing
11	WCI 08000043
12A	WCI 08000126
12	WCI 08009753
13A	240396801 Frigidaire Refrigerator Tube Clamp
14	WCI 08013636
15	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
16	5300158289 Frigidaire Evaporator Fan Motor
17	WCI 08000042
18	WCI 08000107
19	TROUGH-DRAIN
20	WCI 08010002
20A	WCI 08000185
21B	3205266 Frigidaire Refrigerator Edge Protector
21A	WCI 3018900
21	OVEN LINER BACK
22	TOP PANEL-REFR
23	WCI 08000070
24	5309918806 Frigidaire Refrigerator Light Switch Door
25	WCI 08000071
26	WCI 08000055
27	316538904 Frigidaire Oven Lamp Light
28	218906802 Frigidaire Light Lamp Socket
29A	5304455650 Frigidaire Refrigerator Screw
29	CONTROL BOX
30	KNOB, TEMP CONTROL
31	WCI 3018896
32	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
32A	5304455649 Frigidaire Refrigerator Screw
33A	WCI 08000009
33	CONTROL-TEMPERATURE
34	WCI 3018891
