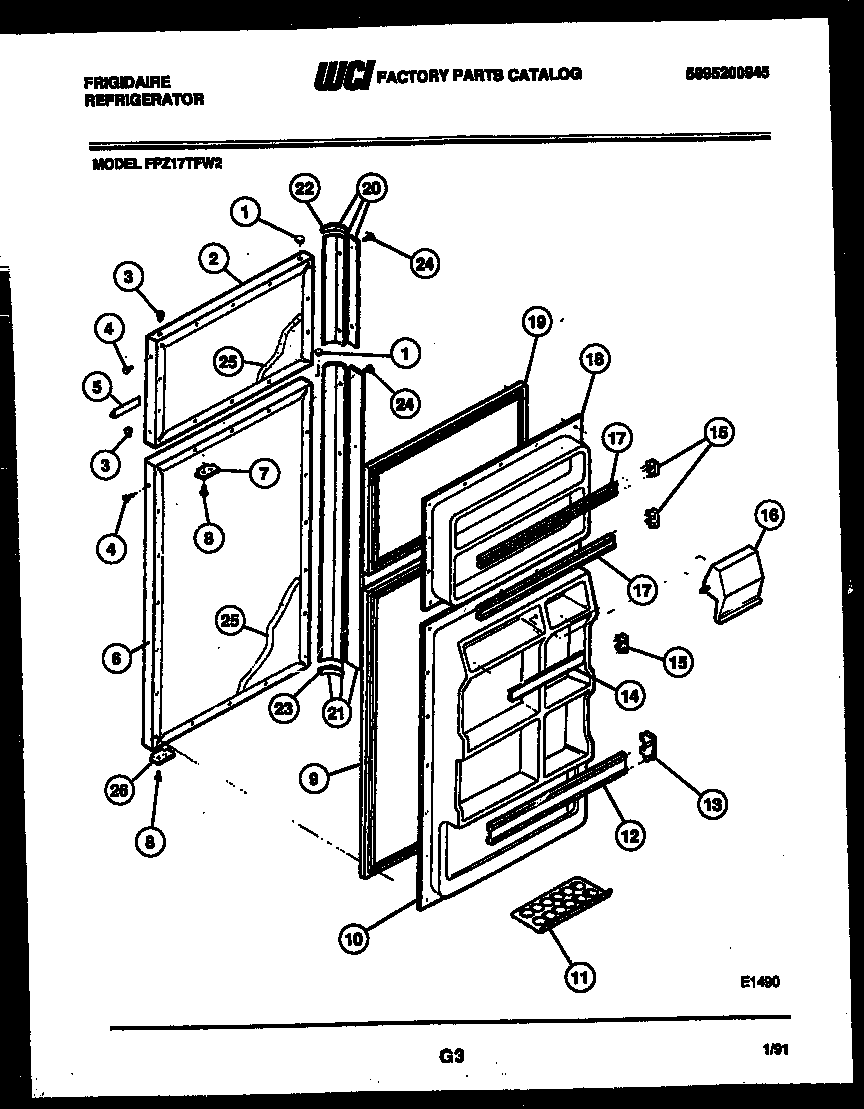

FPZ17TFF2 02 – DOOR PARTS

FPZ17TFF2 02 – DOOR PARTS

Written by

in

FPZ17TFF2 02 – DOOR PARTS

Products

PositionProduct
1BUTTON PLUG-COFFEE
3BEARING-HINGE
4BUTTON PLUG-COFFEE
5WCI 3201581
6WCI 08012841
7WCI 5308000255
8WCI 5308011745
9218730603 Frigidaire Door Gasket
10WCI 3200478
11215817806 Frigidaire Refrigerator Egg Tray
12215516220 Frigidaire Refrigerator Door Rack
13A5303325991 Frigidaire Refrigerator Door Bar Endcap
135303325990 Frigidaire Refrigerator Door Bar End Cap
14RACK-REFR DOOR
15A5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
155303323480 Frigidaire Refrigerator Door Bar End Cap Rh
16WCI 3018867
17WCI 5303018866
18WCI 3018865
18A5304455651 Frigidaire Refrigerator Screw
19GASKET, FRZR DOOR, BROWN, MAGNETIC
20HANDLE ASSY W/ CAP & TRIM-FREEZER
21WCI 3202009
22WCI 5308010239
23END CAP-BOTTOM (2)
24SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
25INSULATION-BULK (NON-ILLUSTRATED)
26DOOR STOP, REFR SECTION
