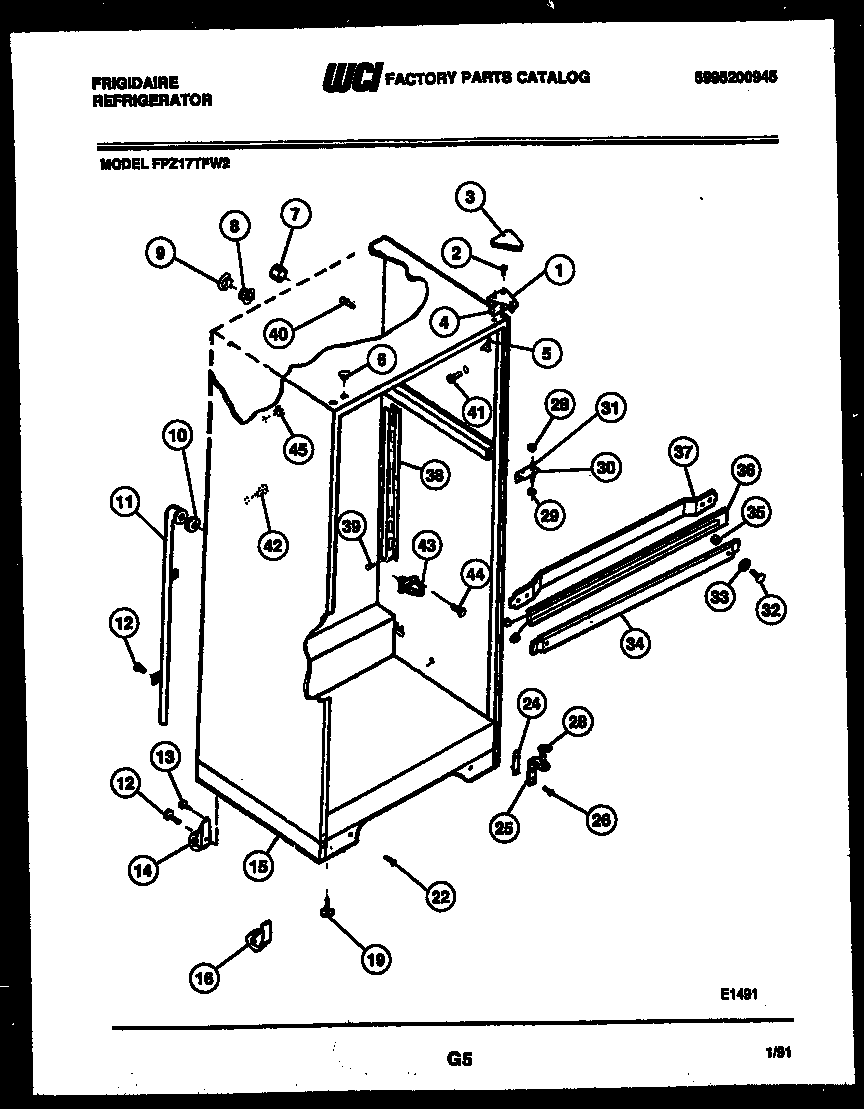

FPZ17TFF2 03 – CABINET PARTS

FPZ17TFF2 03 – CABINET PARTS

Written by

in

FPZ17TFF2 03 – CABINET PARTS

Products

PositionProduct
1BRACKET-UPPER HINGE
3WCI 5303001666
4SHIM – UPPER HINGE
5WCI 5303202339
6PLUG, COFFEE
7TUBE-RUBBER
8WCI 5303001286
9WCI 5303001287
10WCI 5303207353
11WCI 5303210377
11A5308000133 Frigidaire Refrigerator Clamp
12BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
135304455651 Frigidaire Refrigerator Screw
14WCI 5308009773
15BASE-CABINET
16WCI 5303212490
19WCI 08003583
22WCI 5303212598
24WCI 5303212488
24ATAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
25BRACKET-LOWER HINGE, W/ HINGE PIN
25ATAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
25BTAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
26241710601 Frigidaire Refrigerator Screw
28WASHER, .34 X .62 X .05, NYLON
29WCI 5308000186
30BRACKET-CTR HINGE
31WCI 5308000184
32WCI 5308012258
33WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
34WCI 3916133
35SPACER-MULLION MTG, STEEL
36WCI 5308017408
37WCI 5308003604
38CHANNEL, RH & LH
395304455852 Frigidaire Refrigerator Screw
40SUPPORT-COIL COVER
415304509705 Frigidaire Refrigerator Grommet
425304500407 Frigidaire Refrigerator Shelf Mounting Grommet
43WCI 5308000056
44WCI 5303001361
45PLUG, BUTTON, CABINET LINER (NI)
