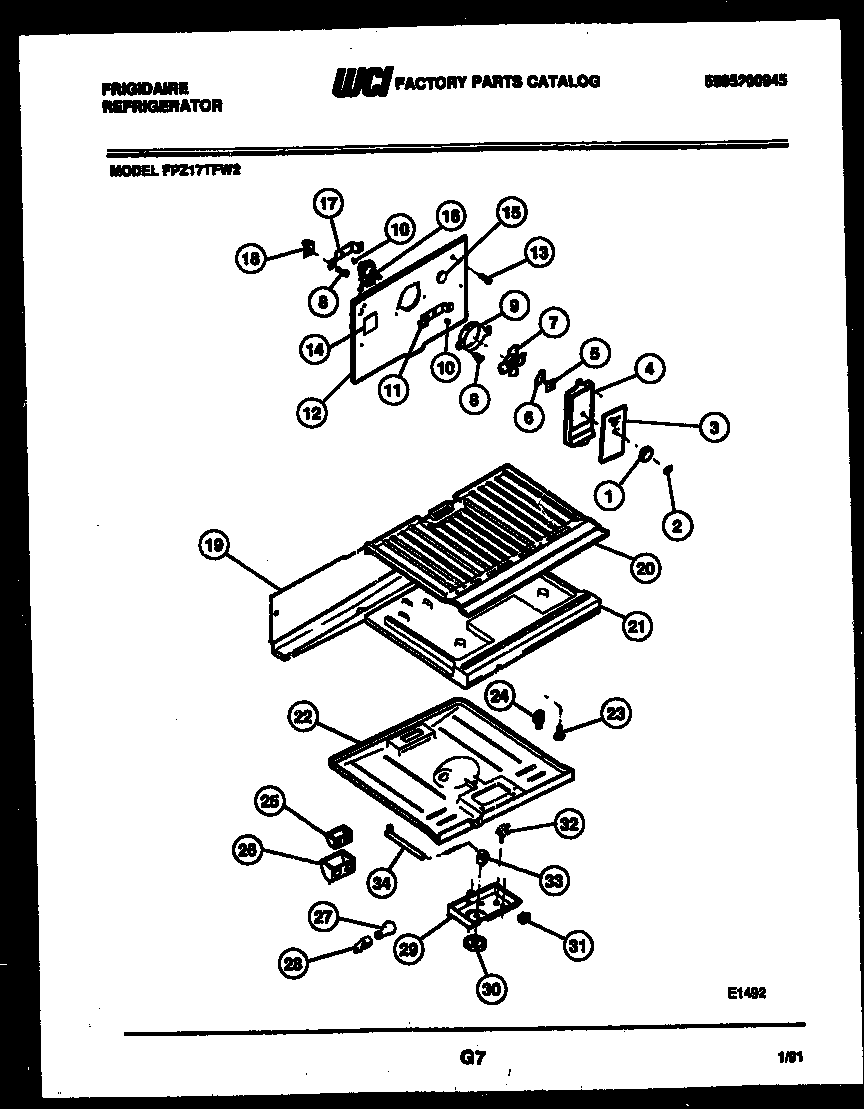

FPZ17TFF2 04 – SHELVES AND SUPPORTS

Products

Position	Product
1	WCI 08009793
2	LABEL, KNOB
3	WCI 08009822
4	WCI 08009821
4A	WCI 08010646
5	Nut,push-on
6	DAMPER-FAN COVER
7	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	5304455651 Frigidaire Refrigerator Screw
9	RING-FAN ORIFICE
10	G187559 Frigidaire Refrigerator Bushing
11	WCI 5303001226
12	WCI 3001527
12A	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
13	5304455650 Frigidaire Refrigerator Screw
14	BUTTON – DECORATIVE PLUG
15	5303208309 Frigidaire Refrigerator Plug Hole
16	5300158289 Frigidaire Evaporator Fan Motor
17	BRACKET-MOTOR MTG, REAR
18	WCI 5308000107
19	TROUGH-DRAIN
20	WCI 5303001537
21A	WCI 3018900
21B	3205266 Frigidaire Refrigerator Edge Protector
21	WCI 5303018899
22	TOP PANEL-REFR
23	WCI 5303001380
24	5309918806 Frigidaire Refrigerator Light Switch Door
25A	5303001449 Frigidaire Refrigerator Seal
25	DEFLECTRO, AIR, W/SEAL
25B	EXTENSION, AIR DEFLECTOR, WITH INSULATION
26	WCI 5303001448
27	316538904 Frigidaire Oven Lamp Light
28	218906802 Frigidaire Light Lamp Socket
29	CONTROL BOX
30	KNOB, TEMP CONTROL
31	WCI 5303018896
32A	5304455649 Frigidaire Refrigerator Screw
32	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
33A	WCI 5303001260
33	WCI 5303018894
34	WCI 3018891
