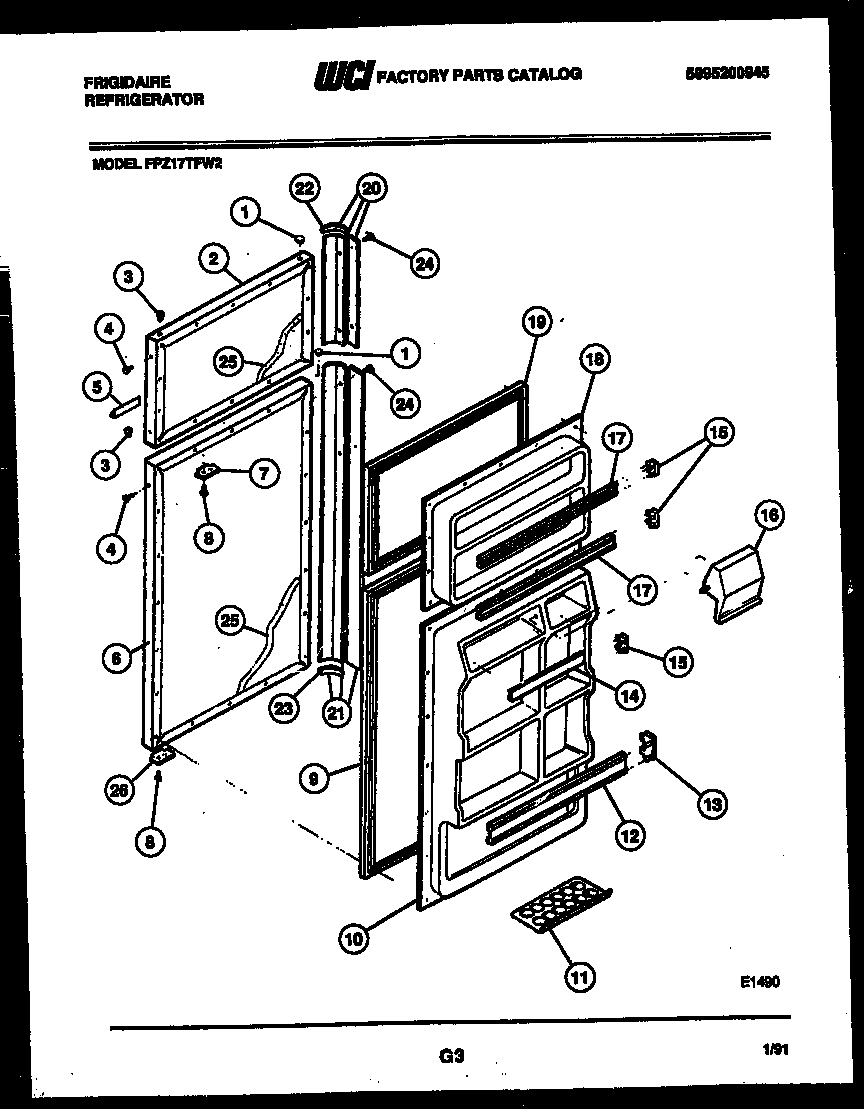

FPZ17TFH2 02 – DOOR PARTS

FPZ17TFH2 02 – DOOR PARTS

Written by

in

FPZ17TFH2 02 – DOOR PARTS

Products

PositionProduct
1BUTTON-WHEAT
2FREEZER DOOR-WHEAT
3BEARING-HINGE
4BUTTON-WHEAT
5WCI 3201581
6WCI 08012840
7WCI 5308000255
8WCI 5308011745
9218730603 Frigidaire Door Gasket
10WCI 3200478
11215817806 Frigidaire Refrigerator Egg Tray
12215516220 Frigidaire Refrigerator Door Rack
135303325990 Frigidaire Refrigerator Door Bar End Cap
13A5303325991 Frigidaire Refrigerator Door Bar Endcap
14RACK-REFR DOOR
155303323480 Frigidaire Refrigerator Door Bar End Cap Rh
15A5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
16WCI 3018867
17WCI 5303018866
18A5304455651 Frigidaire Refrigerator Screw
18WCI 3018865
19GASKET, FRZR DOOR, BROWN, MAGNETIC
20HANDLE ASSY W/ CAP & TRIM-FREEZER
21WCI 3202009
22WCI 5308010239
23END CAP-BOTTOM (2)
24SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
25INSULATION-BULK (NON-ILLUSTRATED)
26DOOR STOP, REFR SECTION
