FPZ19TFA2 06 – SYSTEM AND AUTOMATIC DEFROST PARTS

FPZ19TFA2 06 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

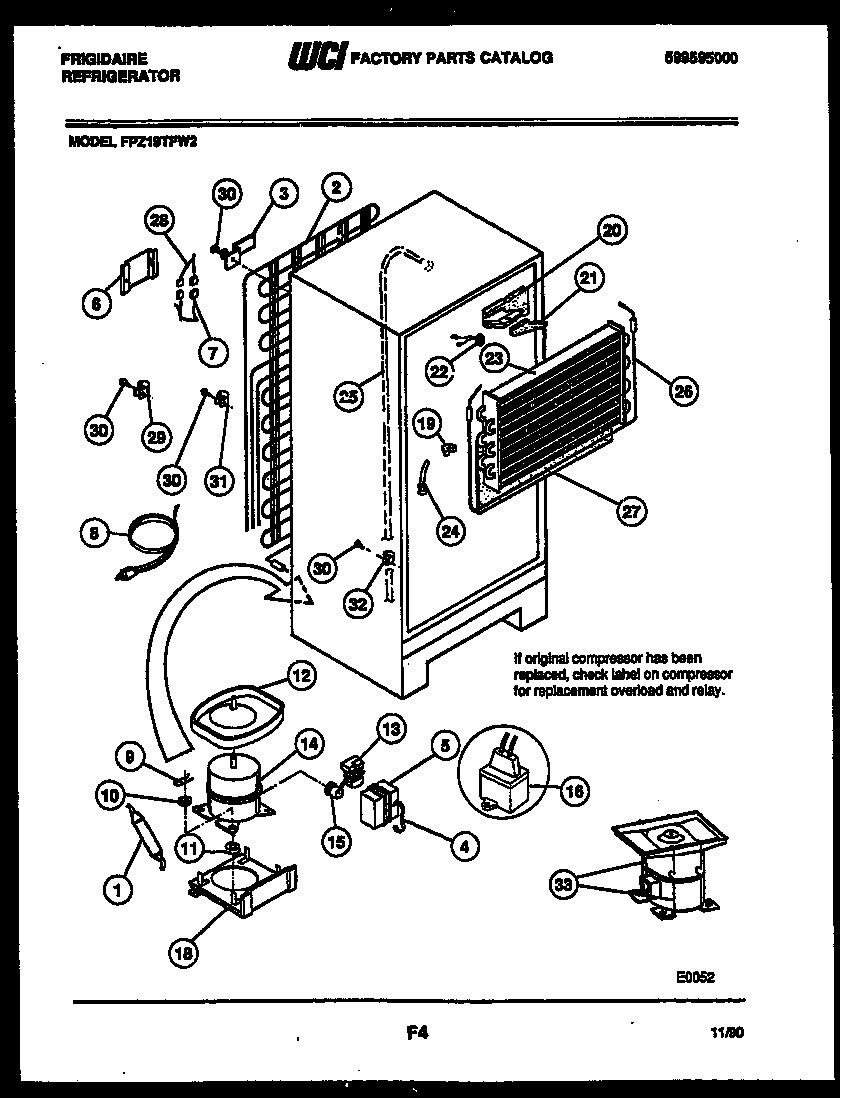

FPZ19TFA2 06 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*394175303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
*39417HOT TUBE REPAIR KIT-SERVICE
*39417PAN RETAINER KIT, SERVICE
15303305677 Frigidaire Replacement Filter Dryer Filters
2WCI 5300163133
3BRACKET-MTG (4)
45303006412 Frigidaire Refrigerator Cover Mounting Strap
6WCI 5303001197
7WIRING HARNESS, COMPRESSOR,
8CORD-ELECTRIC POWER
9CLIP – COMPRESSOR MTG
10WASHER-COMPR MTG
11218513300 Frigidaire Refrigerator Compressor Mount Grommet
12PAN-DEFROST DRAIN, ORIG/SVCE COMPR
13RELAY-TL
14COMPRESSOR W/ ELEC
15WCI 5303001713
16CAPACITOR
18WCI 5308013663
19INSULATION BLOCK, LH
20INSULATION BLOCK, RH
21INSULATION PLUG, RH
225303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
23WCI 5300162506
245308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
25WCI 5308000728
265317842502 Frigidaire Defrost Heater
27INSULATOR-EVAP, PLASTIC
28WCI 3018900
305304455651 Frigidaire Refrigerator Screw
315303001199 Frigidaire Refrigerator Wiring Harness Clamp
325308000133 Frigidaire Refrigerator Clamp
33WCI 08950024
