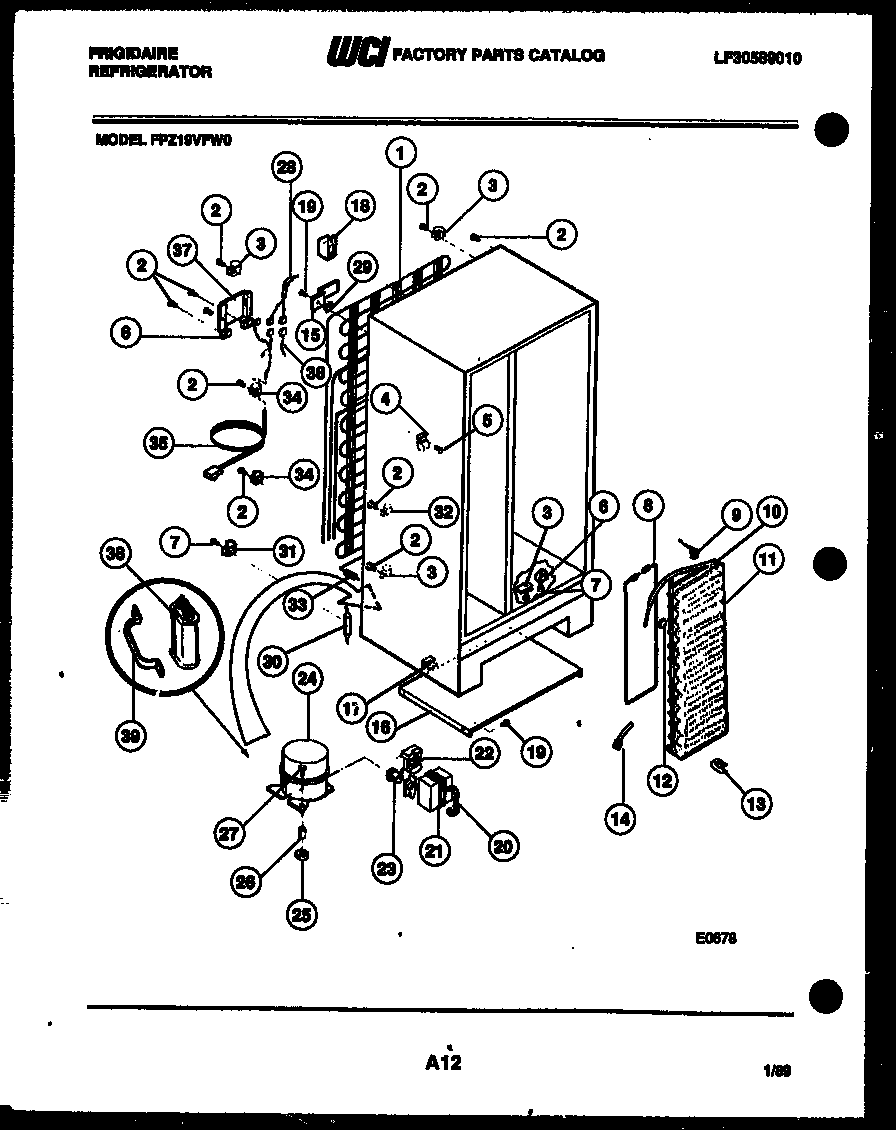

FPZ19VFL0 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*40923	PAN RETAINER KIT-SERVICE
1	WCI 08017228
2	5304455651 Frigidaire Refrigerator Screw
3	WCI 08000221
4	CLAMP – TUBE (2)
6	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
7	218843801 Frigidaire Refrigerator Screw
8	WCI 08017562
9	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
10	WCI 08017565
11	WCI 3017362
12	WCI 08000828
13	WCI 08002777
14	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
15	WCI 08003600
16	DEFROST PLATE & TUBE ASSY
17	WCI 08000099
18	WCI 08002782
19	5304455650 Frigidaire Refrigerator Screw
20	5303006412 Frigidaire Refrigerator Cover Mounting Strap
22	WCI 3007173
23	5303271616 Frigidaire Refrigerator P1-Overload
24	WCI 08950223
25	218513300 Frigidaire Refrigerator Compressor Mount Grommet
26	WCI 08002758
27	WCI 08000029
28	WCI 3015098
29	WCI 08009617
30	5303305677 Frigidaire Replacement Filter Dryer Filters
32	240396801 Frigidaire Refrigerator Tube Clamp
33	SLEEVE-CONNECTOR
35	WCI 08000064
36	WCI 08009616
37A	WCI 09960005
37	WCI 08013644
38	WCI 08017230
39	STRAP-CAPACITOR MTG
