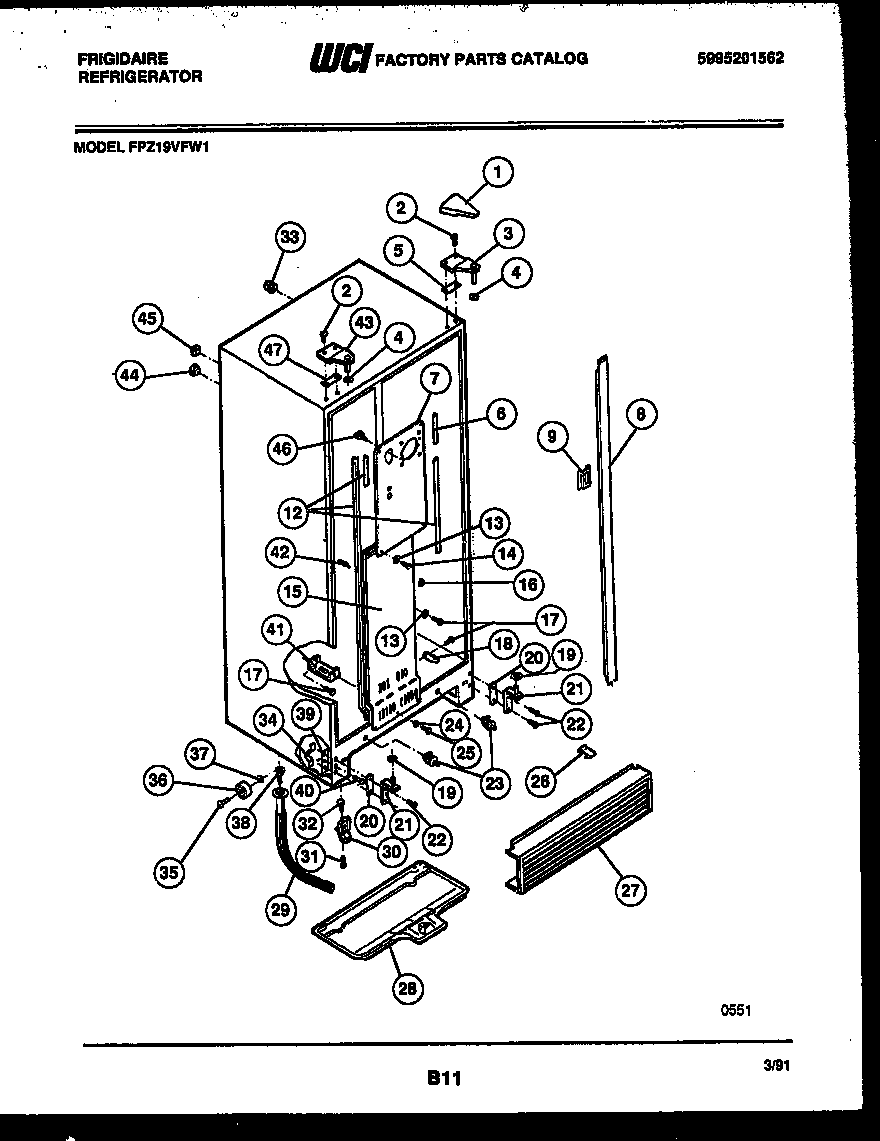

FPZ19VFL1 04 – CABINET PARTS

Products

Position	Product
*41687	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
*41687	PLUG, BUTTON, CABINET LINER (NI)
1	COVER-UPPER HINGE, ALMOND
2	241710601 Frigidaire Refrigerator Screw
3	WCI 5308012934
4	WCI 5308000186
6	WCI 5303001219
7	WCI 5303006543
7B	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
7A	PLUG-DECORATIVE, ICE MAKER HOLE
8	WCI 5303916448
9	WCI 5300169100
9A	WCI 5303001281
12	WCI 5303001233
13	WASHER-NYLON,3/16 X 5/8 OD
15A	5303208309 Frigidaire Refrigerator Plug Hole
15	COVER-COIL LOWER
16	WCI 5303001231
17	5304455650 Frigidaire Refrigerator Screw
18	DAMPER, MEAT KEEPER
19	WASHER, .28 X .62 X .19, NYLON
20	SHIM-BTM HINGE (3)
21	HINGE-BOTTOM
22	SCREW-HINGE MTG (2) (NON-ILLUSTRATED)
23	5303289051 Frigidaire Refrigerator Light Switch
24	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
25	WCI 5303001230
26	CLIP-GRILLE
27	WCI 5303016726
28	WCI 5308000086
29	WCI 5303209723
30	ROLLER-FRONT (2)
31	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
32	SCREW-ROLLER ADJ (2) (NON-ILLUSTRATED)
33	TUBE-RUBBER
34	WCI 5300077210
35	WCI 5308000266
36	WCI 5303601030
37	Nut,push-on
38	WCI 5308000853
39	WCI 5303001273
40	WCI 5308000013
41	WCI 5308000738
42	WCI 5303001250
43	WCI 5303001062
44	WCI 5303001286
45	WCI 5303001287
46	SUPPORT-COIL COVER
47	SHIM – UPPER HINGE
