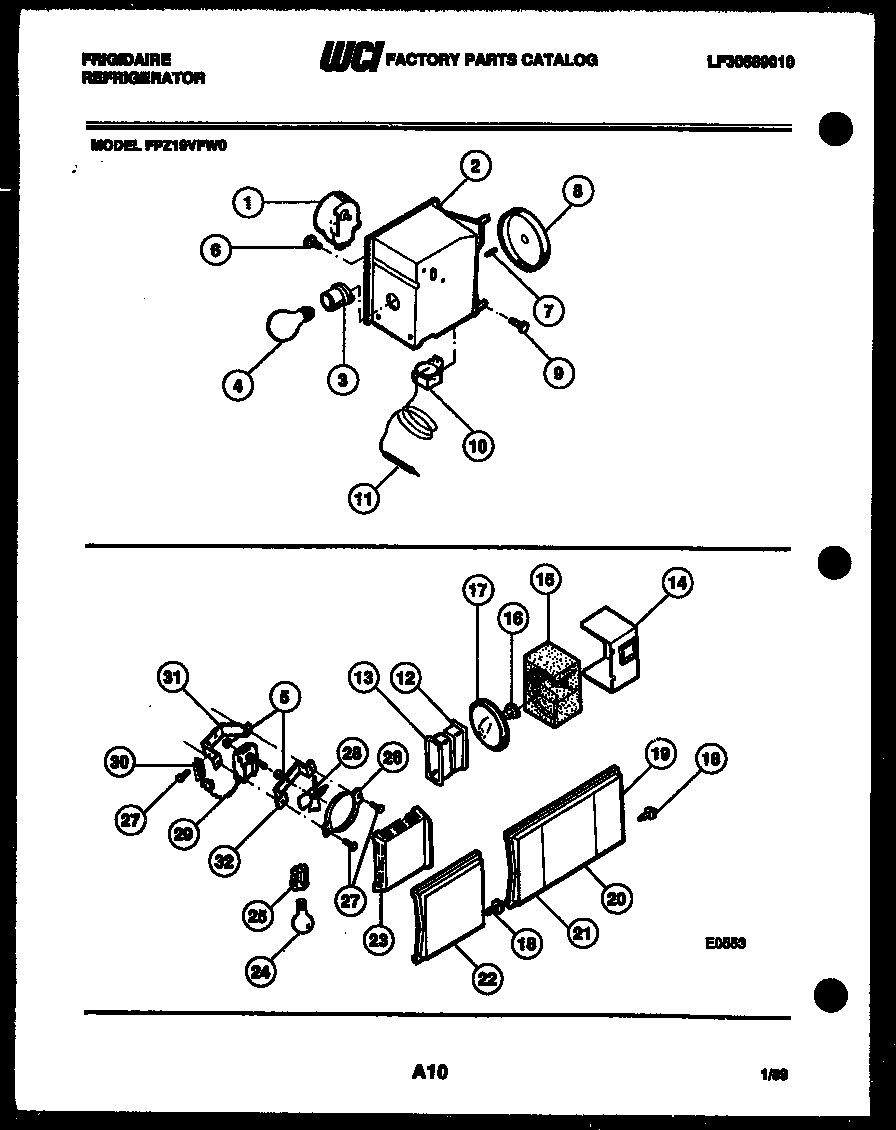

FPZ19VFW0 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

FPZ19VFW0 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Written by

in

FPZ19VFW0 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Products

PositionProduct
1215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
2WCI 08017561
3WCI 08000129
5G187559 Frigidaire Refrigerator Bushing
65304455852 Frigidaire Refrigerator Screw
7WCI 08000009
8WCI 08010380
95304455649 Frigidaire Refrigerator Screw
10WCI 08000068
11TUBE
12WCI 08000811
13WCI 08000810
14WCI 008000770
15WCI 008000771
16WCI 08013429
17WCI 08010379
18WCI 08000097
19LABEL-REF LIGHT SHLD, RH (NON-ILLUSTRATED)
20WCI 08009992
21LABEL-REF LIGHT SHLD, LH (NON-ILLUSTRATED)
22LIGHT SHIELD-FREEZER
23WCI 08000777
24316538904 Frigidaire Oven Lamp Light
25218906802 Frigidaire Light Lamp Socket
26WCI 08000124
275304455650 Frigidaire Refrigerator Screw
285308000010 Frigidaire Refrigerator Evaporator Fan Blade
295300158289 Frigidaire Evaporator Fan Motor
30WCI 08000107
31WCI 08000042
32WCI 08000043
