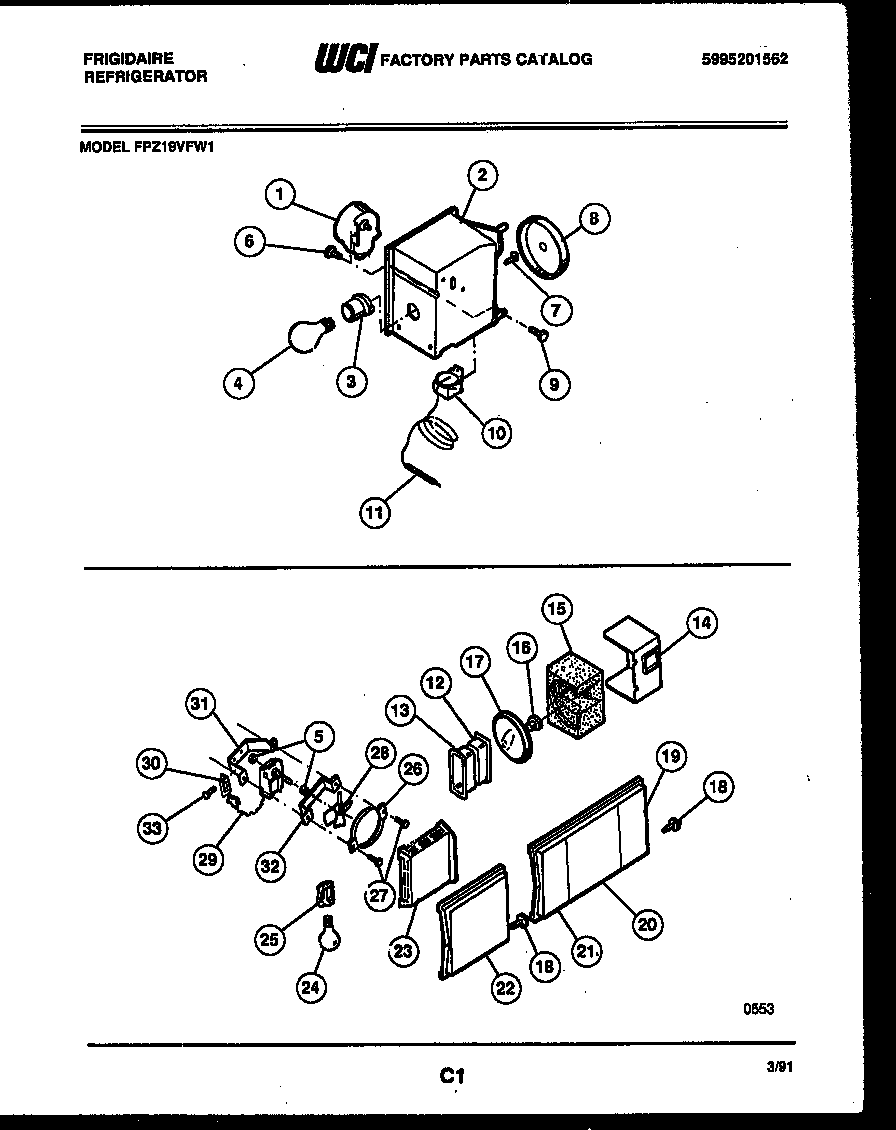

FPZ19VFW1 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Products

PositionProduct
1215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
2WCI 5308017561
3SOCKET-LIGHT/LAMP
5WCI 5300157606
65304455649 Frigidaire Refrigerator Screw
7WCI 5303001268
8WCI 5308010380
95304455852 Frigidaire Refrigerator Screw
10WCI 5308000068
11TUBE
12WCI 5303001276
13WCI 5303001277
14WCI 5303211383
15WCI 5308000771
16WCI 5300185373
17WCI 5308010379
18WCI 5303001213
19LABEL-REF LIGHT SHLD, RH (NON-ILLUSTRATED)
20WCI 53032712664
21LABEL-REF LIGHT SHLD, LH (NON-ILLUSTRATED)
22LIGHT SHIELD-FREEZER
23WCI 5316465401
24316538904 Frigidaire Oven Lamp Light
25218906802 Frigidaire Light Lamp Socket
26RING-FAN ORIFICE
285308000010 Frigidaire Refrigerator Evaporator Fan Blade
295300158289 Frigidaire Evaporator Fan Motor
30WCI 5308000107
31BRACKET-MOTOR MTG, REAR
32WCI 5303001226
335304455651 Frigidaire Refrigerator Screw
