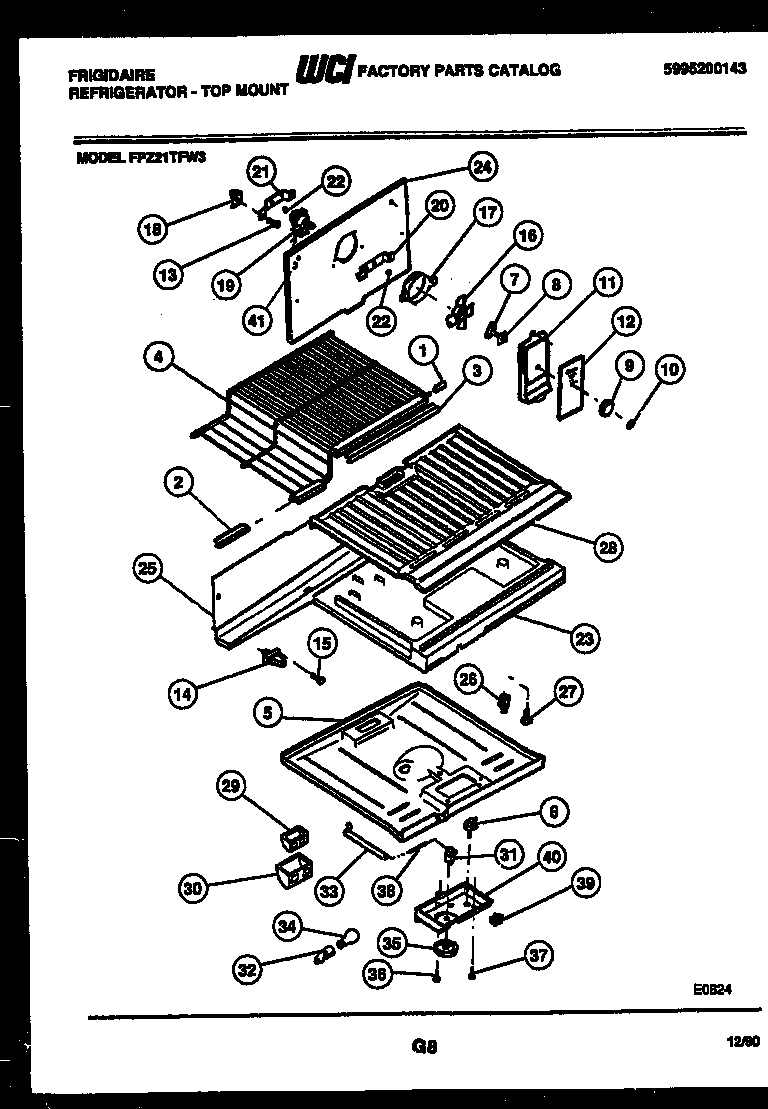

FPZ21TFH3 04 – SHELVES AND SUPPORTS

Products

Position	Product
1	END CAP-SHELF,PROTECTOR
2	TRIM-SHELF-FREEZER
3	WCI 3017428
4	WCI 0803661
5	WCI 3019038
6	215846604 Frigidaire Refrigerator Defrost Timer
7	DAMPER-FAN COVER
8	Nut,push-on
9	KNOB, DAMPER
10	LABEL, KNOB
11	WCI 08009825
12	WCI 08009934
13	5304455651 Frigidaire Refrigerator Screw
14	WCI 5308000056
15	5303208309 Frigidaire Refrigerator Plug Hole
16	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
16A	WCI 5303001361
17	RING-FAN ORIFICE
18	WCI 5308000107
19	5300158289 Frigidaire Evaporator Fan Motor
20	WCI 5303001226
21	BRACKET-MOTOR MTG, REAR
22	G187559 Frigidaire Refrigerator Bushing
23	WCI 5303019039
24A	5303001449 Frigidaire Refrigerator Seal
24C	5304455650 Frigidaire Refrigerator Screw
24	COVER, COIL
24B	EXTENSION, AIR DEFLECTOR, WITH INSULATION
25	WCI 5303001470
26	5309918806 Frigidaire Refrigerator Light Switch Door
27	WCI 5303001380
28	BOTTOM, FREEZER
29	DEFLECTRO, AIR, W/SEAL
30A	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
30	WCI 5303001448
31	WCI 5303018894
32	218906802 Frigidaire Light Lamp Socket
33	WCI 3018891
34	316538904 Frigidaire Oven Lamp Light
35	KNOB, TEMP CONTROL
36	WCI 5303001260
37	5304455649 Frigidaire Refrigerator Screw
38	TUBE
39	WCI 5303018896
40	CONTROL BOX
41	BUTTON – DECORATIVE PLUG
