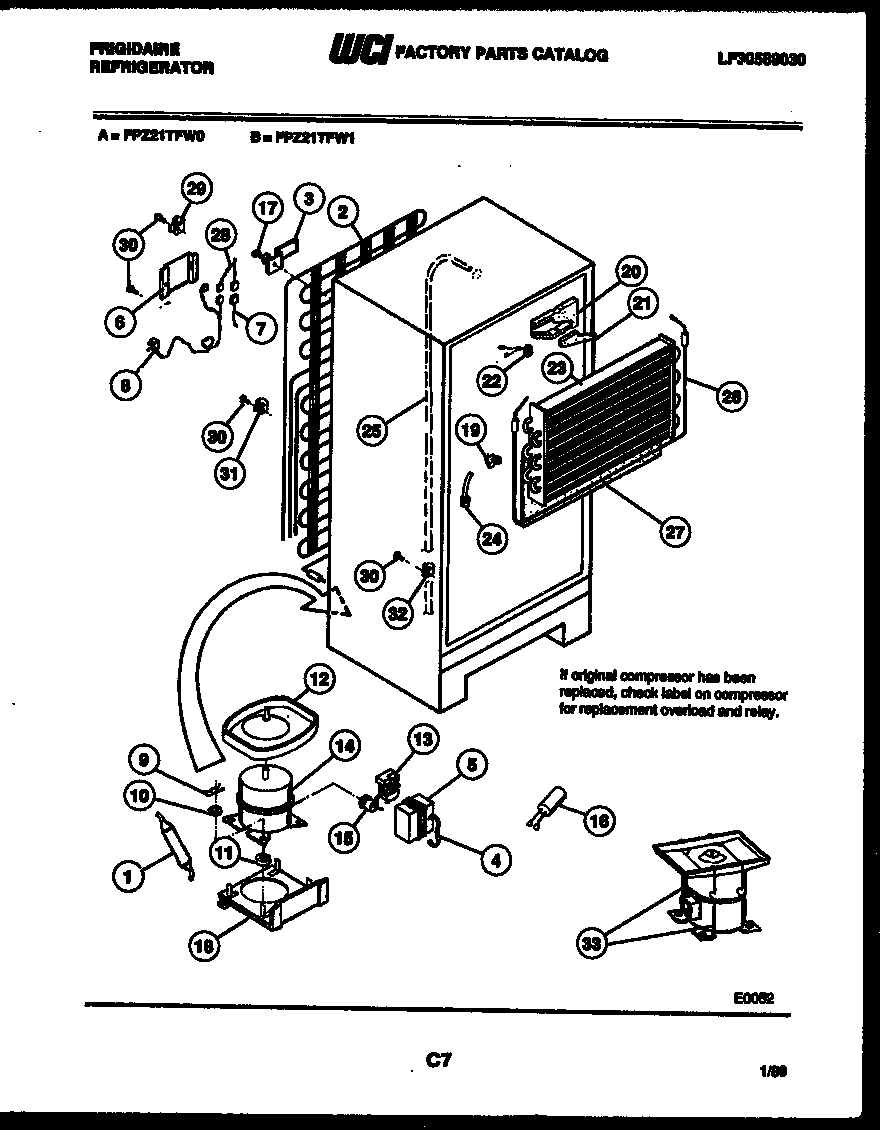

FPZ21TFW0 06 – SYSTEM AND AUTOMATIC DEFROST PARTS

FPZ21TFW0 06 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

FPZ21TFW0 06 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*566335303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
*56637WCI 09960001
15303305677 Frigidaire Replacement Filter Dryer Filters
2WCI 08000094
3WCI 08003600
45303006412 Frigidaire Refrigerator Cover Mounting Strap
5WCI 08006982
6WCI 08013644
7WCI 08009628
8WCI 08000064
9CLIP (4)
10WCI 08003597
11218513300 Frigidaire Refrigerator Compressor Mount Grommet
12WCI 3001397
13WCI 08017226
14COMPR W/ ELECT
15WCI 08017532
16CAPACITOR-RUN
175308000039 Frigidaire Refrigerator Screw
18WCI 08013663
19WCI 08017227
20WCI 08013648
21WCI 08013646
225303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
23WCI 08000062
245308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
25WCI 08010274
265317842502 Frigidaire Defrost Heater
27INSULATOR
28HARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
29WCI 08000187
305304455651 Frigidaire Refrigerator Screw
315303001199 Frigidaire Refrigerator Wiring Harness Clamp
32240396801 Frigidaire Refrigerator Tube Clamp
33PAN RETAINER KIT-SERVICE
