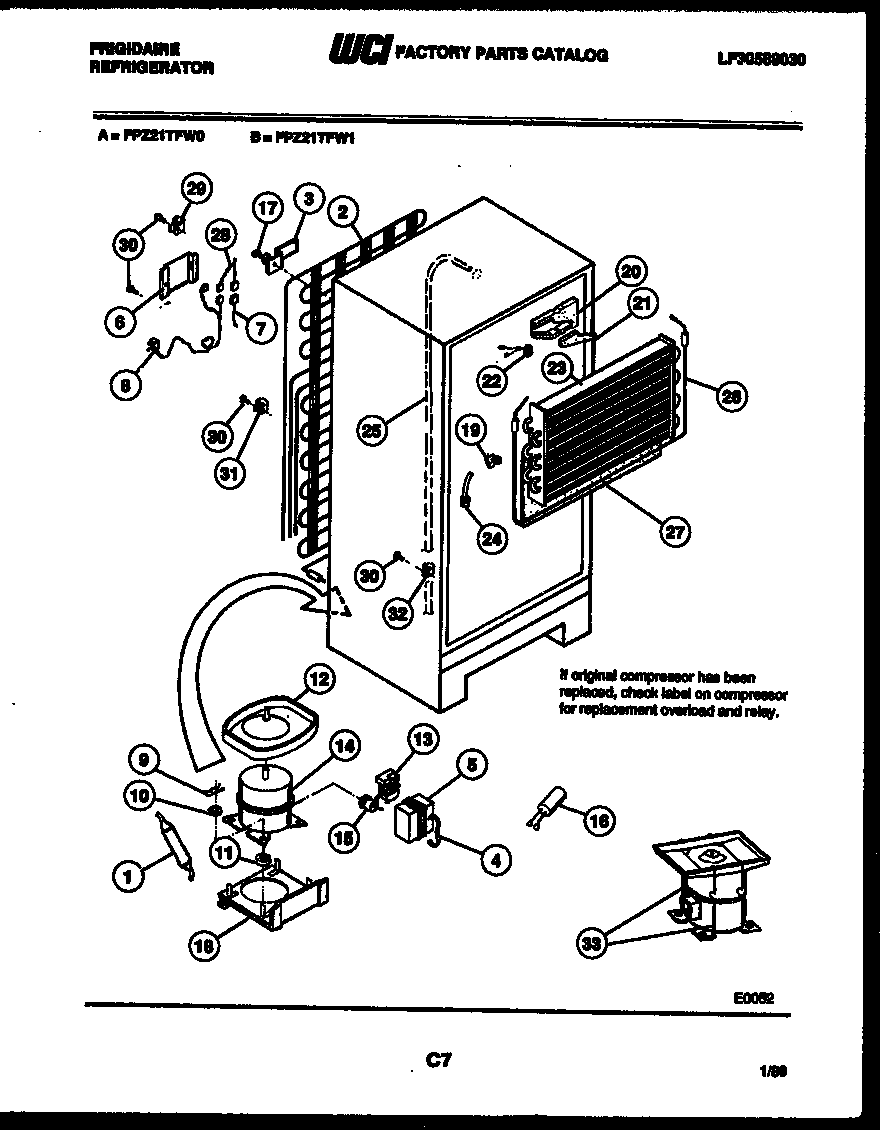

FPZ21TFW1 06 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*56637	WCI 09960001
*56633	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
1	5303305677 Frigidaire Replacement Filter Dryer Filters
2	WCI 08000094
3	WCI 08003600
4	WCI 3200713
5	WCI 08016583
6	WCI 08013644
7	WCI 08009628
8	WCI 08000064
9	CLIP (4)
10	WCI 08003597
11	218513300 Frigidaire Refrigerator Compressor Mount Grommet
12A	WCI 08003634
12	WCI 3001397
13	WCI 08017226
14	COMPR W/ ELECT
15A	WCI 3202891
15	WCI 3202863
16	CAPACITOR-RUN
17	5308000039 Frigidaire Refrigerator Screw
18	WCI 08013663
19	WCI 08017227
20	WCI 08013648
21	WCI 08013646
22	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
23	WCI 08000062
24	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
25	WCI 08010274
26	5317842502 Frigidaire Defrost Heater
27	INSULATOR
28	HARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
29	WCI 08000187
30	5304455651 Frigidaire Refrigerator Screw
31	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
32	240396801 Frigidaire Refrigerator Tube Clamp
33	PAN RETAINER KIT-SERVICE
