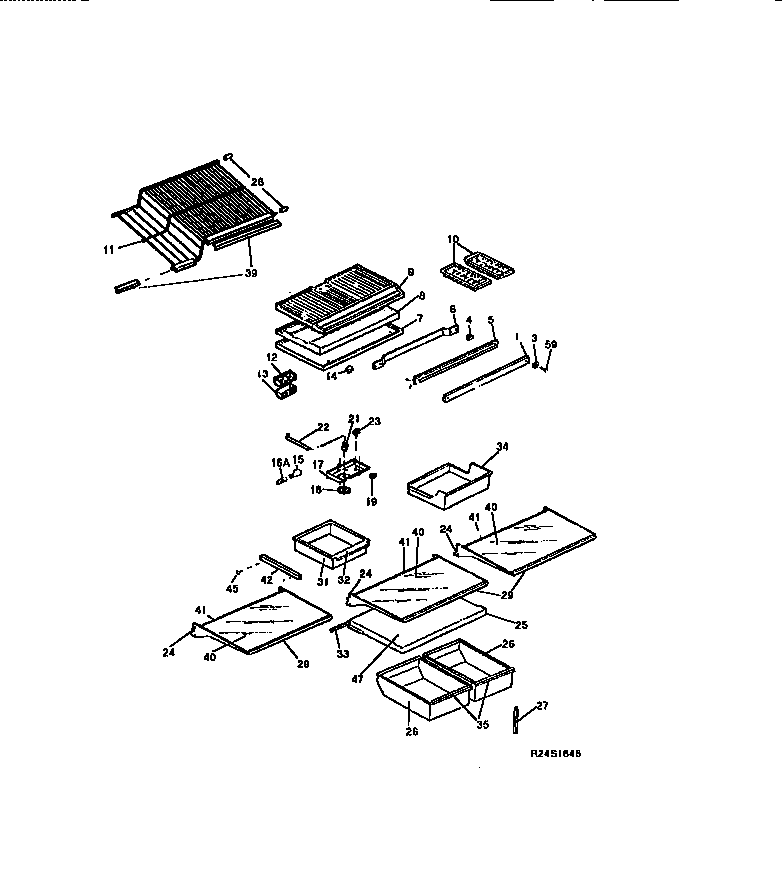

FPZ21TRL0 04 – SHELVES

FPZ21TRL0 04 – SHELVES

Written by

in

FPZ21TRL0 04 – SHELVES

Products

PositionProduct
*72283CLIP-CANTILEVER SHLF
*72282LOCK-SHELF TRIM, REAR
*722855304455650 Frigidaire Refrigerator Screw
1WCI 5303200370
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7WCI 5303001380
7WCI 3019038
83205266 Frigidaire Refrigerator Edge Protector
8WCI 5303019039
8HARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
9BOTTOM, FREEZER
10WCI 01121808
11WCI 3019033
12DEFLECTRO, AIR, W/SEAL
125303001449 Frigidaire Refrigerator Seal
13EXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17CONTROL BOX
18KNOB, TEMP CONTROL
19WCI 5303018896
21WCI 5303018894
21WCI 5303001260
22WCI 3018891
235304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24FRAME, MEAT KPR SHLF, CANTILEVER
24FRAME-FULL SHELF, CANTILEVER, (2)
25WCI 5303019035
25WCI 3018984
26PAN, CRISPER, RH
26PAN, CRISPER, LH
27SUPPORT, COVER
28END CAP-SHELF,PROTECTOR
29WCI 5303272820
29WCI 5303209274
31WCI 3018987
32WCI 5303272530
33GASKET-CRISPER COVER (NON-ILLUSTRATED)
345303212918 Frigidaire Refrigerator Cont
35TRIM, CRISPER PAN, LH
35TRIM, CRISPER PAN, RH
39TRIM-FRZR SHELF, SMALL
39WCI 5303272796
40SHELF-GLASS, FULL SHELF
41WCI 5303210045
42HANGER-PAN LH
42HANGER-PAN RH (NON-ILLUSTRATED)
45WCI 08014528
47WCI 5303211968
59WCI 5308012258
