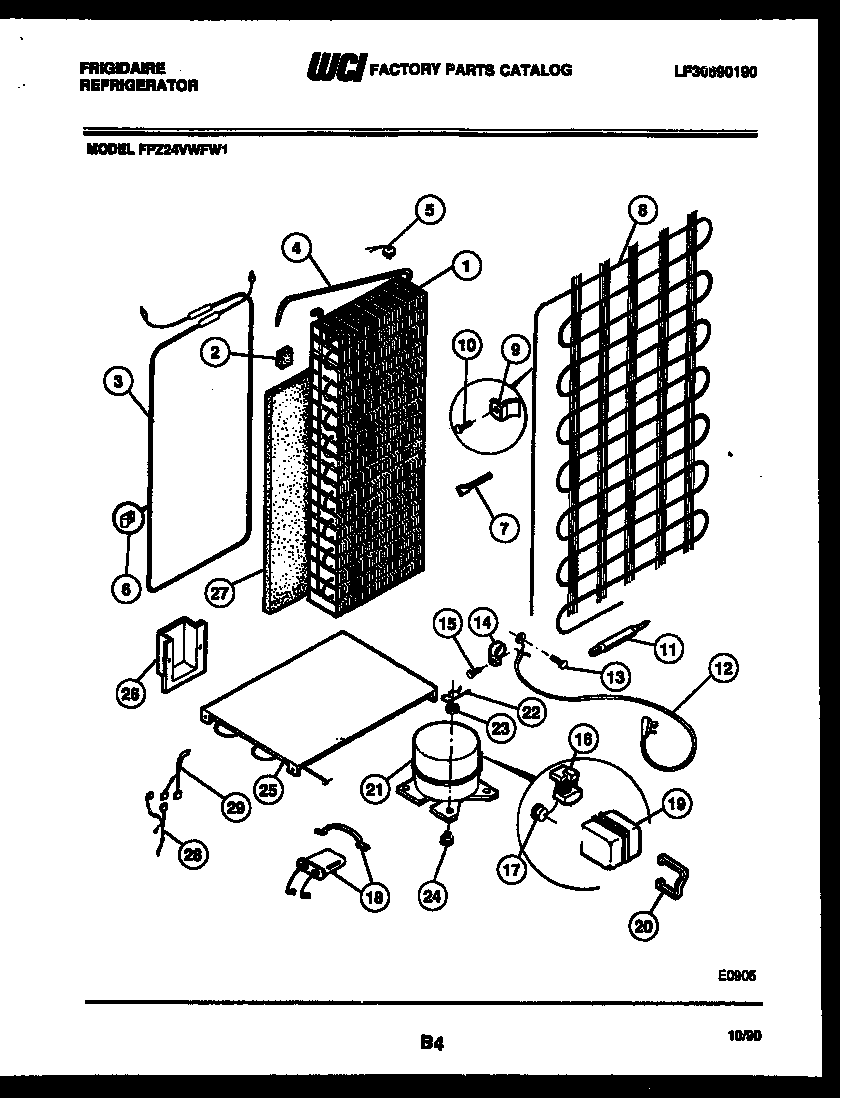

FPZ24VWFA1 10 – SYSTEM AND AUTOMATIC DEFROST PARTS

FPZ24VWFA1 10 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

FPZ24VWFA1 10 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*376705308000133 Frigidaire Refrigerator Clamp
*37670WCI 5300189379
1WCI 5303916605
2WCI 5308000828
3WCI 5303007568
4WCI 5308017565
55303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
6WCI 5308002777
75308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
8WCI 5308017119
9BRACKET, MOUNTIN, CONDENSER, (4)
105308000039 Frigidaire Refrigerator Screw
115303305677 Frigidaire Replacement Filter Dryer Filters
12CORD-ELECTRIC POWER
145303001199 Frigidaire Refrigerator Wiring Harness Clamp
155304455651 Frigidaire Refrigerator Screw
16RELAY-TL
17WCI 5308017526
18CAPACITOR
205303006412 Frigidaire Refrigerator Cover Mounting Strap
21COMPRESSOR WITH ELECTRICALS
22CLIP – COMPRESSOR MTG
23WASHER-COMPR MTG
24218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 5308017118
25C218843801 Frigidaire Refrigerator Screw
25AWCI 5308002782
25BWCI 5308002780
26WCI 5303001197
27WCI 5303001235
28WCI 5308009616
29WCI 5303015098
