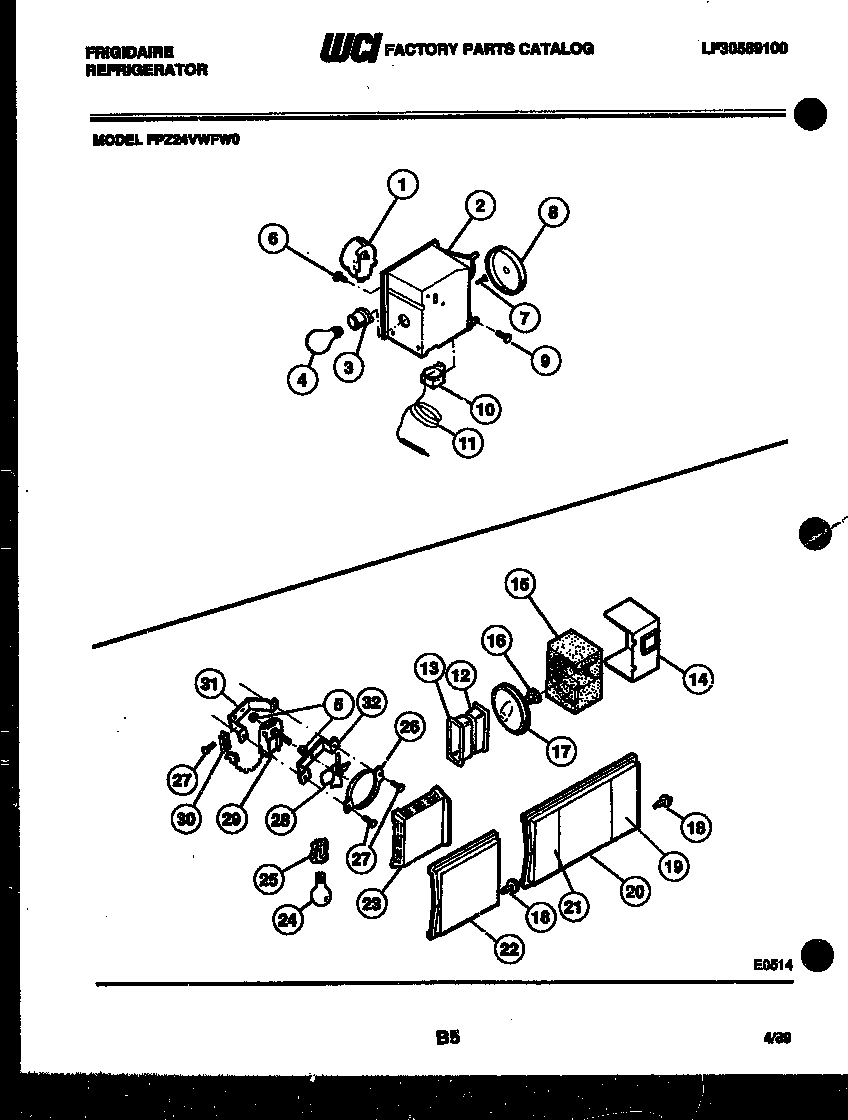

FPZ24VWFF0 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Written by

Products

Position	Product
1	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
2	WCI 08017561
2A	WCI 08009620
3	WCI 08000129
5	G187559 Frigidaire Refrigerator Bushing
6	5304455852 Frigidaire Refrigerator Screw
7	WCI 08000009
8	WCI 08010380
9	5304455649 Frigidaire Refrigerator Screw
10	WCI 08017445
11	TUBE
12	WCI 08000811
13	WCI 08000810
13A	WCI 08009630
14	WCI 08000770
15	WCI 08000771
16	WCI 08013429
17	WCI 08010379
18	WCI 08002732
19	LABEL-SHIELD RH
20	WCI 08017596
21	LABEL-SHIELD LH
22	WCI 08010364
23	WCI 08015764
24	316538904 Frigidaire Oven Lamp Light
25	218906802 Frigidaire Light Lamp Socket
26	WCI 08000124
27	218843801 Frigidaire Refrigerator Screw
28	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
29	5300158289 Frigidaire Evaporator Fan Motor
30	WCI 08000107
31	WCI 08000042
32	WCI 08000043
