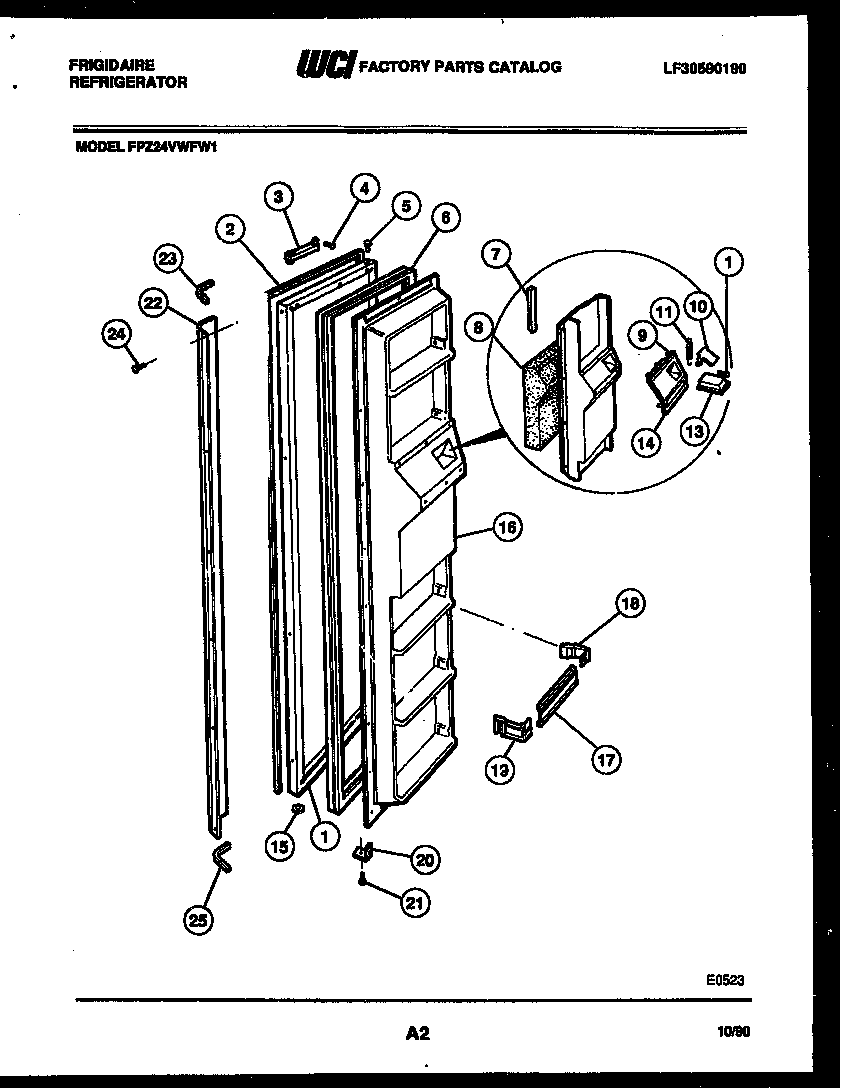

FPZ24VWFF1 02 – FREEZER DOOR PARTS

Products

Position	Product
*37652	INSULATION-BULK (NON-ILLUSTRATED)
1	WCI 08017636
1A	WCI 5315230801
2	WCI 5303200715
3	WCI 5303200272
4	WCI 3001020
5	WCI 5303001022
6	WCI 5303200717
7	WCI 5303001046
8	WCI 5308017045
9	WCI 5303001048
10	WCI 5303017828
11	SPRING-FLIPPER
12	5304455650 Frigidaire Refrigerator Screw
13	WCI 5303209287
14	WCI 5303017830
14A	NUT, SELF-THREADING, 1/8
15A	WCI 5308000839
15	BUSHING-LOWER HINGE
16	WCI 3200762
17	WCI 5303206712
18	SUPPORT-DOOR RACK, RH, (6)
19	SUPPORT-DOOR RACK, LH, (6)
20	WCI 5308000790
21	218843801 Frigidaire Refrigerator Screw
22	HANDLE ASSY
23	END CAP-BOTTOM (2)
24	SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
25	WCI 5308010239
