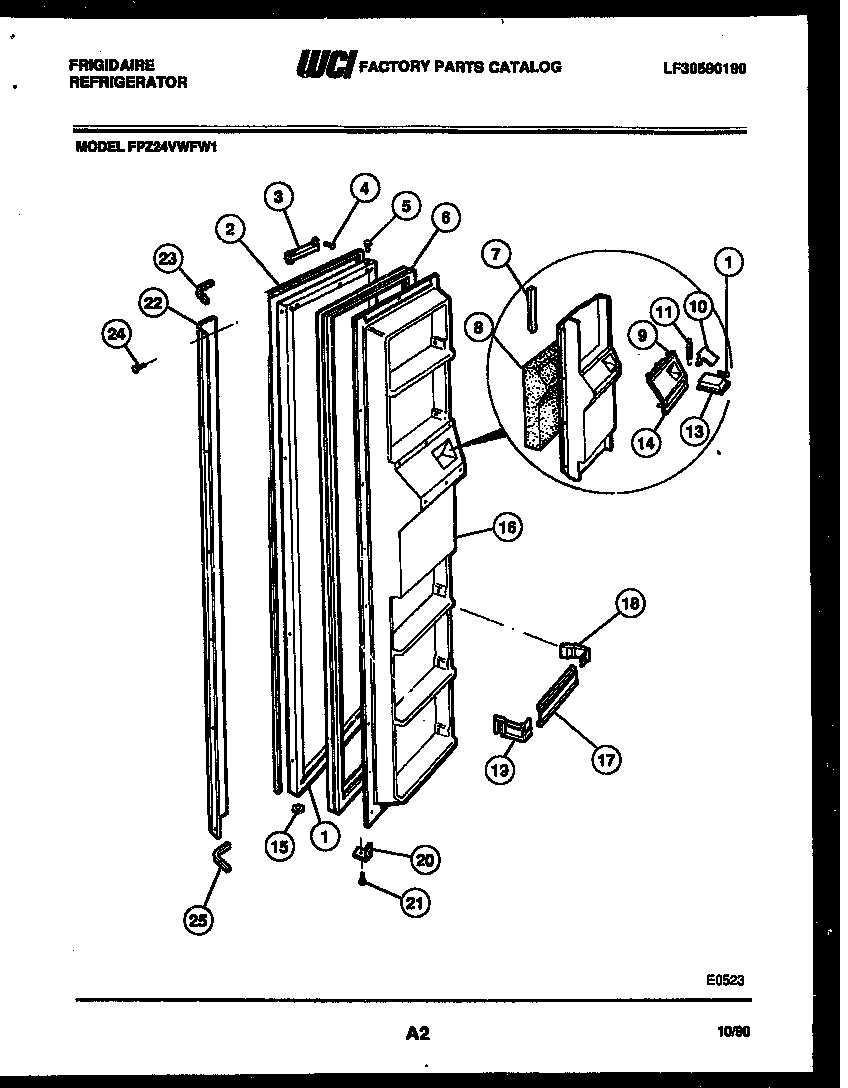

FPZ24VWFL1 02 – FREEZER DOOR PARTS

FPZ24VWFL1 02 – FREEZER DOOR PARTS

Written by

in

FPZ24VWFL1 02 – FREEZER DOOR PARTS

Products

PositionProduct
*37652INSULATION-BULK (NON-ILLUSTRATED)
1WCI 5308017637
1AWCI 5315230801
2WCI 5303200715
3WCI 5303200272
4WCI 3001020
5WCI 5303001022
6WCI 5303200717
7WCI 5303001046
8WCI 5308017045
9WCI 5303001048
10WCI 5303017828
11SPRING-FLIPPER
125304455650 Frigidaire Refrigerator Screw
13WCI 5303209287
14WCI 5303017830
14ANUT, SELF-THREADING, 1/8
15AWCI 5308000839
15BUSHING-LOWER HINGE
16WCI 3200762
17WCI 5303206712
18SUPPORT-DOOR RACK, RH, (6)
19SUPPORT-DOOR RACK, LH, (6)
20WCI 5308000790
21218843801 Frigidaire Refrigerator Screw
22HANDLE ASSY
23END CAP-BOTTOM (2)
24SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
25WCI 5308010239
