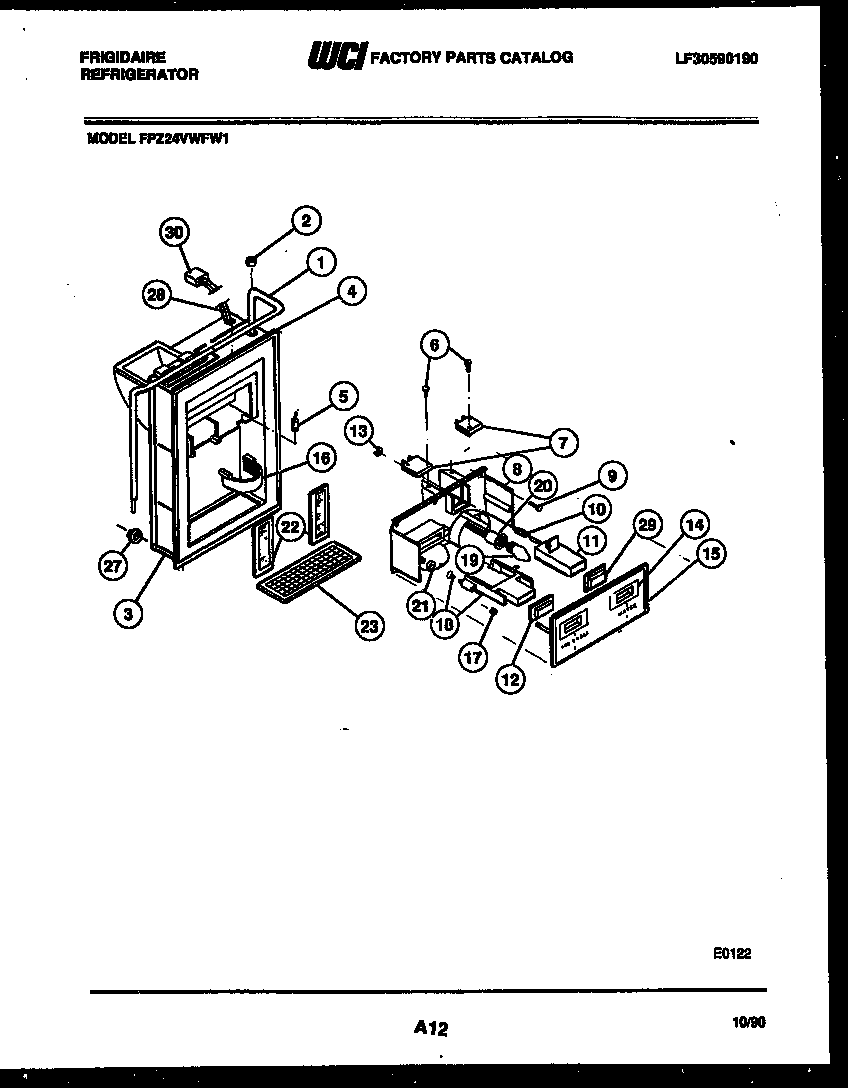

FPZ24VWFW1 07 – ICE DOOR, DISPENSER AND WATER TANKS

Products

Position	Product
*37664	WCI 5318653301
1	TUBE-WATER INLET & PILOT ASSY
2	WCI 5303001066
3	WCI 5308015588
4	WCI 5303211409
5	WCI 5308010326
6	SCREW (4)
7	WCI 5303001078
8	PLATE-SWITCH MTG
9	SCREW (4)
10	SPRING-WATER ACTUATOR
11	WCI 5303001077
12	WCI 5308012816
13	WCI 5302832214
14	WCI 5308015599
15	WCI 5308015587
16	WCI 5318000402
17	WCI 5303001081
18	ACTUATOR & CUP ASSY-ICE
19	WCI 5304506475
20	SOCKET-LIGHT BULB
21	WCI 5303001074
22	PAD-FILL (2)
23	WCI 5303208845
27	NUT, SELF-THREADING, 1/8
28	WCI 5303001082
29	WCI 5308012815
30	PLUG-HARNESS BOTTOM
