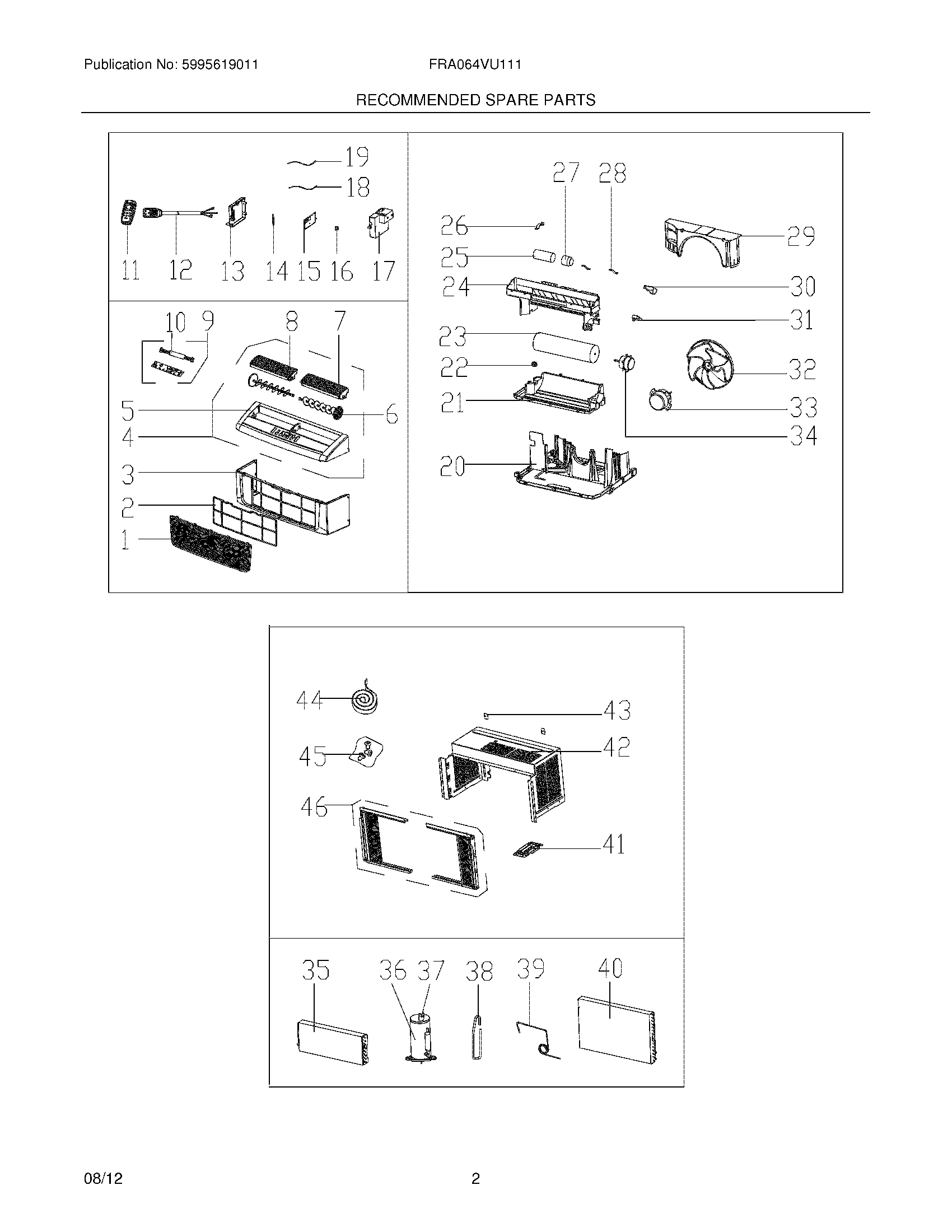

FRA064VU111 03 – RECOMMENDED SPARE PARTSadmin2025-04-26T08:42:28+00:00FRA064VU111 03 – RECOMMENDED SPARE PARTS
Products
| Position | Product |
|---|
| 1 | PANEL, FRONT GRILLE |
| 2 | FILTER, AIR, PLASTIC FRAME |
| 3 | FRAME, FRONT, BOTTOM |
| 4 | FRAME ASSEMBLY, FRONT ASSEMBLY, TOP |
| 5 | PANEL, FRAME, FRONT |
| 6 | LOUVER, VERTICAL, (4) |
| 7 | 5304483019 Frigidaire Louver |
| 8 | 5304483020 Frigidaire Louver |
| 9 | PC BOARD, DISPLAY/INPUT |
| 10 | · Wire,connector ,pc boards |
| 11 | 5304476802 Frigidaire Air Conditioner Remote Control |
| 12 | WCI 5304476515 |
| 13 | COVER, CONTROL BOX |
| 14 | TERMINAL, GROUND WIRE, LINK |
| 15 | WCI 5304476532 |
| 16 | 5304470989 Frigidaire Air Conditioner Transformer |
| 17 | BOX, CONTROL |
| 18 | 5304504724 Frigidaire Sensor |
| 19 | 5304471275 Frigidaire Air Conditioner Sensor |
| 20 | BASE, UNIT CHASSIS |
| 21 | SCROLL, BLOWER HOUSING, BOTTOM |
| 22 | HOLDER, BEARING |
| 23 | BLOWER WHEEL, CENTRIFUGAL FAN |
| 24 | SCROLL, BLOWER HOUSING, TOP |
| 25 | 5304476049 Frigidaire Capacitor |
| 26 | STRAP, CAPACITOR CLAMP |
| 27 | CAP, CAPACITOR, COMPRESSOR |
| 28 | BRACKET, MOTOR MOUNT, SCROLL TOP |
| 29 | SHROUD, CONDENSER/FAN |
| 30 | CAP, CAPACITOR, FAN MOTOR |
| 31 | CAPACITOR, FAN, MOTOR |
| 32 | FAN BLADE, AXIAL |
| 33 | MOTOR, FAN, EXHAUST |
| 34 | MOTOR, BLOWER |
| 35 | WCI 5304487547 |
| 36 | WCI 5304487549 |
| 37 | WCI 5304486057 |
| 38 | WCI 5304487550 |
| 39 | WCI 5304487551 |
| 40 | WCI 5304487552 |
| 41 | PLATFORM, UNIT SUPPORT, BRACKET |
| 42 | CABINET, WRAPPER/SLEEVE |
| 43 | WCI 5304476584 |
| 44 | Seal kit,foam ,sash filler |
| 45 | WCI 5304476516 |
| 46 | WCI 5304476517 |
