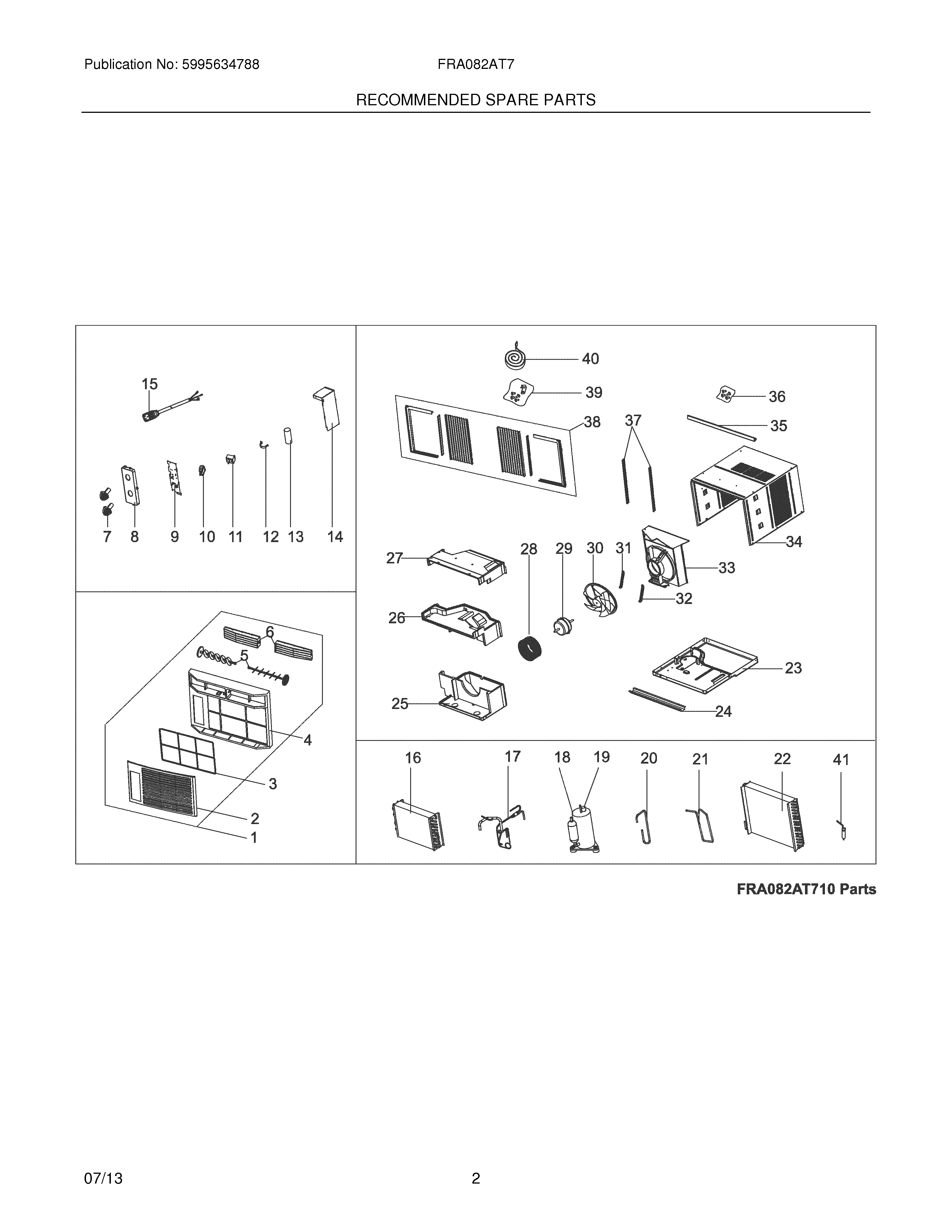

FRA082AT718 03 – RECOMMENDED SPARE PARTSadmin2025-04-26T08:42:44+00:00FRA082AT718 03 – RECOMMENDED SPARE PARTS
Products
| Position | Product |
|---|
| 1 | WCI 5304492076 |
| 2 | WCI 5304492077 |
| 3 | WCI 5304492078 |
| 4 | WCI 5304492079 |
| 5 | 5304492080 Frigidaire LOUVER |
| 6 | 5304492081 Frigidaire Louver Assembly |
| 7 | Knob Assembly,control ,w/spring |
| 8 | WCI 5304477135 |
| 9 | WCI 5304477053 |
| 10 | Sensor Assembly,temperature |
| 11 | Switch,master ,rotary |
| 12 | Strap,capacitor clamp |
| 13 | WCI 5304476003 |
| 14 | WCI 5304486035 |
| 15 | WCI 5304487573 |
| 16 | WCI 5304492106 |
| 17 | · Tube,capillary |
| 18 | 5304489721 Frigidaire Air Conditioner Compressor |
| 19 | 5304492022 Frigidaire Air Conditioner Overload Protector |
| 20 | Tube,suction |
| 21 | Tube,discharge |
| 22 | WCI 5304492025 |
| 23 | Base,unit chassis |
| 24 | WCI 5304483091 |
| 25 | WCI 5304476557 |
| 26 | WCI 5304486038 |
| 27 | WCI 5304486039 |
| 28 | WCI 5304476051 |
| 29 | WCI 5304476115 |
| 30 | 5304483089 Frigidaire Blade Fan |
| 31 | Support,motor mount ,left |
| 32 | Support,motor mount ,right |
| 33 | Shroud,condenser/fan |
| 34 | WCI 5304483093 |
| 35 | Rail,shutter track ,top |
| 36 | Screw Kit,top rail mount |
| 37 | WCI 5304476523 |
| 38 | WCI 5304476524 |
| 39 | 5304491953 Frigidaire Air Conditioner Hardware |
| 40 | Seal kit,foam ,sash filler |
| 41 | 5304476367 Frigidaire Air Conditioner Filter Drier |
