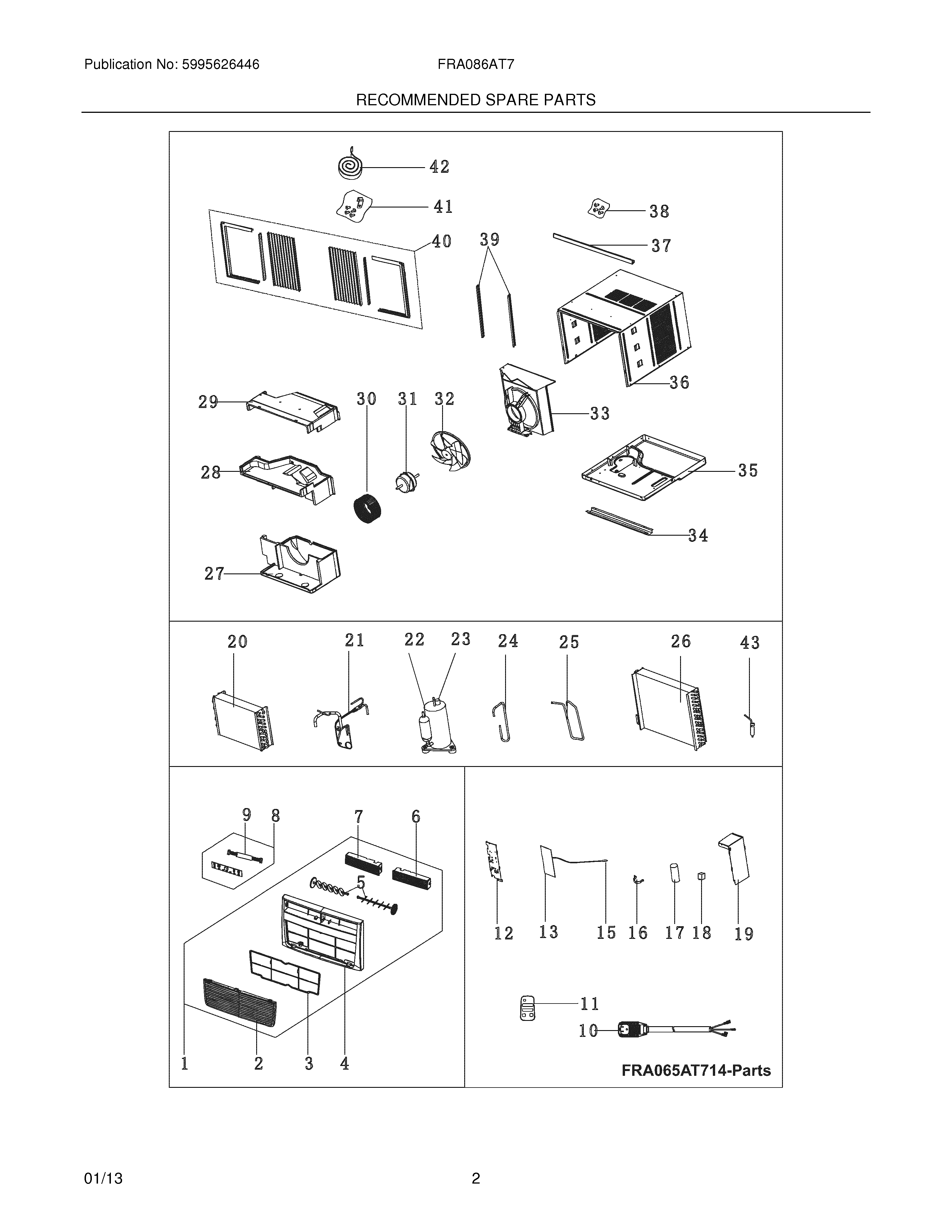

FRA086AT717 03 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	WCI 5304477085
2	Panel,front grille ,tilt-out
3	Filter,air ,plastic frame
4	WCI 5304477086
5	WCI 5304477050
6	5304477051 Frigidaire LOUVER
7	5304477052 Frigidaire LOUVER
8	WCI 5304476850
9	Wire,connecting
10	Power Cord,electric ,LCDI
11	5304476802 Frigidaire Air Conditioner Remote Control
12	WCI 5304477053
13	WCI 5304487534
15	5304504724 Frigidaire Sensor
16	Strap,capacitor clamp
17	WCI 5304476003
18	Ionizer,anion generator
19	WCI 5304486035
20	WCI 5304486056
21	Tube,capillary
22	WCI 5304483165
23	WCI 5304478089
24	WCI 5304476565
25	WCI 5304483176
26	WCI 5304486060
27	WCI 5304476557
28	WCI 5304486038
29	WCI 5304486039
30	Blower Wheel,centrifugal fan
31	WCI 5304486054
32	5304483089 Frigidaire Blade Fan
33	Shroud,condenser/fan
34	WCI 5304483091
35	WCI 5304483168
36	WCI 5304483093
37	Rail,shutter track ,top
38	Screw Kit,top rail mount
39	WCI 5304476523
40	WCI 5304476524
41	WCI 5304472192
42	Seal kit,foam ,sash filler
43	5304476201 Frigidaire Air Conditioner Filter Drier
