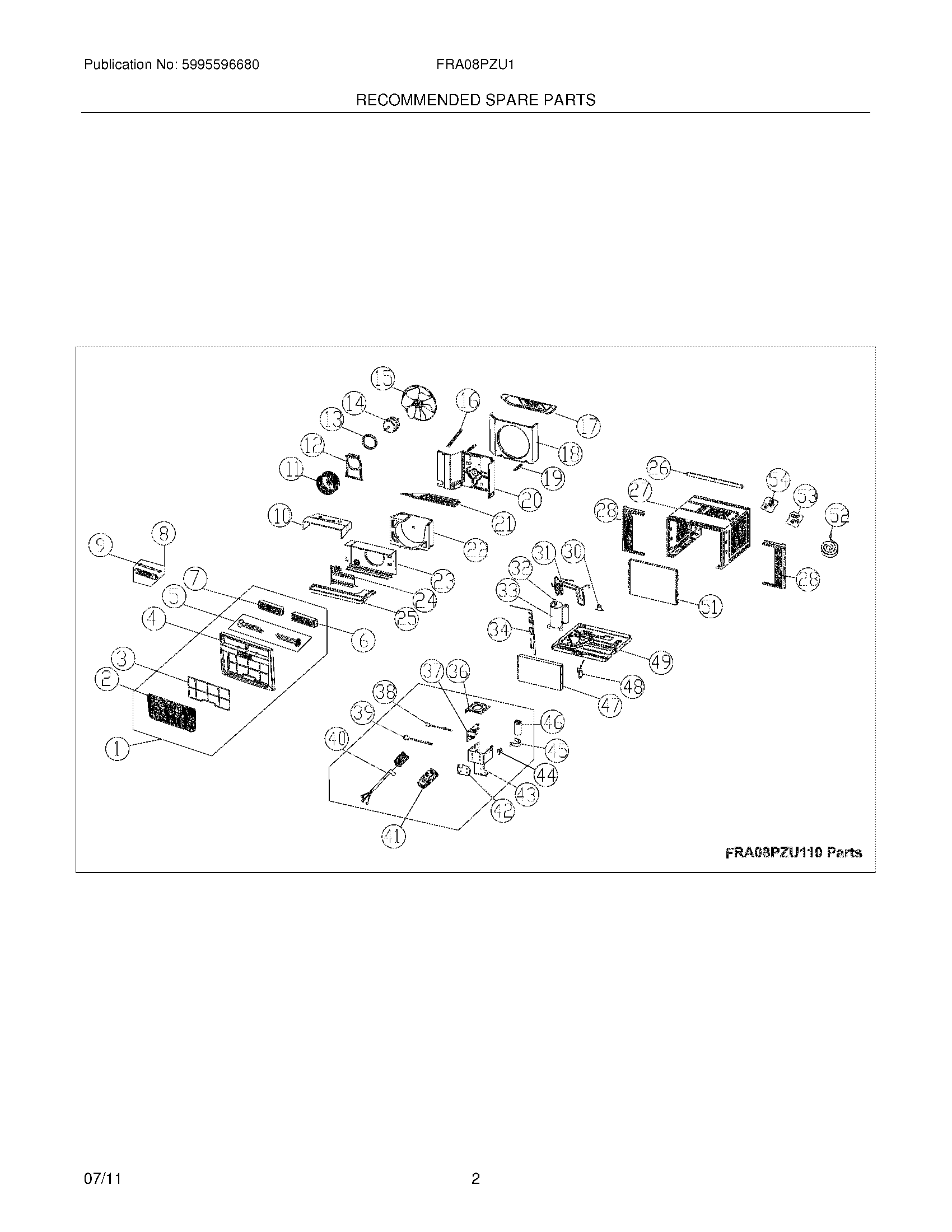

FRA08PZU110 03 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	Front Assembly,complete panel
2	Panel,front grill
3	5304535825 Frigidaire Air Filter
4	Ã‚Â· Frame,front assembly
5	5304483207 Frigidaire Louver
6	LOUVER, HORIZONTAL, RIGHT
7	LOUVER,HORIZONTAL,LEFT
8	WCI 5304482936
9	Wire,connector ,pc boards
10	WCI 5304483210
11	5304471312 Frigidaire Air Conditioner Blower Wheel
12	WCI 5304471285
13	WCI 5304471286
14	WCI 5304471284
15	5304471287 Frigidaire Air Conditioner Fan Blade
16	WCI 5304471254
17	WCI 5304471288
18	WCI 5304483211
19	WCI 5304471253
20	WCI 5304471248
21	WCI 5304476388
22	WCI 5304471301
23	WCI 5304476389
24	5304477339 Frigidaire Air Conditioner Heater
25	WCI 5304471265
26	WCI 5304482525
27	WCI 5304482526
28	WCI 5304471252
30	Valve,drain
31	WCI 5304483212
32	Overload Protector,compressor
33	WCI 5304476002
34	WCI 5304483213
36	WCI 5304483214
37	5304483215 Frigidaire Air Conditioner PC Board
38	5304483216 Frigidaire Air Conditioner Sensor
39	5304512375 Frigidaire Air Conditioner Sensor
40	WCI 5304476457
41	REMOTE CONTROL TRANSMITTER
42	WCI 5304483217
43	WCI 5304483218
44	5304470989 Frigidaire Air Conditioner Transformer
45	Strap,capacitor clamp
46	WCI 5304476003
47	WCI 5304483219
48	5304476367 Frigidaire Air Conditioner Filter Drier
49	WCI 5304483220
51	WCI 5304483221
52	Seal kit,window ,foam strips
53	WCI 5304471257
54	Screw Kit,top rail mount
