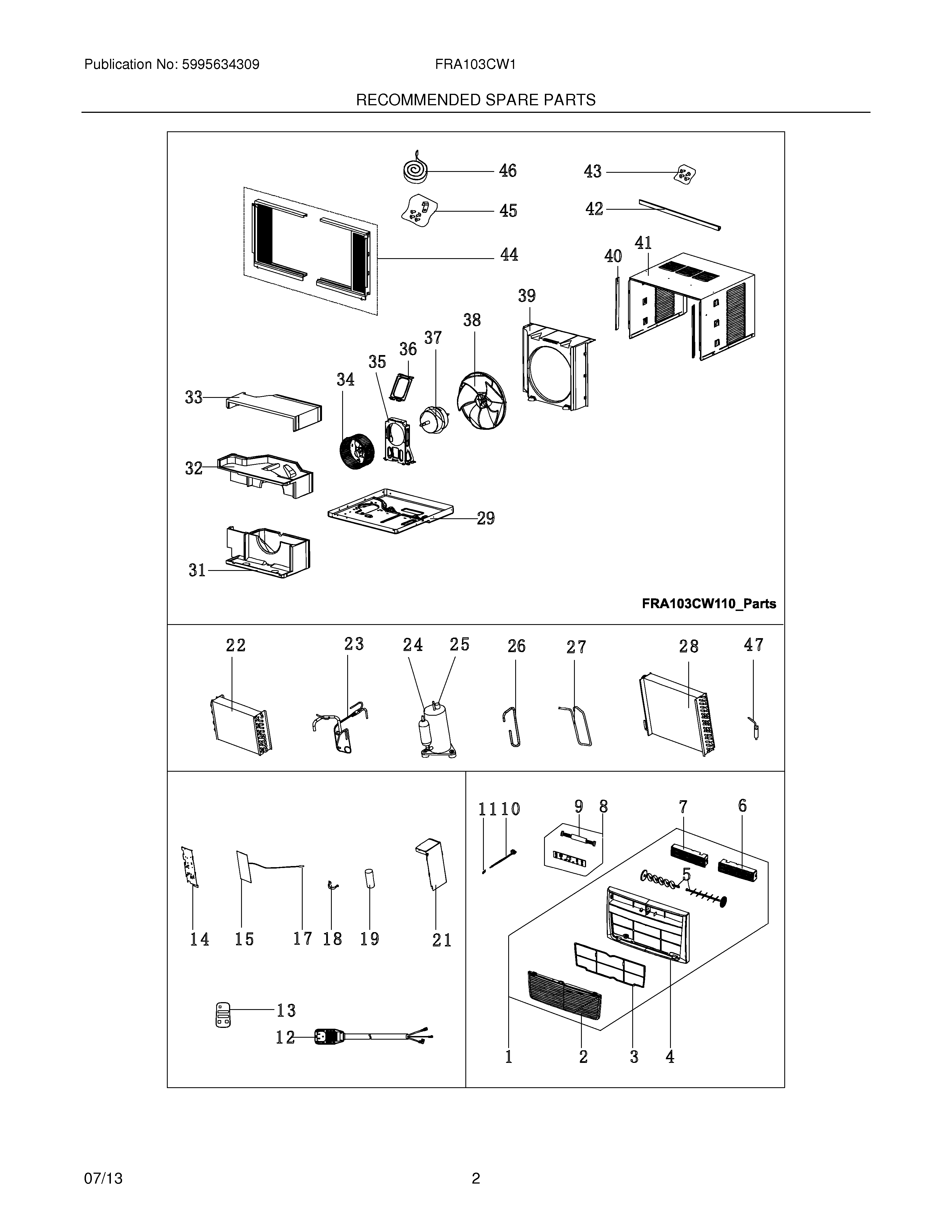

FRA103CW110 03 – RECOMMENDED SPARE PARTS

FRA103CW110 03 – RECOMMENDED SPARE PARTS

Written by

in

FRA103CW110 03 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1WCI 5304476848
25304476793 Frigidaire Air Conditioner Panel
35304535830 Frigidaire Filter
4WCI 5304476795
5WCI 5304476796
75304476798 Frigidaire Air Conditioner Louver
8PC Board,display/input
95304482356 Frigidaire Wire
105304476178 Frigidaire Air Conditioner Door Assembly
115304476179 Frigidaire Air Conditioner Sleeve
125304476180 Frigidaire Power Cord Air Conditioner
135304476802 Frigidaire Air Conditioner Remote Control
14Cover,control box
15WCI 5304487221
175304476053 Frigidaire Air Conditioner Sensor
18Strap,capacitor clamp
195304471294 Frigidaire CAPACITOR
21WCI 5304476225
22Evaporator,with ,capillary tube
23· Tube,capillary
24Compressor,with overload
25· Overload Protector,compressor
26Tube,suction
27Tube,discharge
28WCI 5304491952
29Base,unit chassis
31Scroll,blower housing ,bottom
32Scroll,blower housing ,middle
33Scroll,blower housing ,top
345304485443 Frigidaire Air Conditioner Blower Wheel
35Support,motor mount ,left
36Support,motor mount ,right
37Motor,fan
385304476059 Frigidaire Air Conditioner Fan Blade
39Shroud,condenser fan
40Retainer,shutter ,cabinet sides
41Cabinet,wrapper/sleeve
42WCI 5304476843
43Screw Kit,top rail mount
445304476200 Frigidaire Air Conditioner Window Filler Kit
455304491953 Frigidaire Air Conditioner Hardware
46Seal kit,foam ,sash filler
475304476201 Frigidaire Air Conditioner Filter Drier
