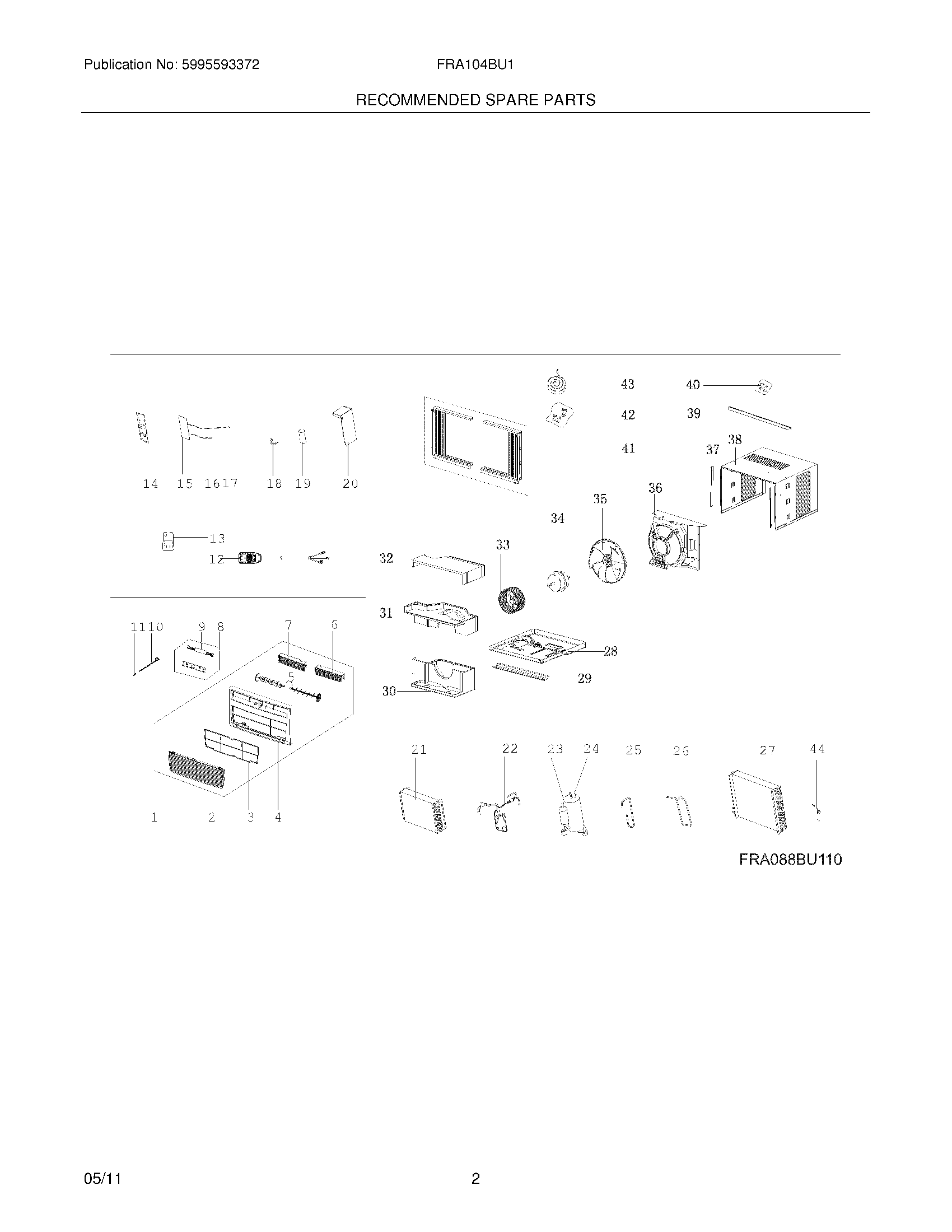

FRA104BU115 03 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	WCI 5304476841
2	5304476793 Frigidaire Air Conditioner Panel
3	5304535830 Frigidaire Filter
4	WCI 5304476842
5	WCI 5304476796
7	5304476798 Frigidaire Air Conditioner Louver
8	PC Board,display/input
9	5304482356 Frigidaire Wire
10	WCI 5304476800
11	WCI 5304476801
12	5304476180 Frigidaire Power Cord Air Conditioner
13	5304476802 Frigidaire Air Conditioner Remote Control
14	Cover,control box
15	WCI 5304476183
16	5304471275 Frigidaire Air Conditioner Sensor
17	5304476053 Frigidaire Air Conditioner Sensor
18	Strap,capacitor clamp
19	5304476066 Frigidaire Air Conditioner Capacitor
20	WCI 5304476767
21	WCI 5304482632
22	WCI 5304482633
23	COMPRESSOR
24	WCI 5304482635
25	WCI 5304482636
26	WCI 5304482637
27	WCI 5304482626
28	WCI 5304482638
29	WCI 5304476190
30	WCI 5304476776
31	WCI 5304476777
32	WCI 5304476778
33	WCI 5304476058
34	WCI 5304482622
35	5304476059 Frigidaire Air Conditioner Fan Blade
36	WCI 5304482617
37	Retainer,shutter ,cabinet sides
38	WCI 5304476805
39	Rail,shutter track ,top angle
40	Screw Kit,top rail mount
41	5304476200 Frigidaire Air Conditioner Window Filler Kit
42	WCI 5304472192
43	Seal kit,foam ,sash filler
44	5304476367 Frigidaire Air Conditioner Filter Drier
