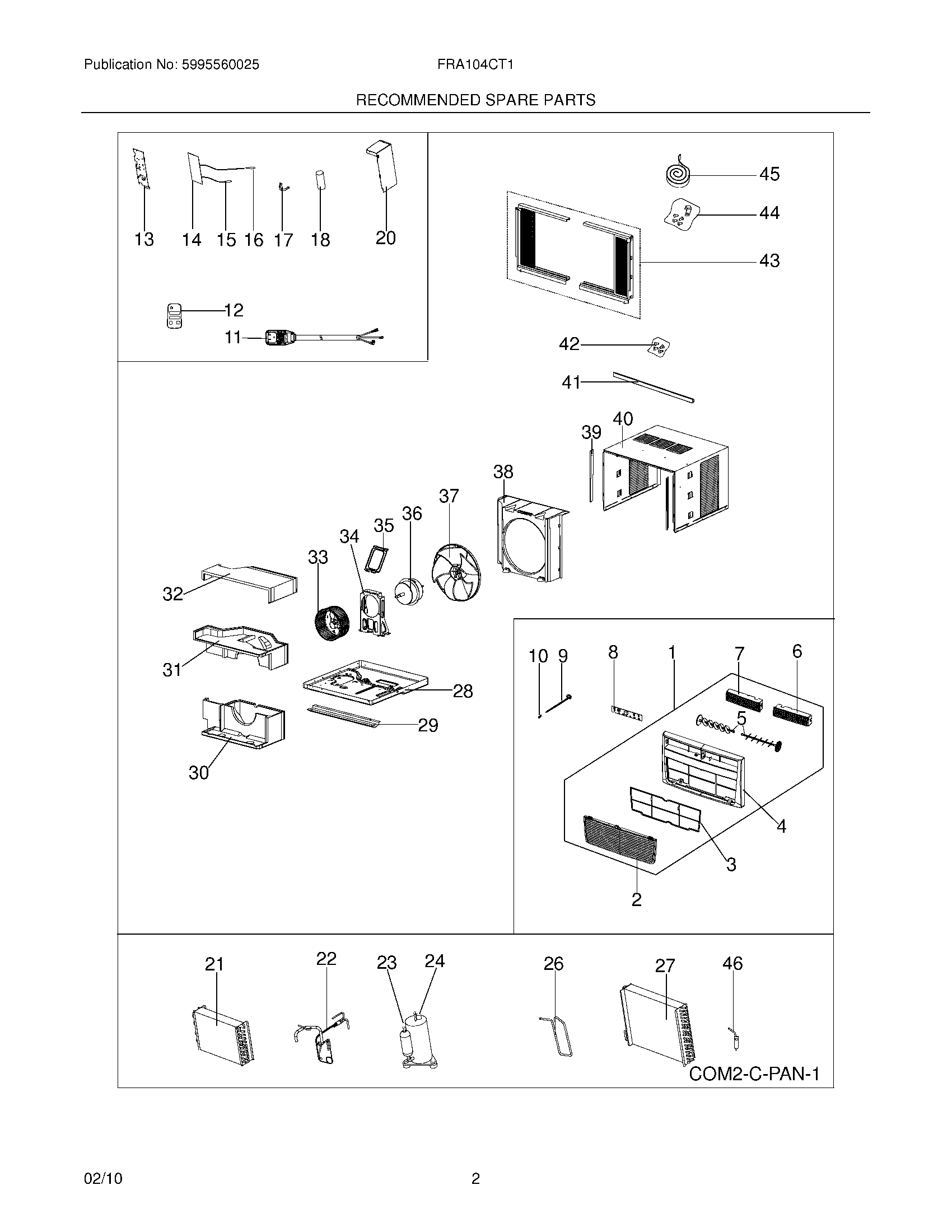

FRA104CT13 03 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	WCI 5304476841
2	5304476793 Frigidaire Air Conditioner Panel
3	5304535830 Frigidaire Filter
4	WCI 5304476842
5	WCI 5304476796
7	5304476798 Frigidaire Air Conditioner Louver
8	PC Board,display/input
9	5304476178 Frigidaire Air Conditioner Door Assembly
10	5304476179 Frigidaire Air Conditioner Sleeve
11	5304476180 Frigidaire Power Cord Air Conditioner
12	5304476802 Frigidaire Air Conditioner Remote Control
13	Cover,control box
14	WCI 5304476803
15	5304471275 Frigidaire Air Conditioner Sensor
16	5304476053 Frigidaire Air Conditioner Sensor
17	Strap,capacitor clamp
18	5304471294 Frigidaire CAPACITOR
20	WCI 5304476225
21	WCI 5304476223
22	WCI 5304476224
23	WCI 5304476062
24	WCI 5304476294
26	Tube,discharge
27	WCI 5304476188
28	WCI 5304476189
29	WCI 5304476190
30	WCI 5304476191
31	WCI 5304476192
32	WCI 5304476193
33	WCI 5304476058
34	Support,motor mount ,left
35	Support,motor mount ,right
36	WCI 5304476057
37	5304476059 Frigidaire Air Conditioner Fan Blade
38	WCI 5304476196
39	Retainer,shutter ,cabinet sides
40	Cabinet,wrapper/sleeve
41	WCI 5304476843
42	Screw Kit,top rail mount
43	5304476200 Frigidaire Air Conditioner Window Filler Kit
44	WCI 5304472192
45	Seal kit,foam ,sash filler
46	5304476201 Frigidaire Air Conditioner Filter Drier
