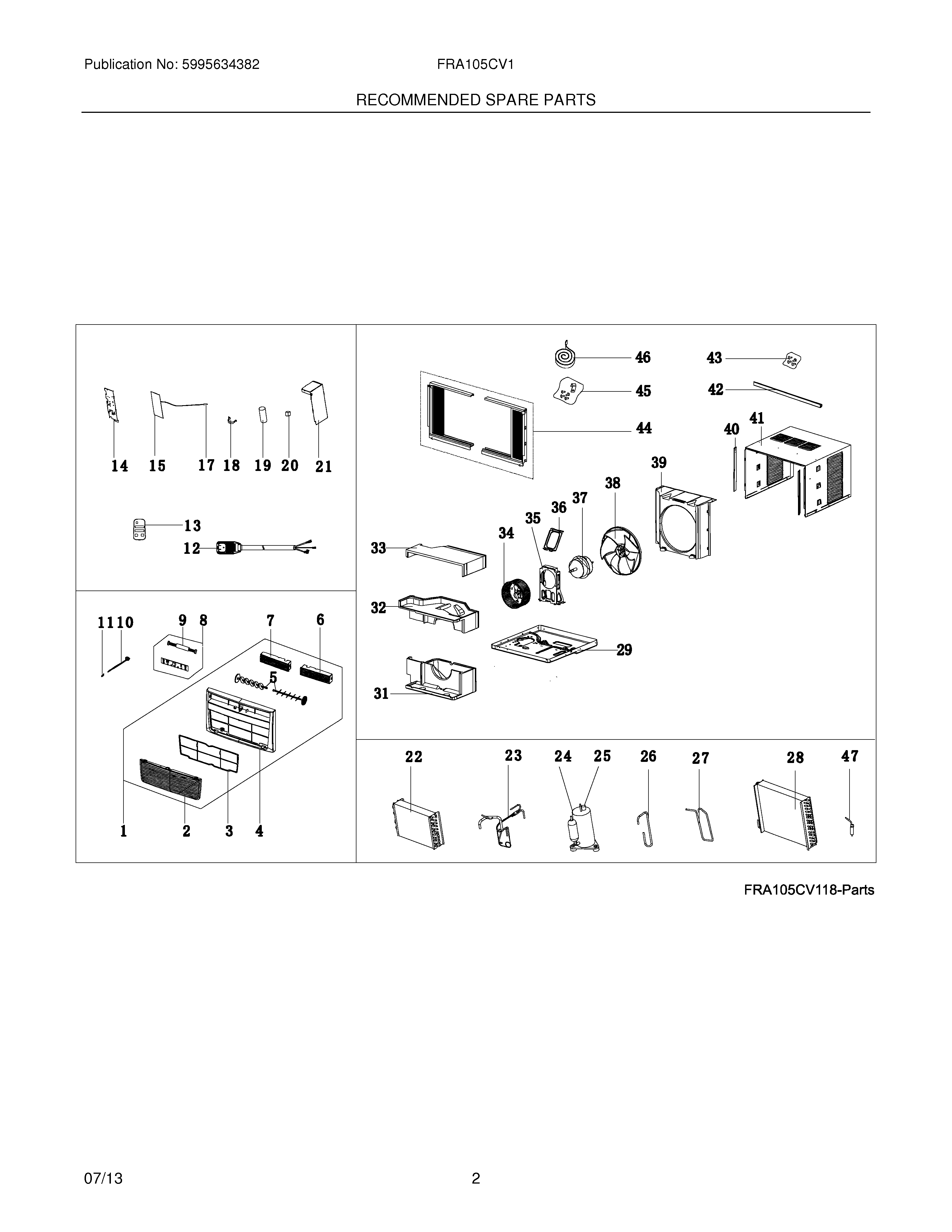

FRA105CV119 03 – RECOMMENDED SPARE PARTSadmin2025-04-26T08:38:39+00:00FRA105CV119 03 – RECOMMENDED SPARE PARTS
Products
| Position | Product |
|---|
| 1 | WCI 5304476844 |
| 2 | 5304476793 Frigidaire Air Conditioner Panel |
| 3 | 5304535830 Frigidaire Filter |
| 4 | WCI 5304476845 |
| 5 | WCI 5304476796 |
| 7 | 5304476798 Frigidaire Air Conditioner Louver |
| 8 | PC Board,display/input |
| 9 | Wire,connecting |
| 10 | 5304476178 Frigidaire Air Conditioner Door Assembly |
| 11 | 5304476179 Frigidaire Air Conditioner Sleeve |
| 12 | 5304476180 Frigidaire Power Cord Air Conditioner |
| 13 | 5304476802 Frigidaire Air Conditioner Remote Control |
| 14 | Cover,control box |
| 15 | WCI 5304487534 |
| 17 | 5304504724 Frigidaire Sensor |
| 18 | Strap,capacitor clamp |
| 19 | 5304471294 Frigidaire CAPACITOR |
| 20 | Ionizer,anion generator |
| 21 | WCI 5304476225 |
| 22 | WCI 5304485964 |
| 23 | WCI 5304485965 |
| 24 | Compressor,with overload |
| 25 | · Overload Protector,compressor |
| 27 | Tube,discharge |
| 28 | WCI 5304476233 |
| 29 | Base,unit chassis |
| 31 | Scroll,blower housing ,bottom |
| 32 | Scroll,blower housing ,middle |
| 33 | Scroll,blower housing ,top |
| 34 | 5304485443 Frigidaire Air Conditioner Blower Wheel |
| 35 | Support,motor mount ,left |
| 36 | Support,motor mount ,right |
| 37 | Motor,fan |
| 38 | 5304476059 Frigidaire Air Conditioner Fan Blade |
| 39 | Shroud,condenser fan |
| 40 | Retainer,shutter ,cabinet sides |
| 41 | Cabinet,wrapper/sleeve |
| 42 | WCI 5304476843 |
| 43 | Screw Kit,top rail mount |
| 44 | 5304476200 Frigidaire Air Conditioner Window Filler Kit |
| 45 | 5304491953 Frigidaire Air Conditioner Hardware |
| 46 | Seal kit,foam ,sash filler |
| 47 | 5304476201 Frigidaire Air Conditioner Filter Drier |
