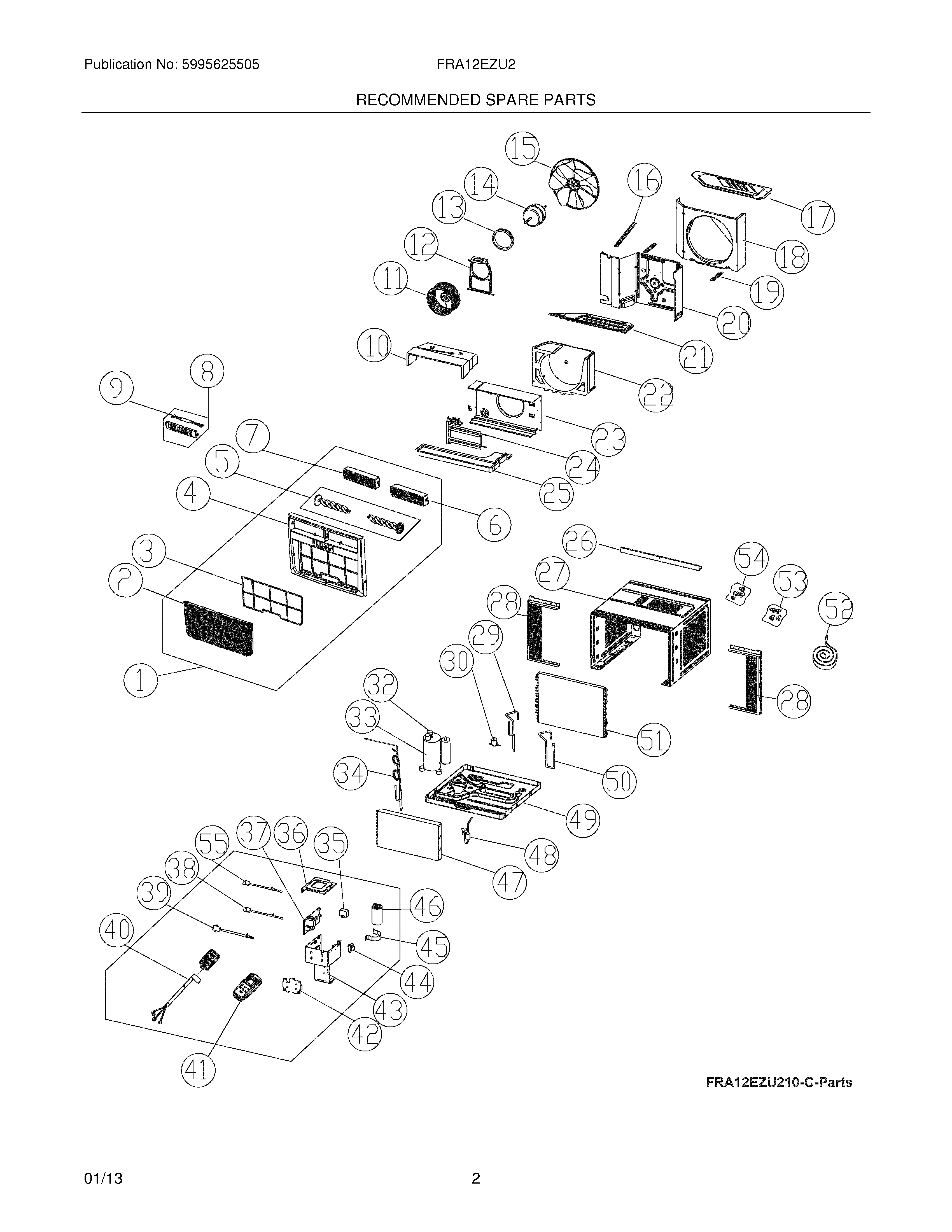

FRA12EZU211 03 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	Front Assembly,complete panel
2	Panel,front grill
3	5304535825 Frigidaire Air Filter
4	Ã‚Â· Frame,front assembly
5	5304483207 Frigidaire Louver
6	LOUVER, HORIZONTAL, RIGHT
7	LOUVER,HORIZONTAL,LEFT
8	WCI 5304482936
9	Ã‚Â· Wire,connector ,pc boards
10	WCI 5304483210
11	5304471312 Frigidaire Air Conditioner Blower Wheel
12	WCI 5304471285
13	WCI 5304471286
14	WCI 5304483231
15	5304471287 Frigidaire Air Conditioner Fan Blade
16	WCI 5304471254
17	WCI 5304471288
18	WCI 5304483211
19	WCI 5304471253
20	WCI 5304487602
21	WCI 5304476388
22	WCI 5304471301
23	WCI 5304487603
24	5304476390 Frigidaire Air Conditioner Heater Assembly
25	WCI 5304471265
26	WCI 5304482525
27	Cabinet,wrapper/sleeve
28	WCI 5304471252
29	WCI 5304476394
30	Valve,drain
32	WCI 5304476298
33	WCI 5304475747
34	WCI 5304476395
35	5304471077 Frigidaire Air Conditioner Capacitor
36	WCI 5304483214
37	5304483232 Frigidaire Air Conditioner PC Board
38	Sensor,temperature ,ambient
39	5304512375 Frigidaire Air Conditioner Sensor
40	Power Cord,electric ,LCDI
41	REMOTE CONTROL TRANSMITTER
42	WCI 5304487610
43	WCI 5304483218
44	5304471063 Frigidaire Air Conditioner Transformer
45	WCI 5304476400
46	WCI 5304475748
47	WCI 5304476401
48	5304476367 Frigidaire Air Conditioner Filter Drier
49	WCI 5304476402
50	WCI 5304476403
51	WCI 5304490068
52	Seal kit,window ,foam strips
53	WCI 5304471257
54	Screw Kit,top rail mount
55	SENSOR
