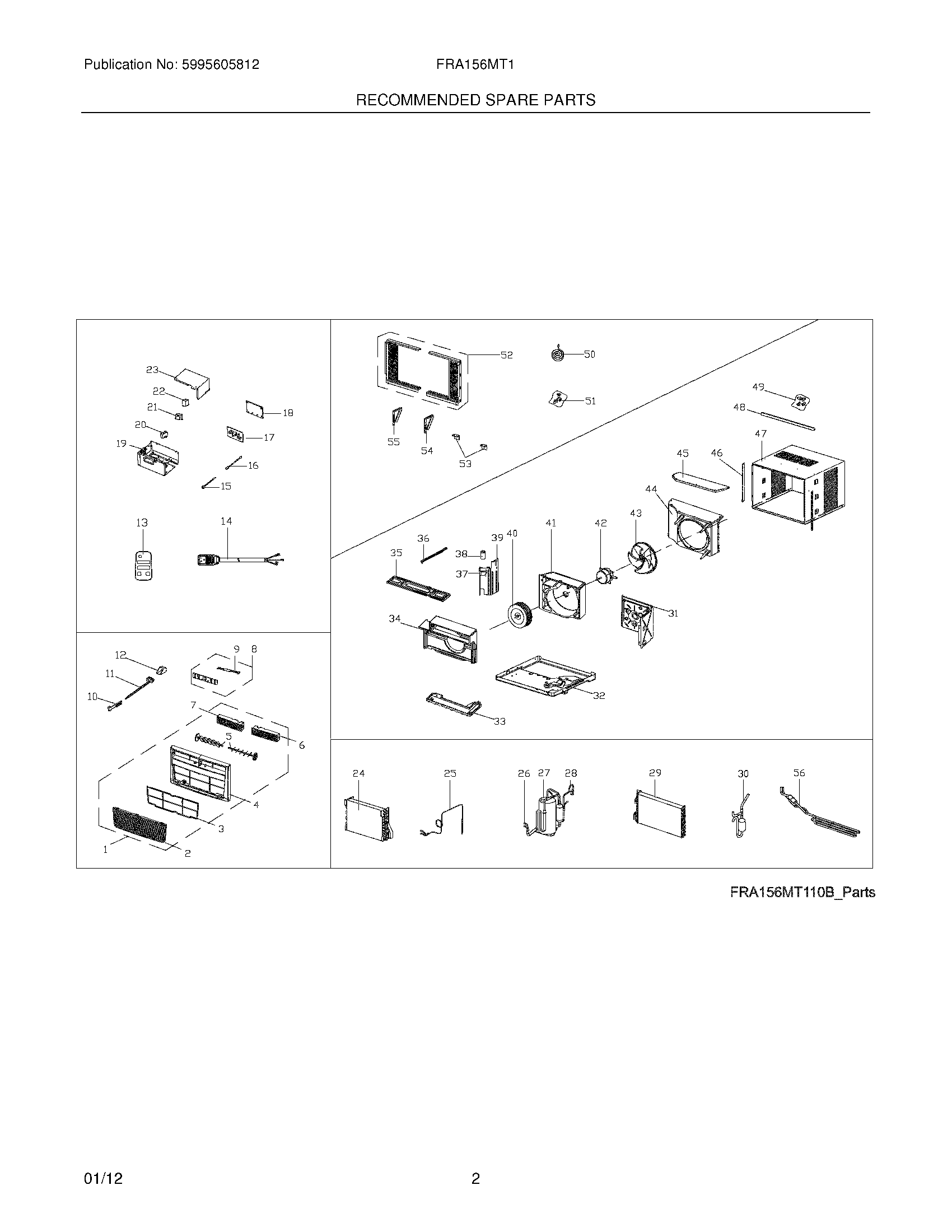

FRA156MT112 03 – RECOMMENDED SPARE PARTS

FRA156MT112 03 – RECOMMENDED SPARE PARTS

Written by

in

FRA156MT112 03 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1WCI 5304476952
2Panel,front grille ,tilt-out
35304525598 Frigidaire Air Conditioner Filter
4WCI 5304476953
55304476946 Frigidaire Louver
6WCI 5304476948
7WCI 5304476947
8WCI 5304476954
9WCI 5304483056
10Handle,vent control
11Door,vent control ,with lever
125304476359 Frigidaire Air Conditioner Link Assembly
135304501878 Frigidaire Remote Control
145304476180 Frigidaire Power Cord Air Conditioner
155304512375 Frigidaire Air Conditioner Sensor
16Sensor,temperature ,ambient
175304476951 Frigidaire Air Conditioner PC Board
18WCI 5304476251
19WCI 5304476361
205304483052 Frigidaire Air Conditioner Capacitor
215304470989 Frigidaire Air Conditioner Transformer
22Ionizer,anion generator
23WCI 5304476314
24Evaporator,with cap tube
25· Tube,capillary
26WCI 5304476364
27WCI 5304475730
28WCI 5304476365
29WCI 5304476366
305304476367 Frigidaire Air Conditioner Filter Drier
31WCI 5304472538
32Base,unit chassis
33Tray,drip pan
34Scroll,blower housing ,front
35WCI 5304476326
36WCI 5304476327
37WCI 5304476370
38WCI 5304474928
39Bulkhead,partition ,front/left
40WCI 5304472532
41Scroll,blower housing ,rear
425304483055 Frigidaire Air Conditioner Motor
43BLADE-FAN
44WCI 5304476329
45WCI 5304476330
46Retainer,shutter ,cabinet sides
47Cabinet,wrapper/sleeve
48Rail,shutter track ,top angle
49Screw Kit,top rail mount
50WCI 5304472548
51Hardware,mounting ,screws/locks
52Window Filler Kit,slider panel
53Bracket,sill angle
54Bracket,mounting ,right window
55Bracket,mounting ,left window
56Tube,condensate evap ,drain pan
