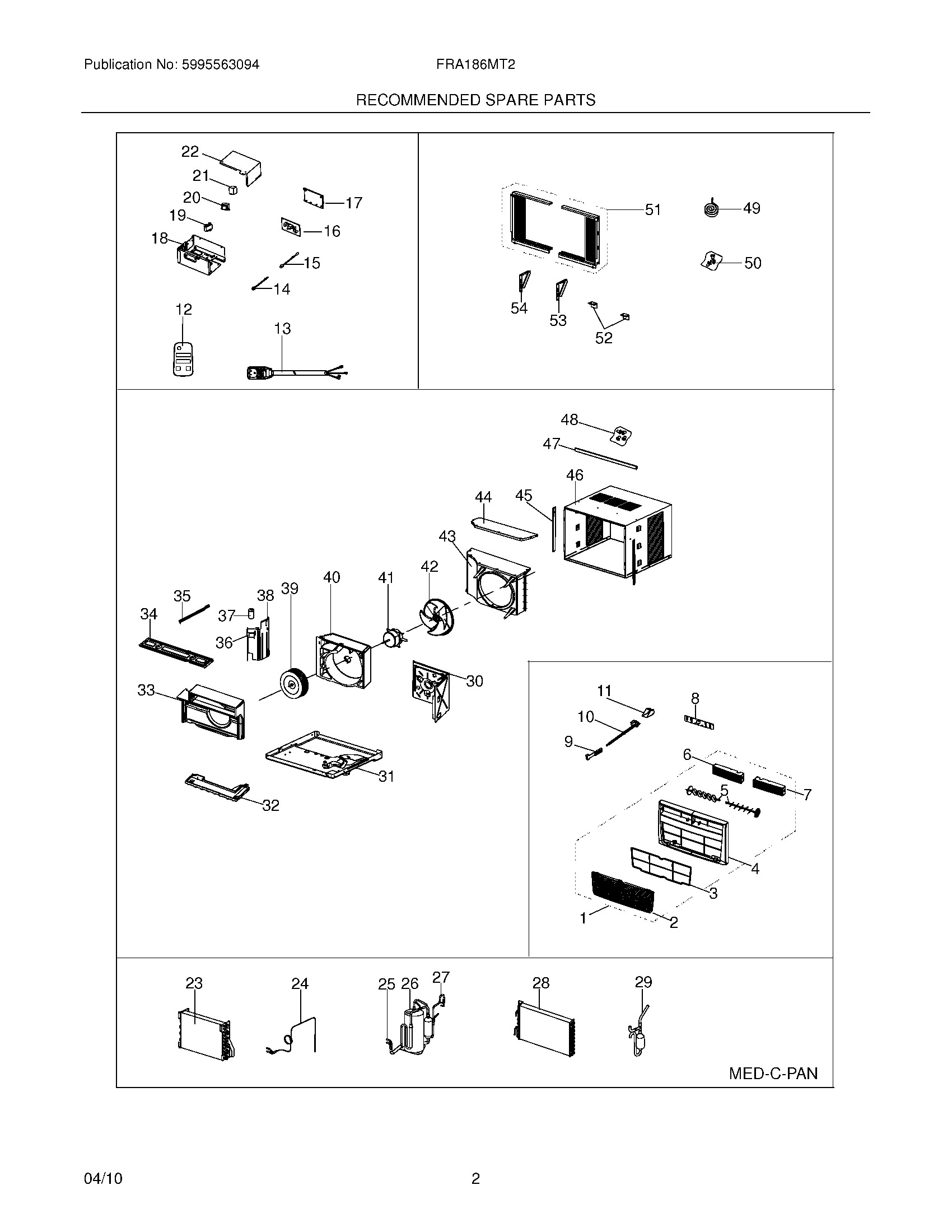

FRA186MT20 03 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	WCI 5304476952
2	Panel,front grille ,tilt-out
3	5304525598 Frigidaire Air Conditioner Filter
4	WCI 5304476953
5	5304476946 Frigidaire Louver
6	WCI 5304476948
7	WCI 5304476947
8	WCI 5304476954
9	Handle,vent control
10	Door,vent control ,with lever
11	5304476359 Frigidaire Air Conditioner Link Assembly
12	5304501878 Frigidaire Remote Control
13	Power Cord,electric ,LCDI
14	5304512375 Frigidaire Air Conditioner Sensor
15	Sensor,temperature ,ambient
16	5304476951 Frigidaire Air Conditioner PC Board
17	WCI 5304476251
18	WCI 5304476361
19	5304472609 Frigidaire Air Conditioner Capacitor
20	5304471063 Frigidaire Air Conditioner Transformer
21	5304472418 Frigidaire Air Conditioner IONIZER
22	WCI 5304476314
23	WCI 5304476377
24	WCI 5304476378
25	WCI 5304476319
26	WCI 5304475740
27	WCI 5304476379
28	WCI 5304476380
29	5304476322 Frigidaire Air Conditioner Filter Drier
30	WCI 5304472538
31	Base,unit chassis
32	Tray,drip pan
33	Scroll,blower housing ,front
34	WCI 5304476326
35	WCI 5304476327
36	Strap,capacitor clamp
37	WCI 5304475736
38	WCI 5304476371
39	5304472407 Frigidaire Air Conditioner Blower Wheel
40	Scroll,blower housing ,rear
41	5304483059 Frigidaire Air Conditioner Motor
42	BLADE-FAN
43	WCI 5304476329
44	WCI 5304476330
45	Retainer,shutter ,cabinet sides
46	WCI 5304476332
47	Rail,shutter track ,top angle
48	Screw Kit,top rail mount
49	WCI 5304472548
50	Hardware,mounting ,screws/locks
51	Window Filler Kit,slider panel
52	Bracket,sill angle
53	WCI 5304476268
54	WCI 5304476269
