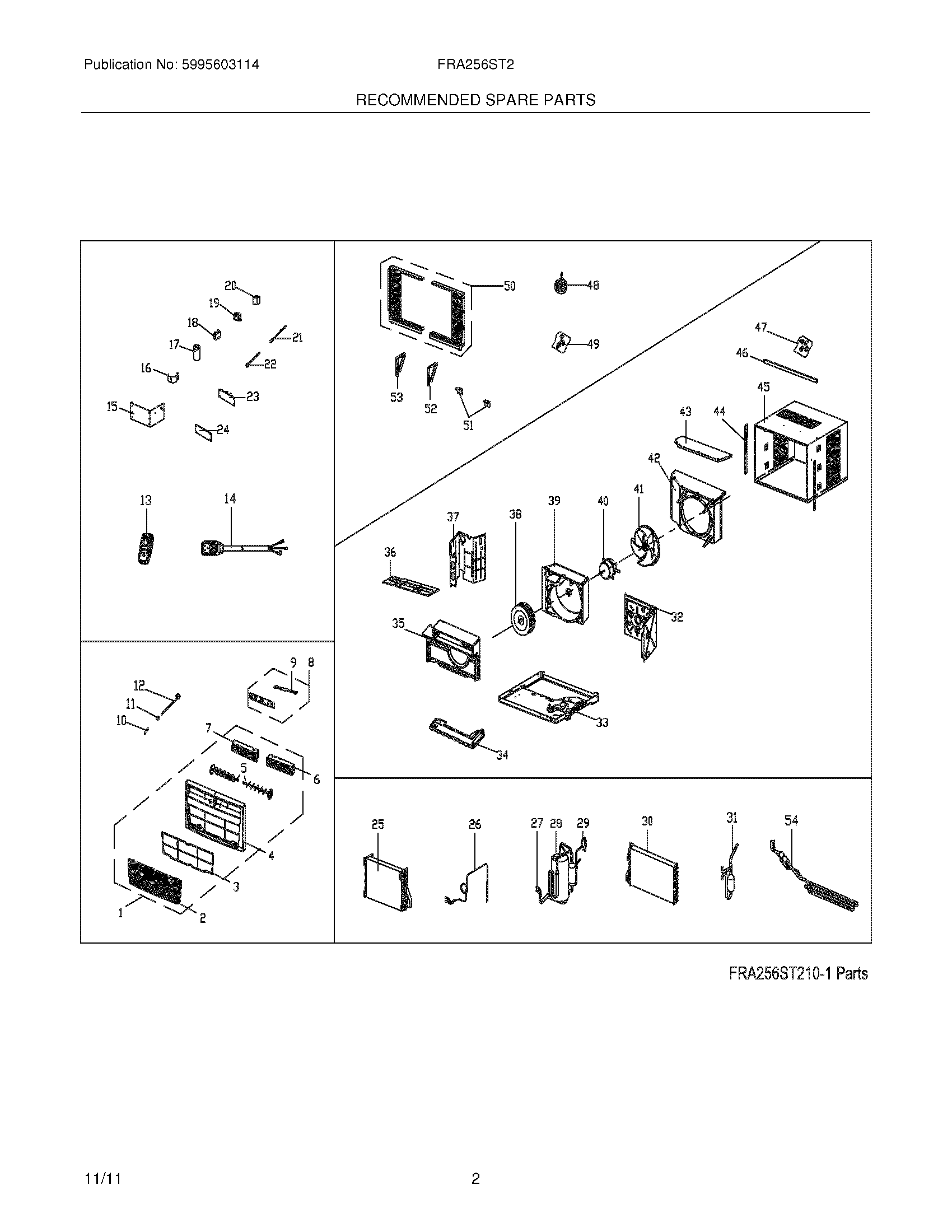

FRA256ST212 03 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1WCI 5304477142
25304477143 Frigidaire Front Grille
3FILTER
4WCI 5304477145
55304477146 Frigidaire LOUVER
65304477147 Frigidaire Louver
75304477148 Frigidaire LOUVER
8WCI 5304476954
9WCI 5304482877
10Handle,vent control
11WCI 5304476244
125304477149 Frigidaire Air Conditioner Door Assembly
135304501878 Frigidaire Remote Control
14Power Cord,electric ,LCDI
15WCI 5304476248
16WCI 5304476249
17WCI 5304472621
185304482883 Frigidaire Air Conditioner Capacitor
195304471063 Frigidaire Air Conditioner Transformer
205304472418 Frigidaire Air Conditioner IONIZER
21Sensor,temperature ,ambient
225304512375 Frigidaire Air Conditioner Sensor
235304476951 Frigidaire Air Conditioner PC Board
24WCI 5304476251
25WCI 5304482503
26WCI 5304482504
27WCI 5304482505
285304475741 Frigidaire Air Conditioner Compressor
29WCI 5304476255
305304476256 Frigidaire Air Conditioner Condenser
315304476257 Frigidaire Air Conditioner Filter Drier
32WCI 5304472351
33Base,unit chassis
34Tray,drip pan ,foam
35WCI 5304476259
36WCI 5304482506
37WCI 5304476261
385304472407 Frigidaire Air Conditioner Blower Wheel
39Scroll,blower housing ,rear
40WCI 5304472353
41BLADE-FAN
42WCI 5304472355
43WCI 5304472354
44WCI 5304476263
45WCI 5304482507
46Rail,shutter track ,top channel
47Screw Kit,top rail mount
48Seal kit,foam ,sash & rails
49Hardware,mounting ,screws/locks
50Window Filler Kit,slider panels ,accordion
51Bracket,sill angle
52Bracket,mounting ,right window
53Bracket,mounting ,left window
54Tube,condensate evap ,drain pan
