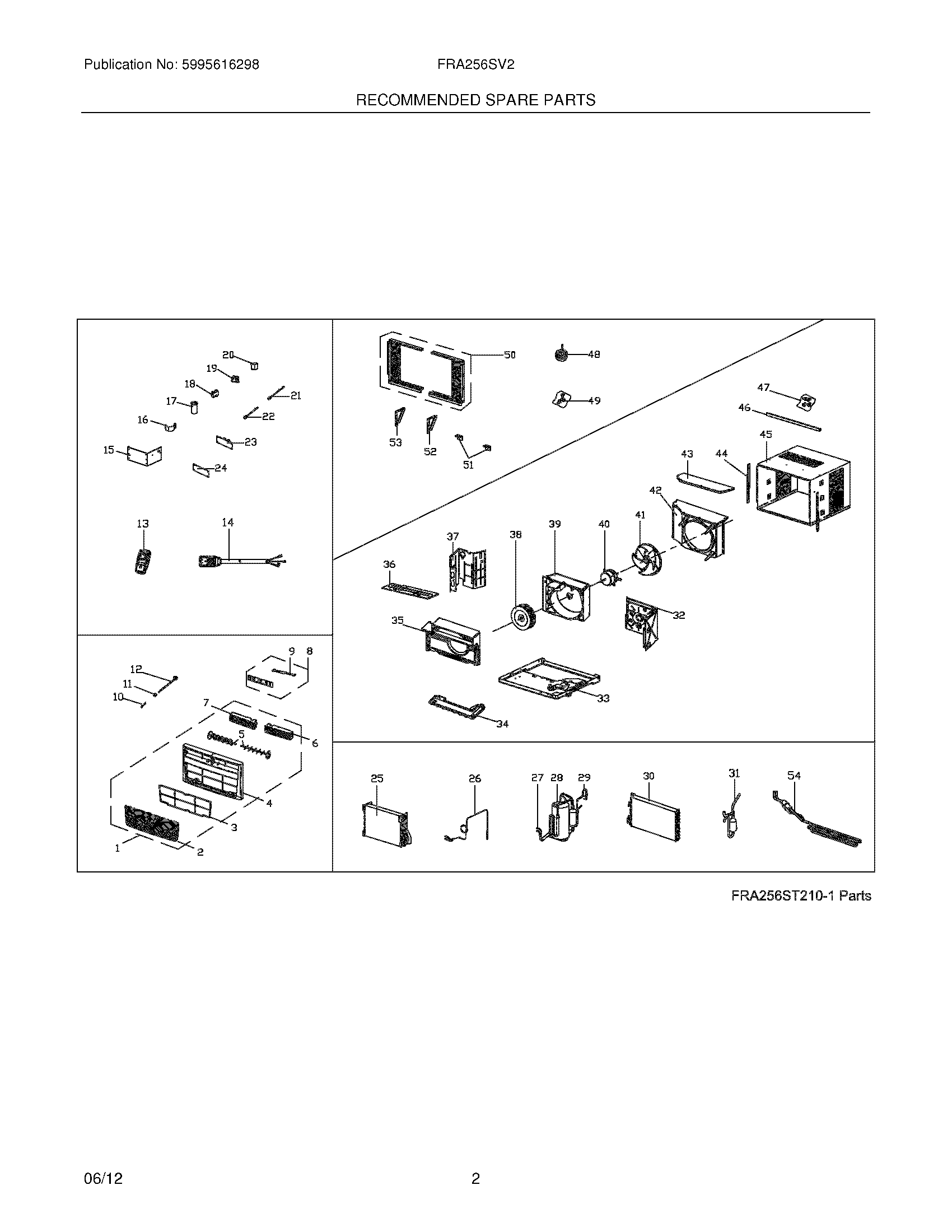

FRA256SV215 03 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	WCI 5304477142
2	5304477143 Frigidaire Front Grille
3	FILTER
4	WCI 5304477145
5	5304477146 Frigidaire LOUVER
6	5304477147 Frigidaire Louver
7	5304477148 Frigidaire LOUVER
8	WCI 5304483709
9	WCI 5304482877
10	Handle,vent control
11	WCI 5304476244
12	5304477149 Frigidaire Air Conditioner Door Assembly
13	5304501878 Frigidaire Remote Control
14	Power Cord,electric ,LCDI
15	WCI 5304476248
16	WCI 5304476249
17	WCI 5304472621
18	5304482883 Frigidaire Air Conditioner Capacitor
19	5304471063 Frigidaire Air Conditioner Transformer
20	5304472418 Frigidaire Air Conditioner IONIZER
21	Sensor,temperature ,ambient
22	5304512375 Frigidaire Air Conditioner Sensor
23	5304476951 Frigidaire Air Conditioner PC Board
24	WCI 5304476251
25	Evaporator,w/cap tube
26	WCI 5304485986
27	WCI 5304485987
28	5304475741 Frigidaire Air Conditioner Compressor
29	WCI 5304485988
30	WCI 5304485989
31	5304476257 Frigidaire Air Conditioner Filter Drier
32	WCI 5304472351
33	Base,unit chassis
34	Tray,drip pan ,foam
35	WCI 5304476259
36	WCI 5304482506
37	Bulkhead,partition ,front/left
38	5304472407 Frigidaire Air Conditioner Blower Wheel
39	Scroll,blower housing ,rear
40	WCI 5304472353
41	BLADE-FAN
42	Shroud,condenser/fan
43	WCI 5304472354
44	Retainer,shutter ,cabinet sides
45	Cabinet,wrapper/sleeve
46	Rail,shutter track ,top channel
47	Screw Kit,top rail mount
48	Seal kit,foam ,sash & rails
49	Hardware,mounting ,screws/locks
50	Window Filler Kit,slider panels ,accordion
51	Bracket,sill angle
52	Bracket,mounting ,right window
53	Bracket,mounting ,left window
54	Tube,condensate evap ,drain pan
