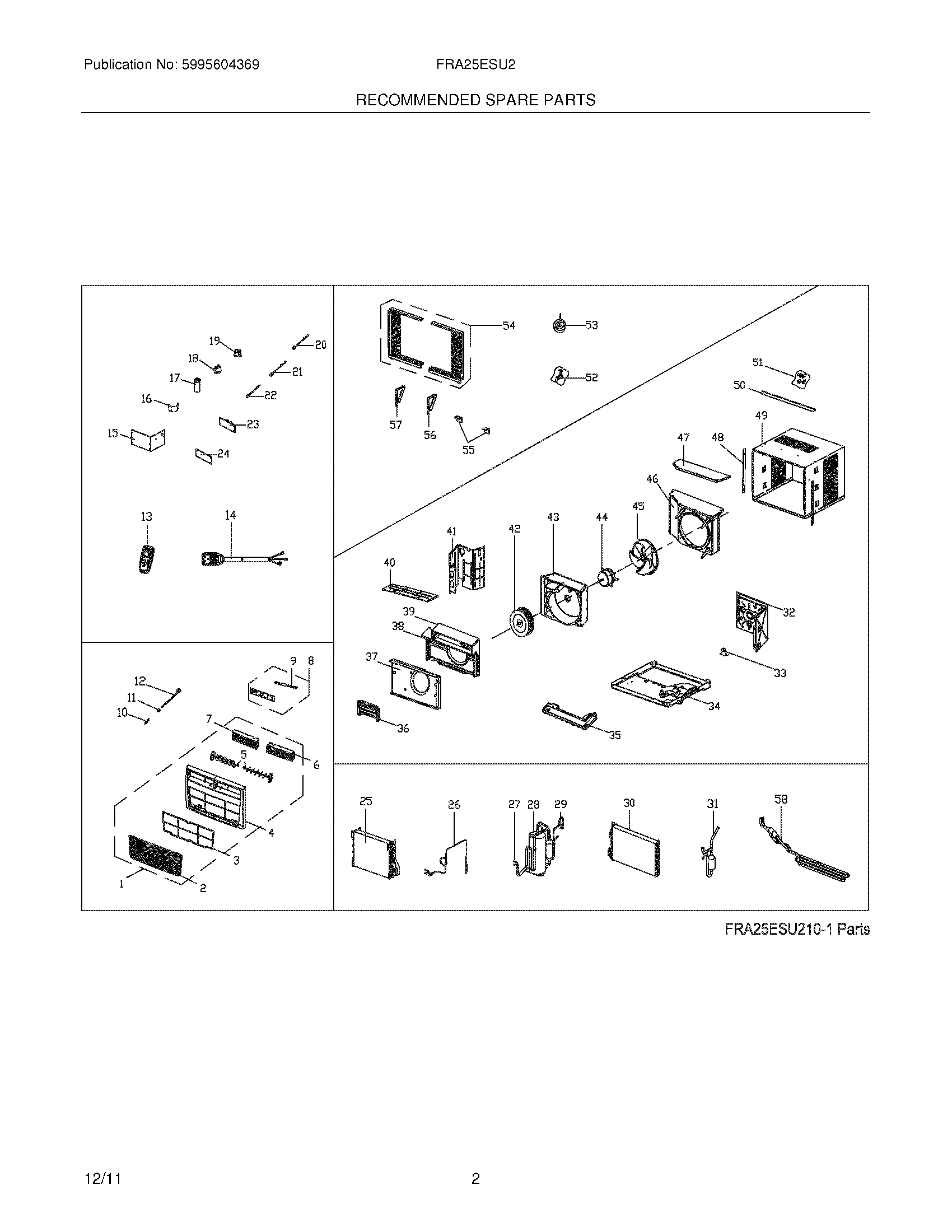

FRA25ESU211 03 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	WCI 5304482932
2	5304477143 Frigidaire Front Grille
3	FILTER
4	WCI 5304482933
5	5304477146 Frigidaire LOUVER
6	5304482934 Frigidaire LOUVER
7	5304482935 Frigidaire LOUVER
8	WCI 5304482936
9	Wire,connector ,pc boards
10	Handle,vent control
11	WCI 5304476244
12	5304477149 Frigidaire Air Conditioner Door Assembly
13	REMOTE CONTROL TRANSMITTER
14	5304476312 Frigidaire Air Conditioner Power Cord
15	WCI 5304476248
16	WCI 5304476249
17	WCI 5304472621
18	5304482883 Frigidaire Air Conditioner Capacitor
19	5304471063 Frigidaire Air Conditioner Transformer
20	Sensor,temperature ,ambient
21	SENSOR
22	5304512375 Frigidaire Air Conditioner Sensor
23	WCI 5304482938
24	WCI 5304476251
25	WCI 5304482503
26	WCI 5304482504
27	WCI 5304482505
28	5304475741 Frigidaire Air Conditioner Compressor
29	WCI 5304476255
30	5304476256 Frigidaire Air Conditioner Condenser
31	5304476257 Frigidaire Air Conditioner Filter Drier
32	WCI 5304472351
33	Valve,drain
34	WCI 5304482939
35	Tray,drip pan ,foam
36	5304529410 Frigidaire Heater
37	WCI 5304477280
38	WCI 5304472340
39	WCI 5304482940
40	WCI 5304482506
41	WCI 5304476261
42	5304529414 Frigidaire Blower-Fan
43	WCI 5304483708
44	WCI 5304472353
45	BLADE-FAN
46	WCI 5304472355
47	WCI 5304472354
48	WCI 5304476263
49	WCI 5304482507
50	WCI 5304472363
51	Screw Kit,top rail mount
52	WCI 5304472365
53	Seal kit,foam ,sash & rails
54	WCI 5304472357
55	Bracket,sill angle
56	Bracket,mounting ,right window
57	Bracket,mounting ,left window
58	Tube,condensate evap ,drain pan
