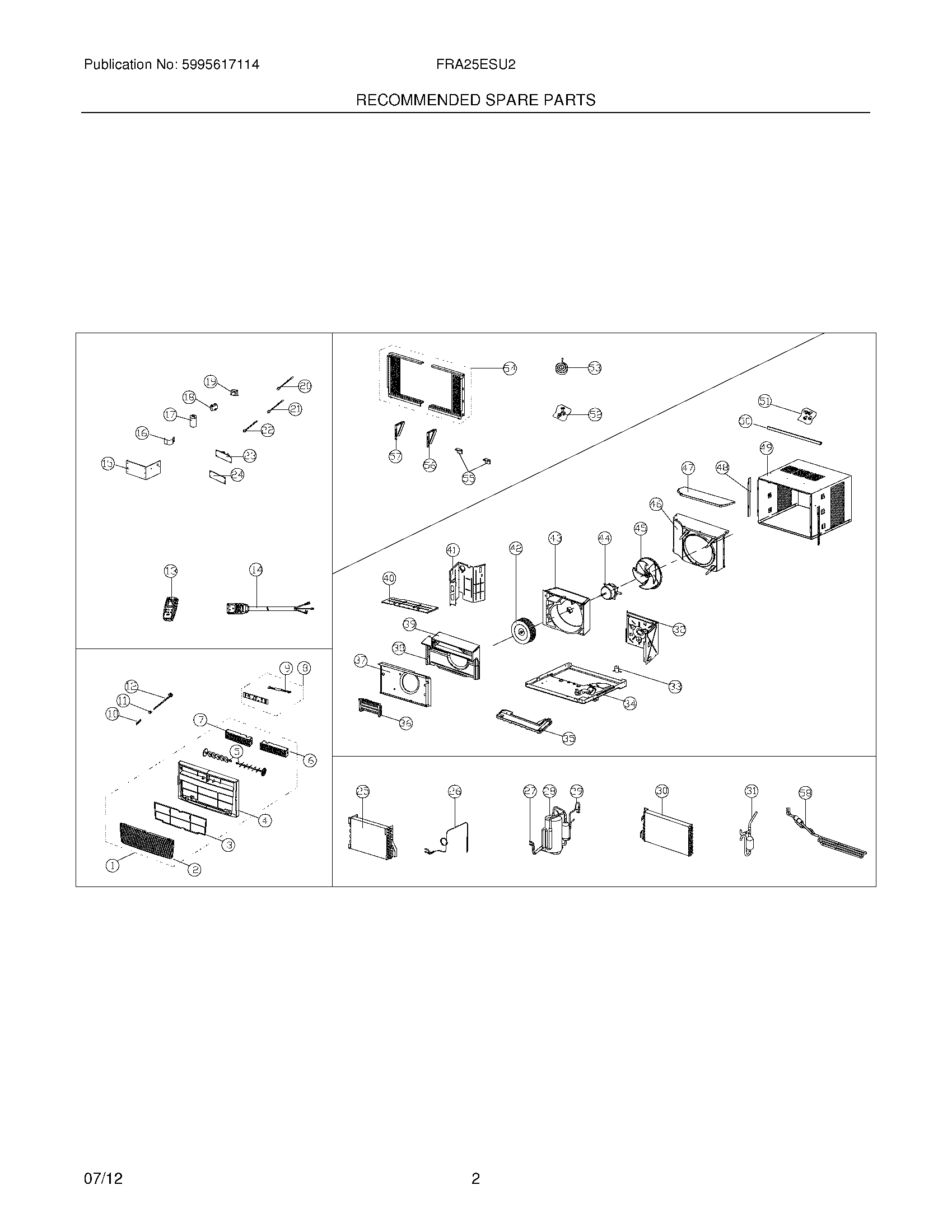

FRA25ESU217 03 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1WCI 5304482932
25304477143 Frigidaire Front Grille
3FILTER
4WCI 5304482933
55304477146 Frigidaire LOUVER
65304482934 Frigidaire LOUVER
75304482935 Frigidaire LOUVER
8WCI 5304482936
9· Wire,connector ,pc boards
10Handle,vent control
11WCI 5304476244
125304477149 Frigidaire Air Conditioner Door Assembly
13REMOTE CONTROL TRANSMITTER
145304476312 Frigidaire Air Conditioner Power Cord
15WCI 5304476248
16WCI 5304476249
17WCI 5304472621
185304482883 Frigidaire Air Conditioner Capacitor
195304471063 Frigidaire Air Conditioner Transformer
20Sensor,temperature ,ambient
21SENSOR
225304512375 Frigidaire Air Conditioner Sensor
23WCI 5304482938
24WCI 5304476251
25Evaporator,w/cap tube
26WCI 5304485986
27WCI 5304485987
285304475741 Frigidaire Air Conditioner Compressor
29WCI 5304485988
30WCI 5304485989
315304476257 Frigidaire Air Conditioner Filter Drier
32WCI 5304472351
33Valve,drain
34WCI 5304482939
35Tray,drip pan ,foam
365304529410 Frigidaire Heater
37WCI 5304472339
38WCI 5304472340
39WCI 5304482940
40WCI 5304482506
41Bulkhead,partition ,front/left
425304529414 Frigidaire Blower-Fan
43WCI 5304483708
445304482882 Frigidaire Air Conditioner Motor
45BLADE-FAN
46Shroud,condenser/fan
47WCI 5304472354
48Retainer,shutter ,cabinet sides
49Cabinet,wrapper/sleeve
50WCI 5304472363
51Screw Kit,top rail mount
52WCI 5304472365
53Seal kit,foam ,sash & rails
54WCI 5304472357
55Bracket,sill angle
56Bracket,mounting ,right window
57Bracket,mounting ,left window
58Tube,condensate evap ,drain pan
