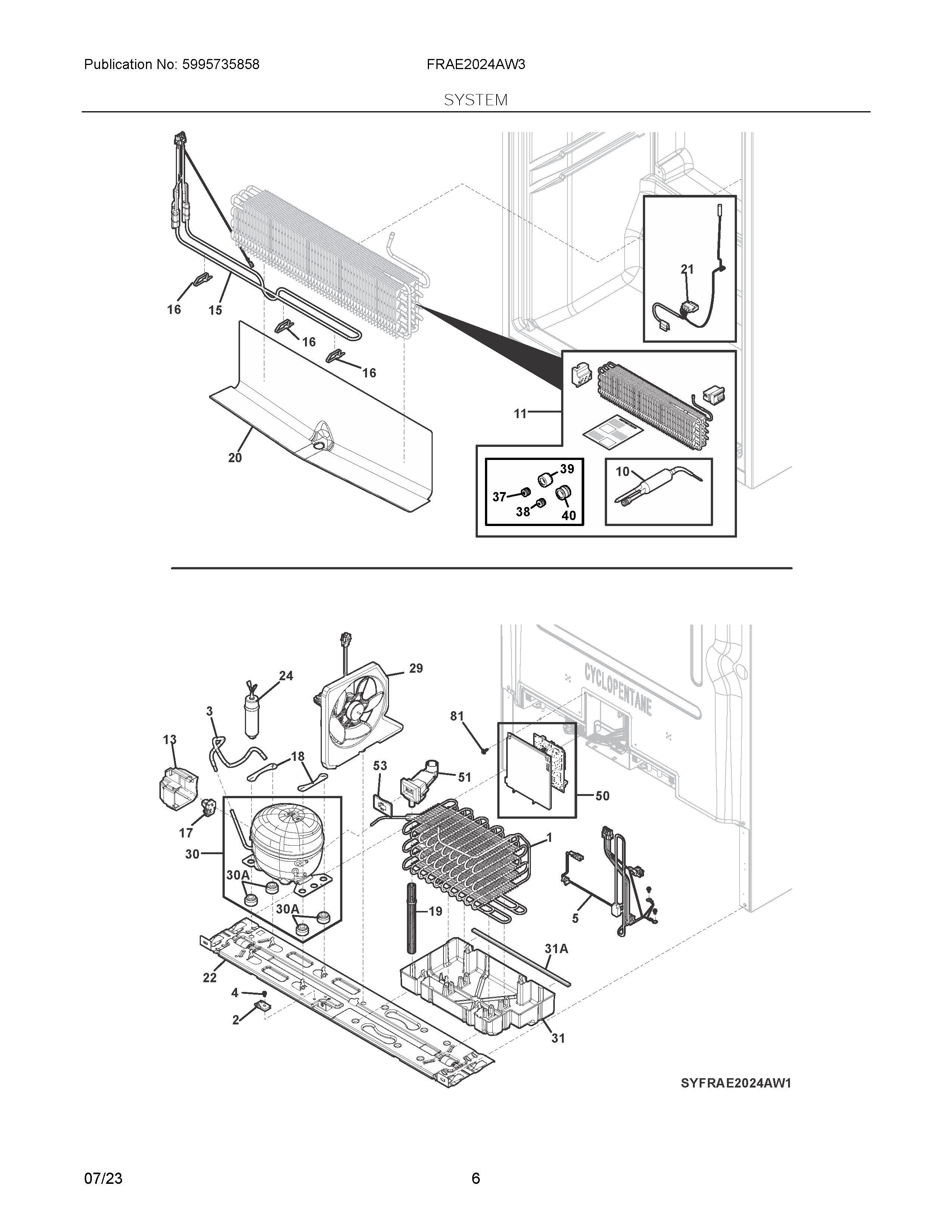

FRAE2024AW3 04 – SYSTEM

Products

Position	Product
NI	WCI 30534600
NI	241500305 Frigidaire Refrigerator Screw
NI	5304464772 Frigidaire Refrigerator Wire Tie
1	5304524200 Frigidaire Condenser
2	5304456288 Frigidaire Refrigerator Clamp
3	5304524046 Frigidaire Tube
4	240433204 Frigidaire Refrigerator Screw
5	5304524022 Frigidaire Harness
10	A19676501 Frigidaire Refrigerator Drier Filter
11	HEAT EXCHANGER KIT,TALL TWINS
13	5304522303 Frigidaire Refrigerator Cover
15	5304523833 Frigidaire Refrigerator Heater
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	5304522267 Frigidaire Refrigerator Controller
18	5304524607 Frigidaire Clamp
19	5304525042 Frigidaire Refrigerator Drain Tube
20	5304523720 Frigidaire Refrigerator Trough
21	5304523788 Frigidaire Defrost Thermostat
22	5304523693 Frigidaire Refrigerator Base Assembly
29	5304532166 Frigidaire Refrigerator Fan Assembly
30	COMPRESSOR
30A	811978901 Frigidaire Refrigerator Grommet
31	5304523709 Frigidaire Refrigerator Pan
31A	5304523724 Frigidaire Seal
37	RING-LOK (JUMPER IN), 37 #
38	LOCKRING, DRIER
39	LOCK RING, EVAPORATOR, TO SUCTION
40	LOCKRING, DRIER
50	5304524126 Frigidaire Main Board
51	5304530111 Frigidaire Refrigerator Drain Jumper
53	COVER, DRAIN JUMPER
55	5304530011 Frigidaire Refrigerator Capacitor
81	5304519765 Frigidaire Refrigerator Screw
