FRBG1224AV 03 – CABINET

FRBG1224AV 03 – CABINET

Written by

in

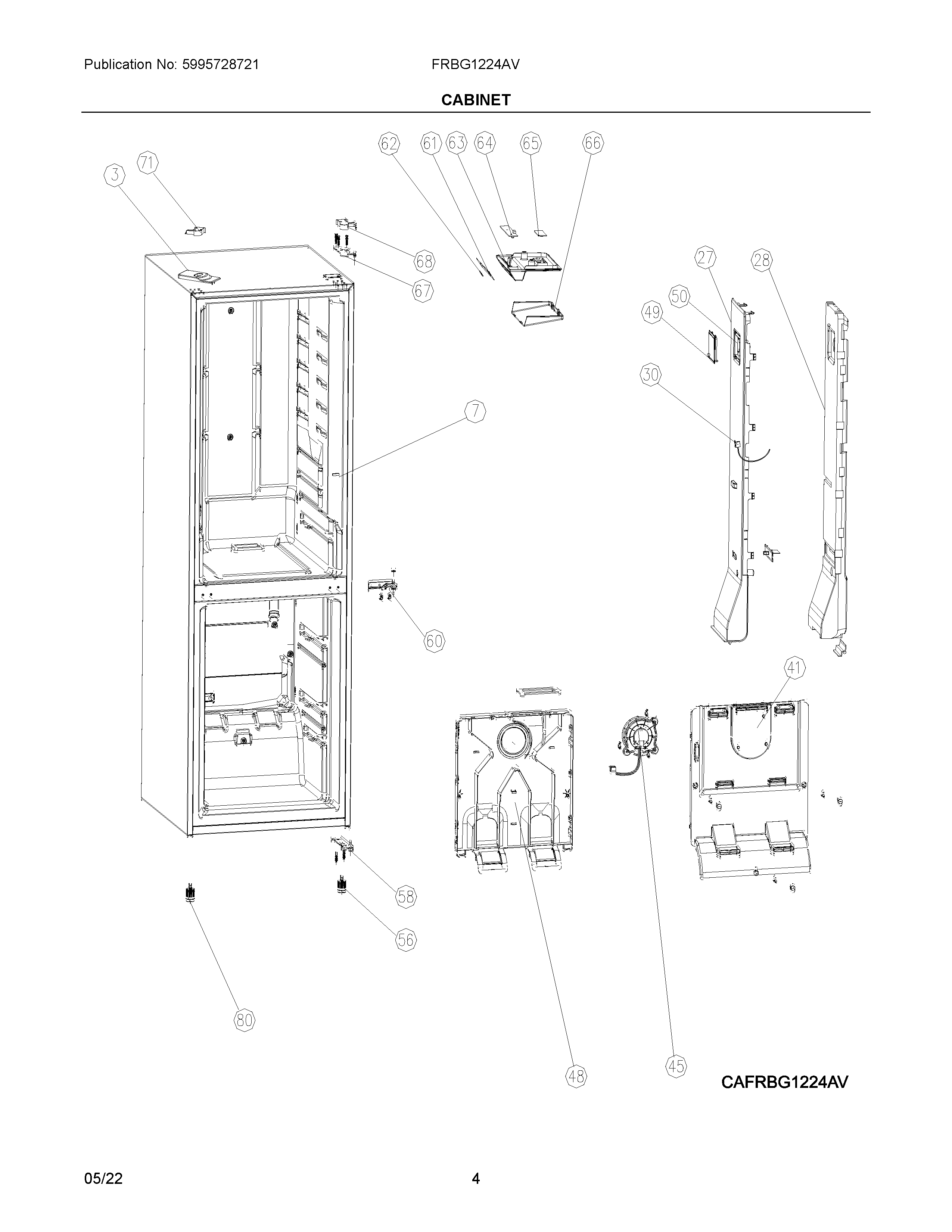

FRBG1224AV 03 – CABINET

Products

PositionProduct
3COVER, HINGE HOLES, GRAY, UPPER
75304525387 Frigidaire Switch Assembly
27COVER ASSEMBLY, AIR TOWER, FRONT
28FOAM BLOCK, AIR TOWER
30SENSOR, TEMPERATURE, FRESH FOOD
41COVER ASSEMBLY, COIL, FREEZER
455304533212 Frigidaire Refrigerator Fan Motor
48HOUSING ASSEMBLY, AIR DIRECTION, FREEZER
49COVER, DAMPER, FRESH FOOD
50DAMPER ASSEMBLY
56FOOT, CABINET, ADJUSTABLE
58HINGE ASSEMBLY, FREEZER DOOR, LOWER
605304518490 Frigidaire Door Hinge
61OVERLAY, CONTROL BOX
62CONTROL PANEL, DISPLAY
63HOUSING, CONTROL PANEL
64PC BOARD, DISPLAY
65PC BOARD, LED LIGHT
66LENS, LED LIGHT
675304530321 Frigidaire Assembly Hinge
685304530322 Frigidaire Cover
715304530323 Frigidaire Cover Assembly
805304518499 Frigidaire Foot
