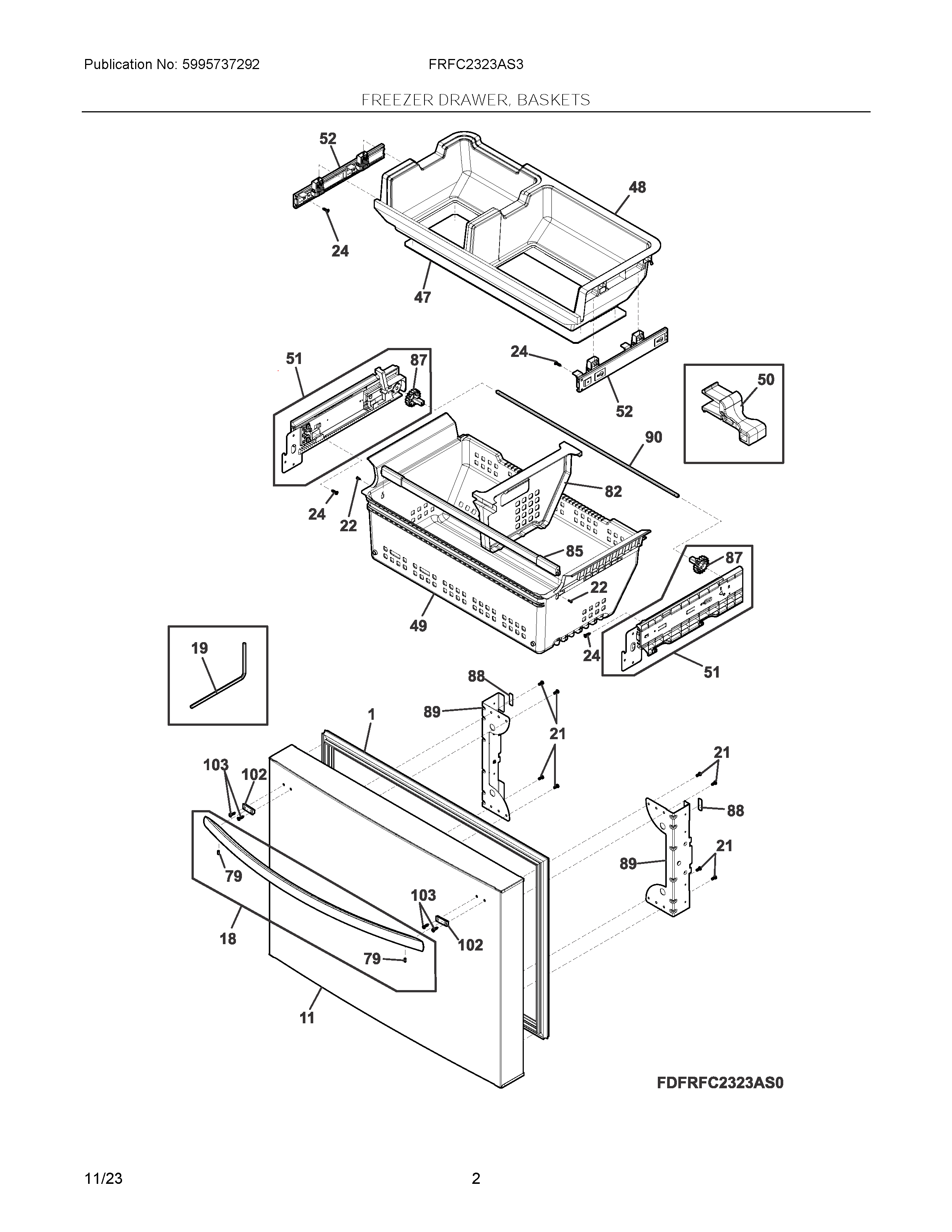

FRFC2323AS3 02 – FREEZER DRAWER, BASKETS

FRFC2323AS3 02 – FREEZER DRAWER, BASKETS

Written by

in

FRFC2323AS3 02 – FREEZER DRAWER, BASKETS

Products

PositionProduct
NIB242039701 Frigidaire Refrigerator Screw
NIB242039702 Frigidaire Refrigerator Screw
NI242146401 Frigidaire Refrigerator Screw
1GASKET
115304530836 Frigidaire Refrigerator Drawer Panel
185304531232 Frigidaire Refrigerator Handle
195304508270 Frigidaire Wrench
215304515677 Frigidaire Package of 4 Screws
22241953902 Frigidaire Refrigerator Screw
24240383412 Frigidaire Refrigerator Screw
47GLASS, BASKET, UPPER
48BASKET, FREEXER, UPPER
495304526200 Frigidaire Refrigerator Basket
505304501271 Frigidaire Shelf Clip
515304507976 Frigidaire Refrigerator Assembly-Slide
51A5304507977 Frigidaire Refrigerator Slide Assembly
52ASLIDE ASSEMBLY, BASKET, LH UPPER
52SLIDE ASSEMBLY, BASKET, RH UPPER
79218755402 Frigidaire Refrigerator Set Screw
82DIVIDER
85242139301 Frigidaire Refrigerator Support-Beam
875304507999 Frigidaire Refrigerator Pinion
88241979601 Frigidaire Refrigerator Bumper
895304509676 Frigidaire Refrigerator Bracket
90241770705 Frigidaire Bar
1025304504279 Frigidaire Handle Base
103242077302 Frigidaire Screw
