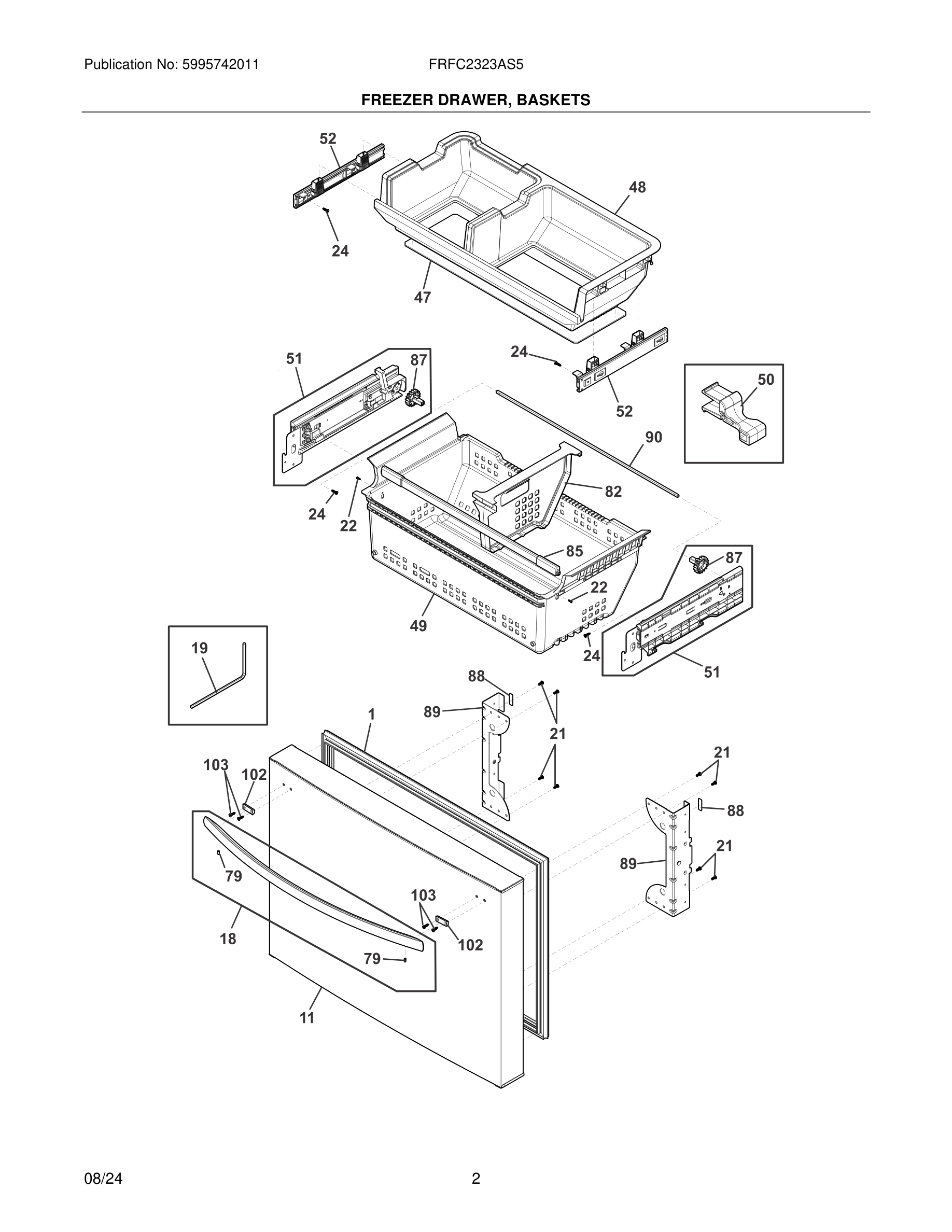

FRFC2323AS5 03 – FREEZER DRAWER, BASKETS

FRFC2323AS5 03 – FREEZER DRAWER, BASKETS

Written by

in

FRFC2323AS5 03 – FREEZER DRAWER, BASKETS

Products

PositionProduct
*242146401 Frigidaire Refrigerator Screw
1#GASKET
115304530836 Frigidaire Refrigerator Drawer Panel
185304531232 Frigidaire Refrigerator Handle
195304508270 Frigidaire Wrench
21241690602 Frigidaire Refrigerator Screw
22241953902 Frigidaire Refrigerator Screw
24240383412 Frigidaire Refrigerator Screw
47GLASS, BASKET, UPPER
48BASKET-UPPER BASKET CD
495304526200 Frigidaire Refrigerator Basket
505304501271 Frigidaire Shelf Clip
515304507977 Frigidaire Refrigerator Slide Assembly
51*242039702 Frigidaire Refrigerator Screw
515304507976 Frigidaire Refrigerator Assembly-Slide
52SLIDE ASSEMBLY, BASKET, RH UPPER
52SLIDE ASSEMBLY, BASKET, LH UPPER
52*242039701 Frigidaire Refrigerator Screw
79218755402 Frigidaire Refrigerator Set Screw
82DIVIDER
85242139301 Frigidaire Refrigerator Support-Beam
875304507999 Frigidaire Refrigerator Pinion
88241979601 Frigidaire Refrigerator Bumper
895304509676 Frigidaire Refrigerator Bracket
90241770705 Frigidaire Bar
1025304504279 Frigidaire Handle Base
103242077302 Frigidaire Screw
