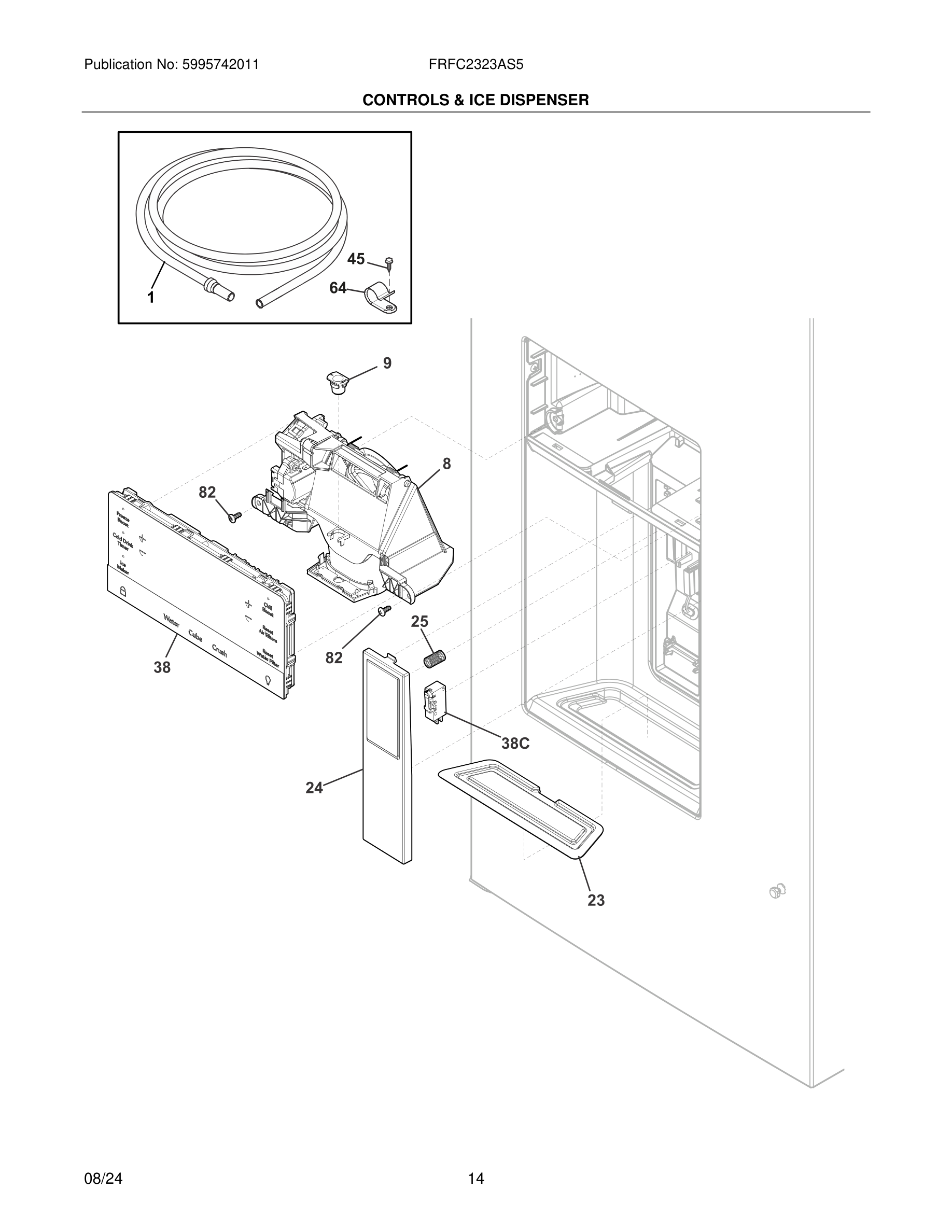

FRFC2323AS5 15 – CONTROLS & ICE DISPENSER

FRFC2323AS5 15 – CONTROLS & ICE DISPENSER

Written by

in

FRFC2323AS5 15 – CONTROLS & ICE DISPENSER

Products

PositionProduct
*#5304530940 Frigidaire Refrigerator Harness
*#241510904 Frigidaire Refrigerator Dispenser Harness
1#218976448 Frigidaire Water Line Hose
1*242200102 Frigidaire Refrigerator Clip
1*241806601 Frigidaire Refrigerator Water Connector
8#5304533221 Frigidaire I&W Module Assembly
9GUIDE-WATER TUBE, 9
235304527042 Frigidaire Drip Tray
245304530909 Frigidaire Actuator
255304519199 Frigidaire Refrigerator Spring
38C#241870104 Frigidaire Switch
38#5304530931 Frigidaire Refrigerator Assembly Control
455303307980 Frigidaire Oven Screw
64240396801 Frigidaire Refrigerator Tube Clamp
82241953902 Frigidaire Refrigerator Screw
