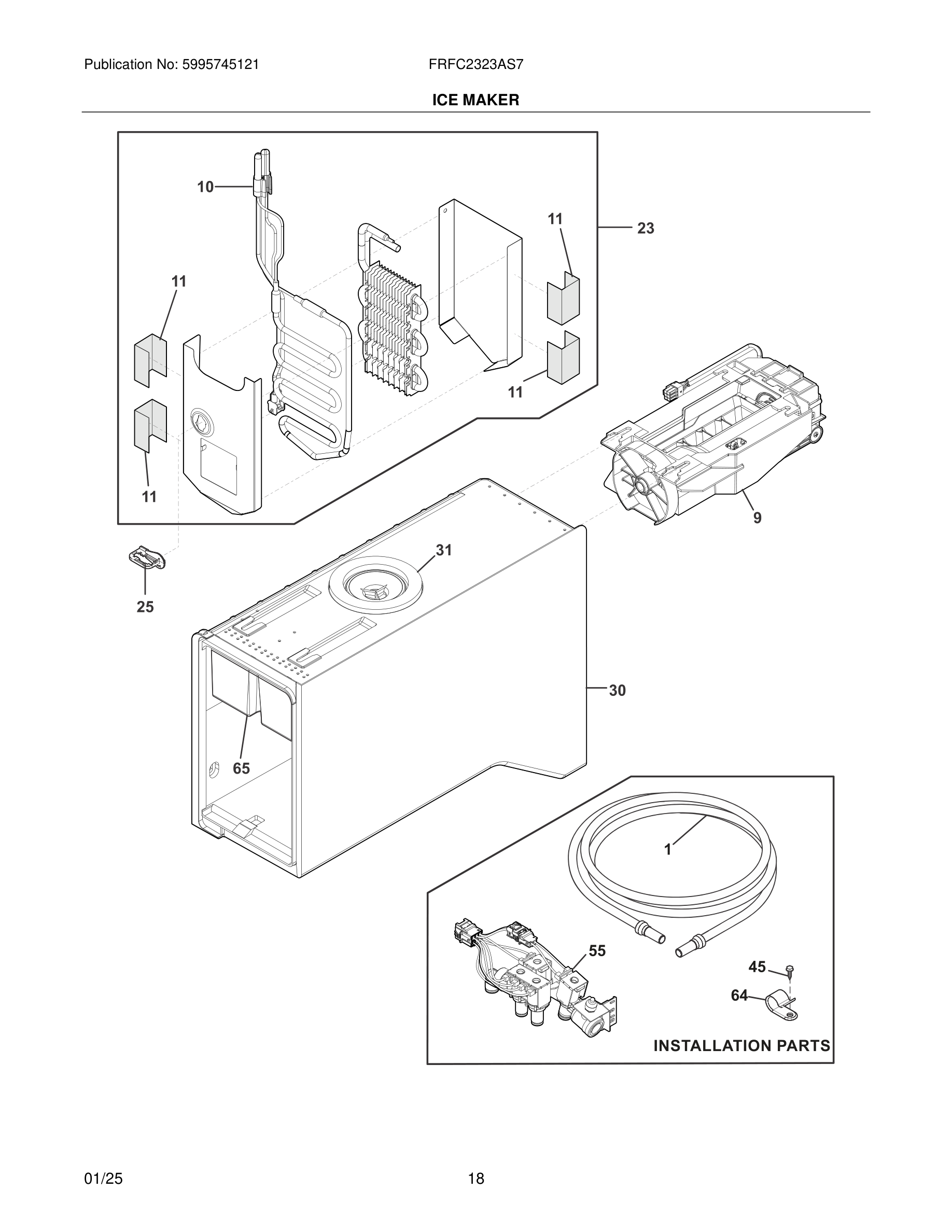

FRFC2323AS7 19 – ICE MAKER

Products

Position	Product
*	218515401 Frigidaire Refrigerator Clip
1#*	5304535843 Frigidaire Tube Assembly
1#*	5304535844 Frigidaire Click Connex Female
1#	218976443 Frigidaire Refrigerator Tube
1*	242200102 Frigidaire Refrigerator Clip
1*	241806601 Frigidaire Refrigerator Water Connector
9#	243297608 Frigidaire Refrigerator Ice Maker
10	5304519629 Frigidaire Refrigerator Clip
11	5304485759 Frigidaire Refrigerator Tape
23*#	5303918645 Frigidaire Refrigerator Thermistor Kit
23*#	5304530732 Frigidaire Refrigerator Wiring Harness
23#	5304530680 Frigidaire Assembly Evaporator
25	5304508037 Frigidaire Refrigerator Connector
30	5304531300 Frigidaire Assembly Housing
31	241512813 Frigidaire Seal Doughnut
45	5303307980 Frigidaire Oven Screw
55*	218709101 Frigidaire Refrigerator Handle Mounting Screw
55*	240363602 Frigidaire Refrigerator Shoulder Screw
55#	VALVE,WATER,QUAD SOLENOID
64	240396801 Frigidaire Refrigerator Tube Clamp
65	COVER, WIRING
65*	241953902 Frigidaire Refrigerator Screw
