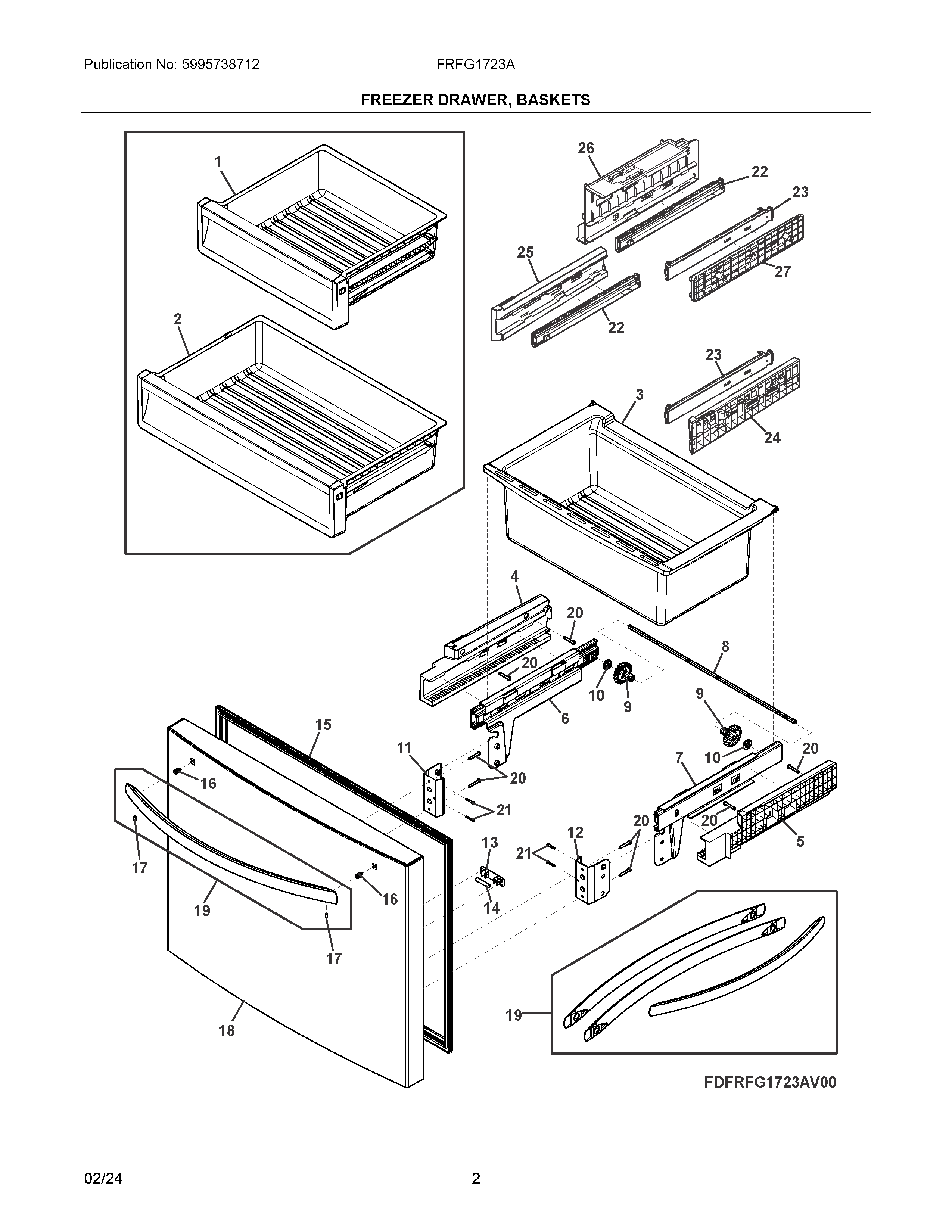

FRFG1723AV00 02 – FREEZER DRAWER, BASKETS

FRFG1723AV00 02 – FREEZER DRAWER, BASKETS

Written by

in

FRFG1723AV00 02 – FREEZER DRAWER, BASKETS

Products

PositionProduct
NIASCREW, PHIL PN HD, M4 X 8
15304529195 Frigidaire Drawer Assembly
25304529194 Frigidaire Refrigerator Drawer Assembly
35304529196 Frigidaire Basket
45304532280 Frigidaire Refrigerator Housing
55304532281 Frigidaire Refrigerator Housing
65304529169 Frigidaire Refrigerator Slider Assembly
75304529170 Frigidaire Refrigerator Slider Assembly
85304529171 Frigidaire Refrigerator Shaft
95304524001 Frigidaire Refrigerator Gear
105304529172 Frigidaire Pad
115304529176 Frigidaire Bracket Assembly
125304529175 Frigidaire Bracket
13SUPPORT, MAGNET, FREEZER DOOR
14MAGNET
155304529174 Frigidaire Refrigerator Gasket
165304519063 Frigidaire Refrigerator Screw
17218755402 Frigidaire Refrigerator Set Screw
185304529287 Frigidaire Refrigerator Door Assembly
195304529485 Frigidaire Refrigerator Handle
205304529166 Frigidaire Screw
215304529168 Frigidaire Screw
225304535762 Frigidaire Bracket
235304534927 Frigidaire Bracket
245304534011 Frigidaire Bracket
255304534012 Frigidaire Bracket
26SUPPORT
27SUPPORT
