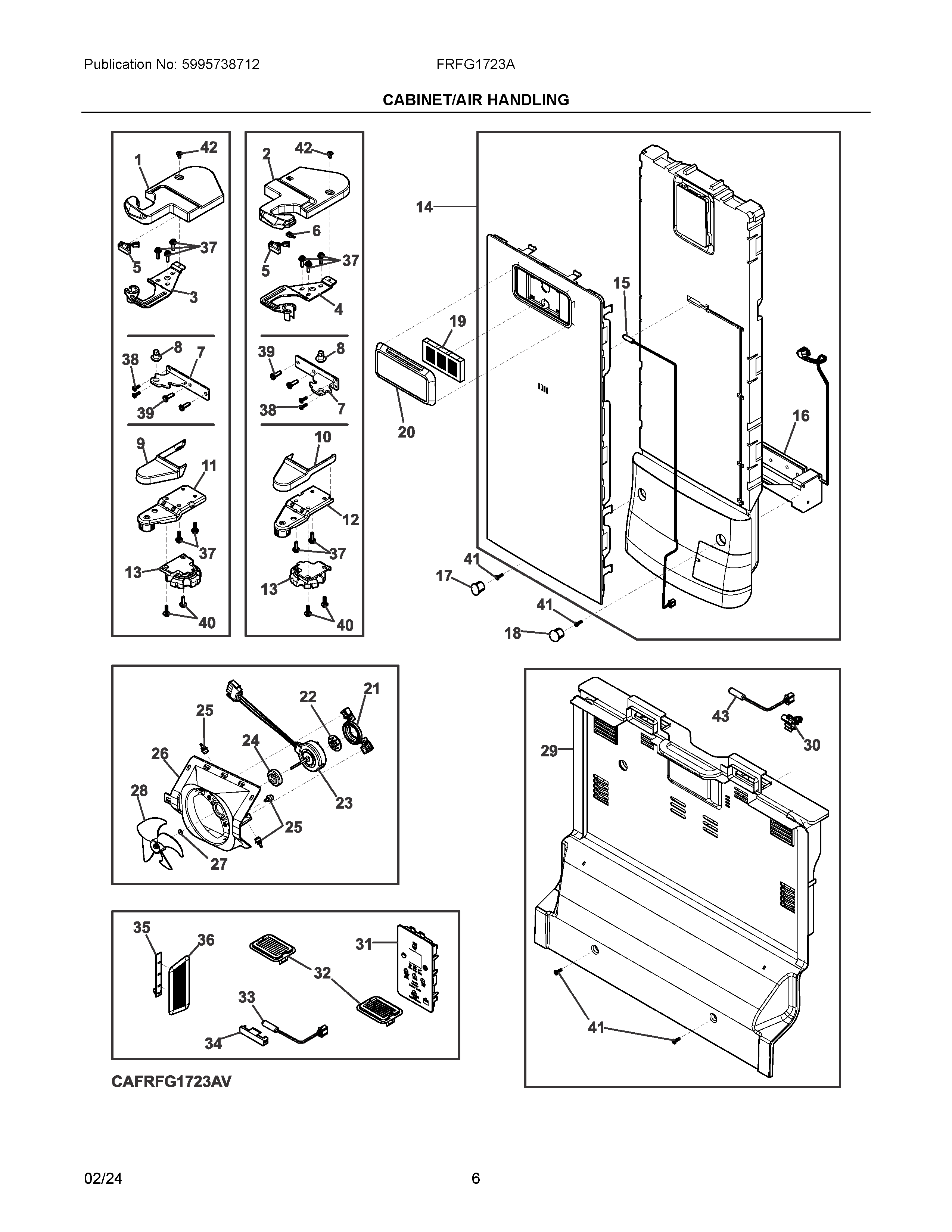

FRFG1723AV01 04 – CABINET/AIR HANDLING

Products

PositionProduct
NIA5304520470 Frigidaire Refrigerator Seal
NI811949503 Frigidaire Screw
15304529185 Frigidaire Cover
2COVER, TOP HINGE, RH
35304529181 Frigidaire Hinge
45304529182 Frigidaire Hinge
55304529184 Frigidaire Switch
6SENSOR, HUMIDITY
75304529177 Frigidaire Hinge
85304529178 Frigidaire Pin
9COVER, FOOT, LH HINGE
10COVER, FOOT, RH HINGE
115304529126 Frigidaire Refrigerator Foot Assembly
125304529127 Frigidaire Assembly Foot
135304529124 Frigidaire Refrigerator Roller Foot
145304529130 Frigidaire Refrigerator Air Tower
155304529132 Frigidaire Refrigerator Harness
165304529131 Frigidaire Refrigerator Damper Assembly
17COVER, SCREW, LH, AIR TOWER
18COVER, SCREW, RH, AIR TOWER
19PAULTRA2 Frigidaire Pure Air Ultra 2 Filter
205304519171 Frigidaire Refrigerator Cover
215304519177 Frigidaire Refrigerator Clip
225304519178 Frigidaire Refrigerator Grommet
23809069207 Frigidaire Refrigerator Motor
245304529138 Frigidaire Grommet
25GROMMET, EVAP FAN, SIDE
26811975001 Frigidaire Refrigerator Shroud
27WASHER, SLINGER, NYLON
28BLADE, EVAPORATOR FAN
295304529145 Frigidaire Refrigerator Cover Assembly
30811980406 Frigidaire Clamp
31USER INTERFACE,ASMY,CONTROL
32COVER, GRID, AIR RETURN
33242515406 Frigidaire Refrigerator Sensor
34COVER, REED SWITCH, FREEZER
355304523011 Frigidaire Refrigerator Light Board
36LENS, LED LIGHT
385304523029 Frigidaire Screw Assembly
39807826801 Frigidaire Screw
40811949401 Frigidaire Refrigerator Screw
41SCREW, TAPPING PH, M4
425304519089 Frigidaire Refrigerator Screw
435304520944 Frigidaire Refrigerator Sensor
