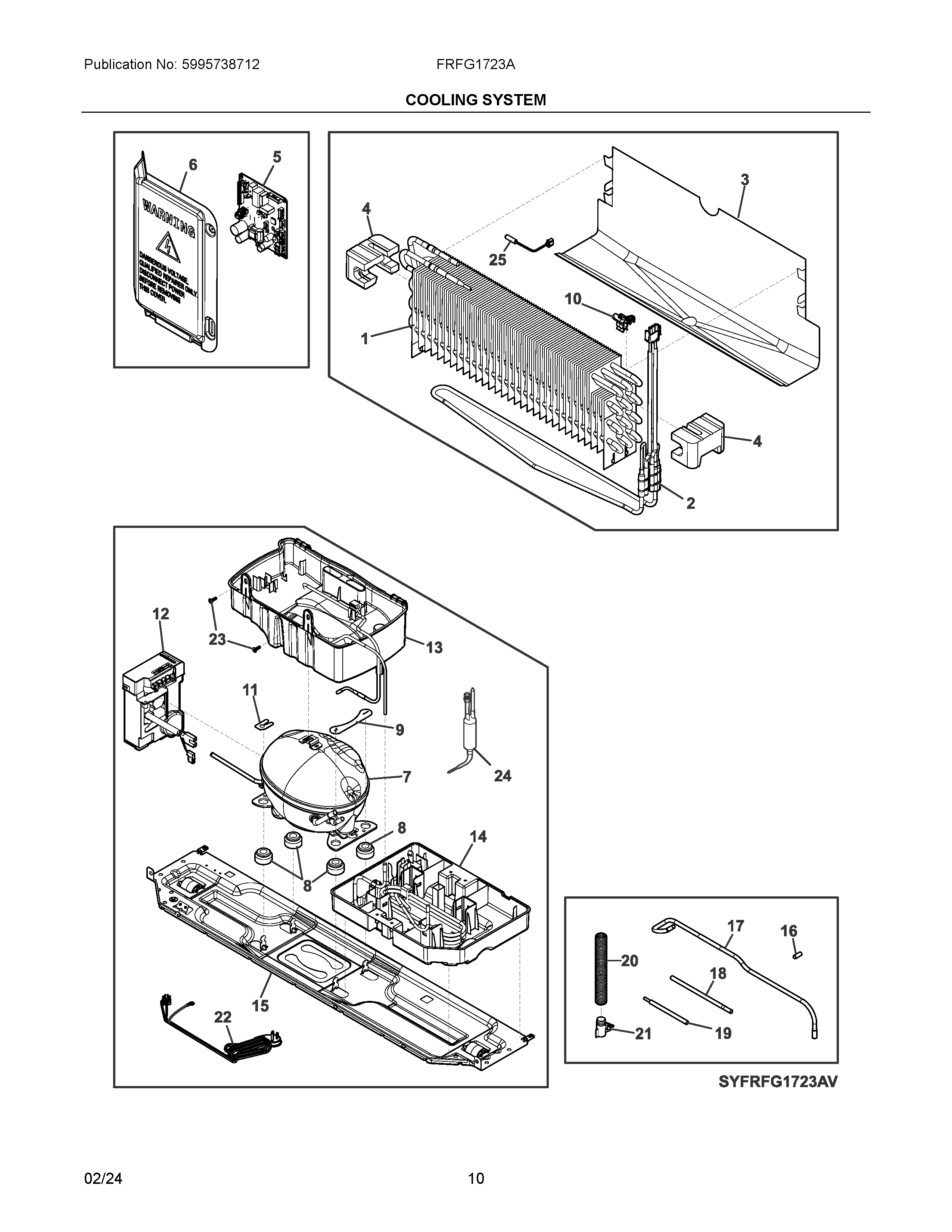

FRFG1723AV01 06 – COOLING SYSTEMadmin2025-04-26T08:34:57+00:00FRFG1723AV01 06 – COOLING SYSTEM
Products
| Position | Product |
|---|
| NIA | SEAL, CONNECTOR, 3 PIN |
| NIA | 5304519110 Frigidaire Screw |
| NIA | 808199001 Frigidaire Screw |
| NI | 811949503 Frigidaire Screw |
| NI | CABLE TIE |
| NIA | 5304523032 Frigidaire Refrigerator Screw |
| NI | Screw,PF AB PFZ PF ,3.5x1.27x19 |
| 1 | 5304529139 Frigidaire Refrigerator Evaporator |
| 2 | HEATER |
| 3 | TROUGH, DRAIN, EVAPORATOR |
| 4 | SUPPORT |
| 5 | 5304535182 Frigidaire Electrical Control |
| 6 | 5304529129 Frigidaire Refrigerator Housing |
| 7 | 5304529146 Frigidaire Refrigerator Compressor |
| 8 | 811978901 Frigidaire Refrigerator Grommet |
| 9 | 5304524607 Frigidaire Clamp |
| 10 | 811980406 Frigidaire Clamp |
| 11 | CLAMP, COMPRESSOR, SINGLE HOLE |
| 12 | 5304529147 Frigidaire Refrigerator Inverter Assembly |
| 13 | DRAIN PAN |
| 14 | 5304529149 Frigidaire Refrigerator Drain Pan |
| 15 | BASE ASSEMBLY, COMPRESSOR, W/ROLLERS |
| 16 | Cap,tubing |
| 17 | 5304529148 Frigidaire Tube |
| 18 | TUBE, PROCESS |
| 19 | 5304523065 Frigidaire Refrigerator Tubing |
| 20 | 5304529151 Frigidaire Refrigerator Tube |
| 21 | 811976001 Frigidaire Assembly-Valve |
| 22 | CORD, POWER, ELECTRIC SERVC |
| 23 | WCI 519092015 |
| 24 | A19676501 Frigidaire Refrigerator Drier Filter |
| 25 | 5304520944 Frigidaire Refrigerator Sensor |
