FRFG1723AV01 07 – ICE MAKER

FRFG1723AV01 07 – ICE MAKER

Written by

in

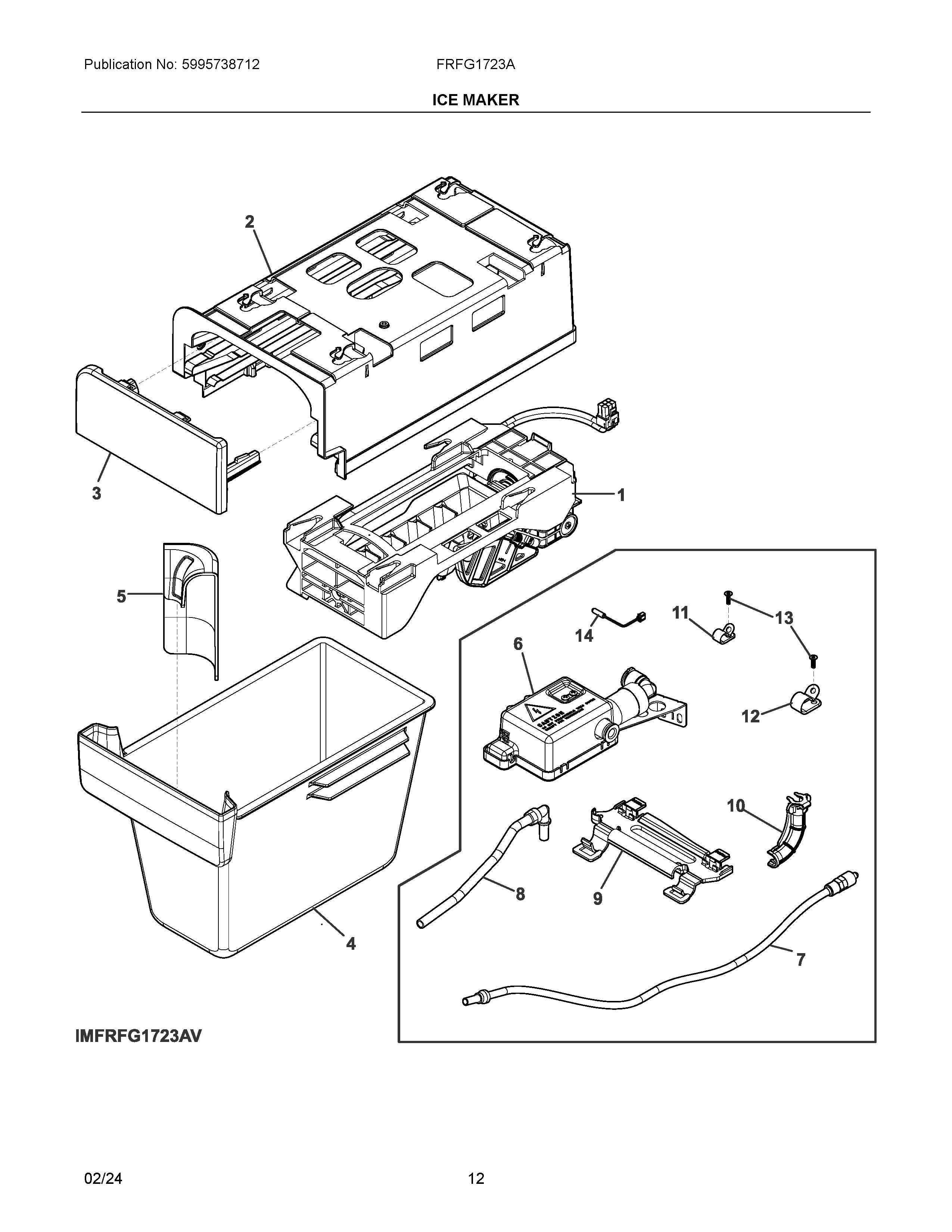

FRFG1723AV01 07 – ICE MAKER

Products

PositionProduct
NIASCREW, PHIL PH, M4 X 6
NICABLE TIE
1243297604 Frigidaire Refrigerator Ice Maker
25304529286 Frigidaire Bracket
35304529154 Frigidaire Refrigerator Cover
45304533997 Frigidaire Ice Container
5SCOOP
65304529163 Frigidaire Refrigerator Valve Assembly
7TUBE ASMY,INLET WATER,OVERMOLD
85304529155 Frigidaire Refrigerator Tube
95304526863 Frigidaire Clamp
10242200102 Frigidaire Refrigerator Clip
11CLAMP
12240396801 Frigidaire Refrigerator Tube Clamp
13811949503 Frigidaire Screw
145304520944 Frigidaire Refrigerator Sensor
