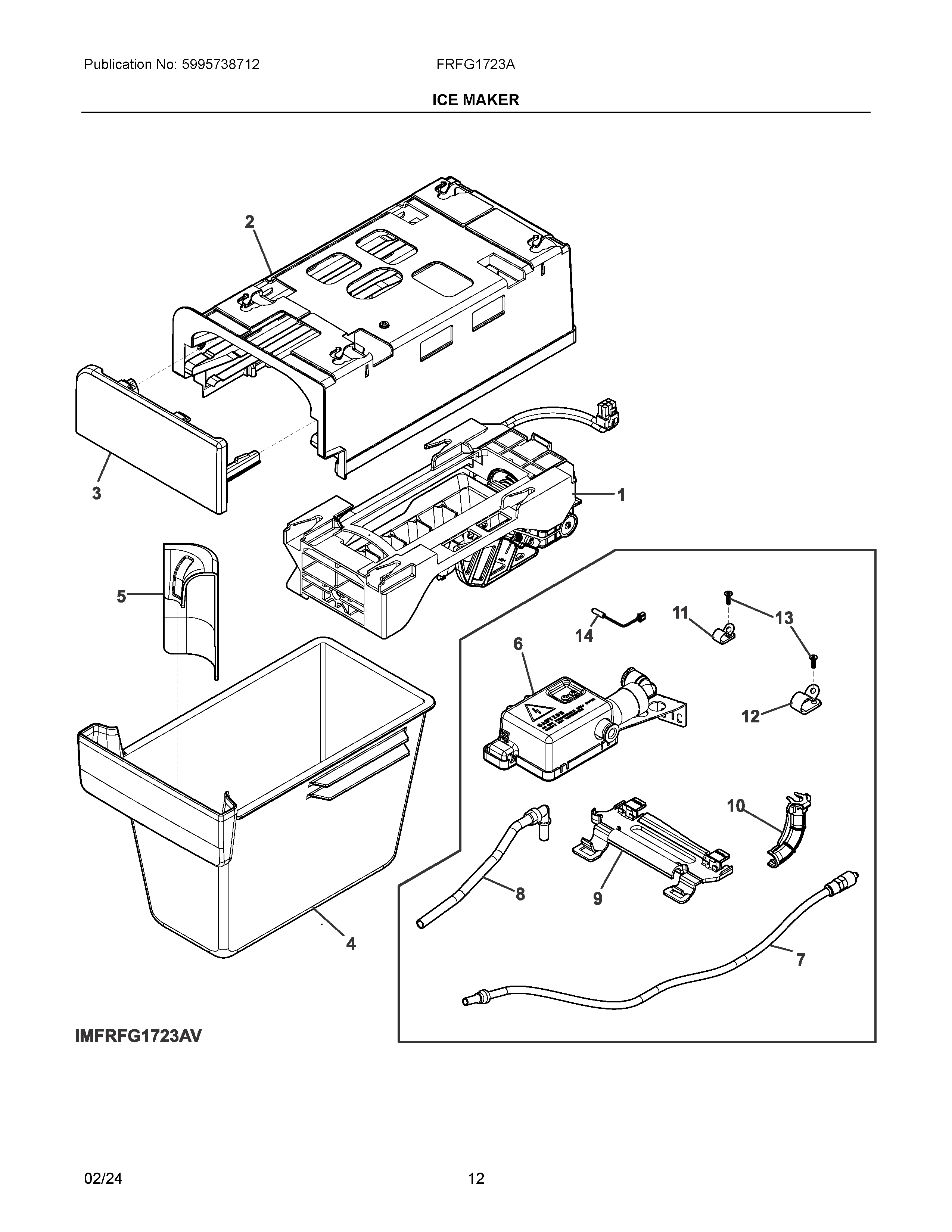

FRFG1723AV02 07 – ICE MAKER

Products

Position	Product
NIA	SCREW, PHIL PH, M4 X 6
NI	CABLE TIE
1	243297604 Frigidaire Refrigerator Ice Maker
2	5304529286 Frigidaire Bracket
3	5304529154 Frigidaire Refrigerator Cover
4	5304533997 Frigidaire Ice Container
5	SCOOP
6	5304529163 Frigidaire Refrigerator Valve Assembly
7	TUBE ASMY,INLET WATER,OVERMOLD
8	5304529155 Frigidaire Refrigerator Tube
9	5304526863 Frigidaire Clamp
10	242200102 Frigidaire Refrigerator Clip
11	CLAMP
12	240396801 Frigidaire Refrigerator Tube Clamp
13	811949503 Frigidaire Screw
14	5304520944 Frigidaire Refrigerator Sensor
