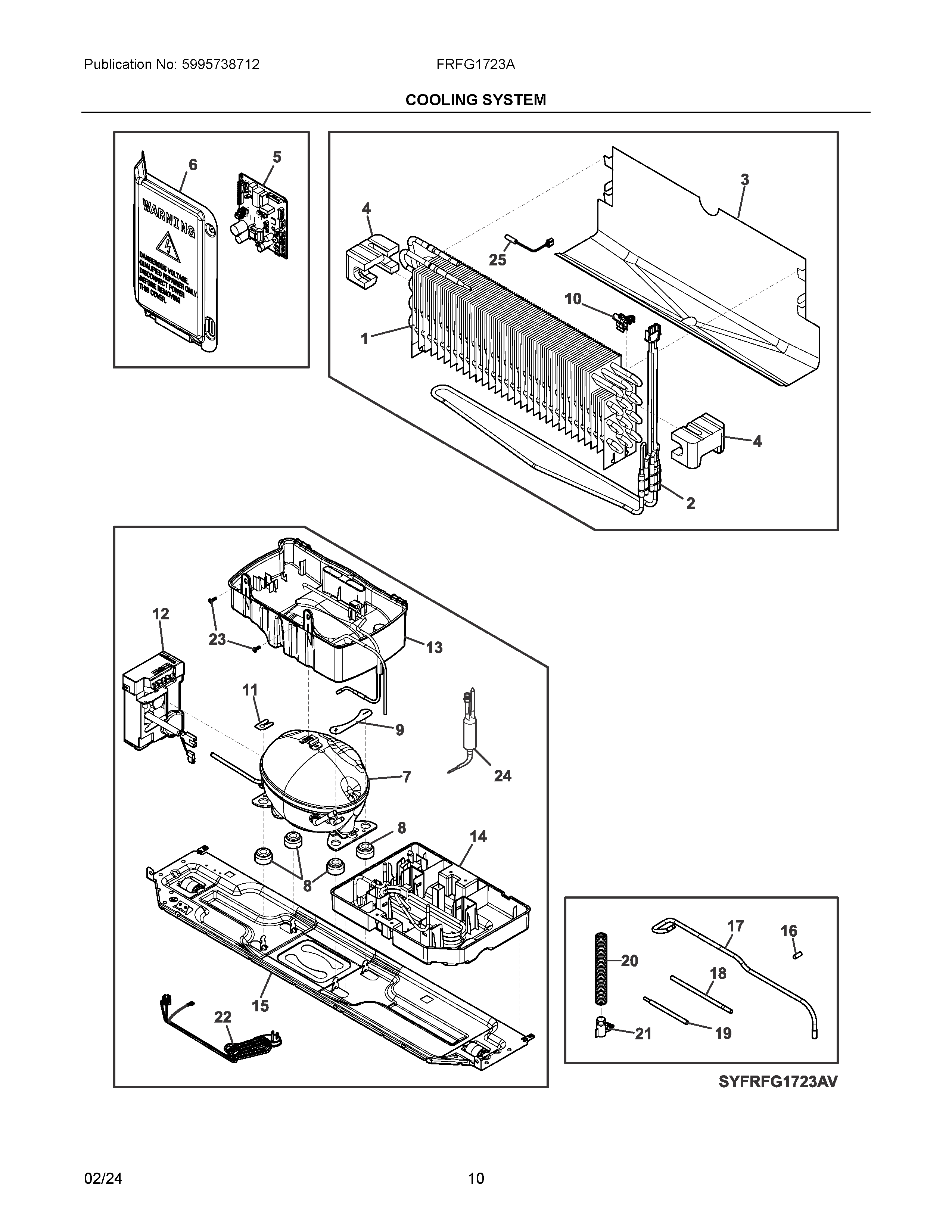

FRFG1723AV03 06 – COOLING SYSTEM

Products

Position	Product
NIA	SEAL, CONNECTOR, 3 PIN
NIA	5304519110 Frigidaire Screw
NIA	808199001 Frigidaire Screw
NI	811949503 Frigidaire Screw
NI	CABLE TIE
NIA	5304523032 Frigidaire Refrigerator Screw
NI	Screw,PF AB PFZ PF ,3.5×1.27×19
1	5304529139 Frigidaire Refrigerator Evaporator
2	HEATER
3	TROUGH, DRAIN, EVAPORATOR
4	SUPPORT
5	5304535182 Frigidaire Electrical Control
6	5304529129 Frigidaire Refrigerator Housing
7	5304529146 Frigidaire Refrigerator Compressor
8	811978901 Frigidaire Refrigerator Grommet
9	5304524607 Frigidaire Clamp
10	811980406 Frigidaire Clamp
11	CLAMP, COMPRESSOR, SINGLE HOLE
12	5304529147 Frigidaire Refrigerator Inverter Assembly
13	DRAIN PAN
14	5304529149 Frigidaire Refrigerator Drain Pan
15	BASE ASSEMBLY, COMPRESSOR, W/ROLLERS
16	Cap,tubing
17	5304529148 Frigidaire Tube
18	TUBE, PROCESS
19	5304523065 Frigidaire Refrigerator Tubing
20	5304529151 Frigidaire Refrigerator Tube
21	811976001 Frigidaire Assembly-Valve
22	CORD, POWER, ELECTRIC SERVC
23	WCI 519092015
24	A19676501 Frigidaire Refrigerator Drier Filter
25	5304520944 Frigidaire Refrigerator Sensor
