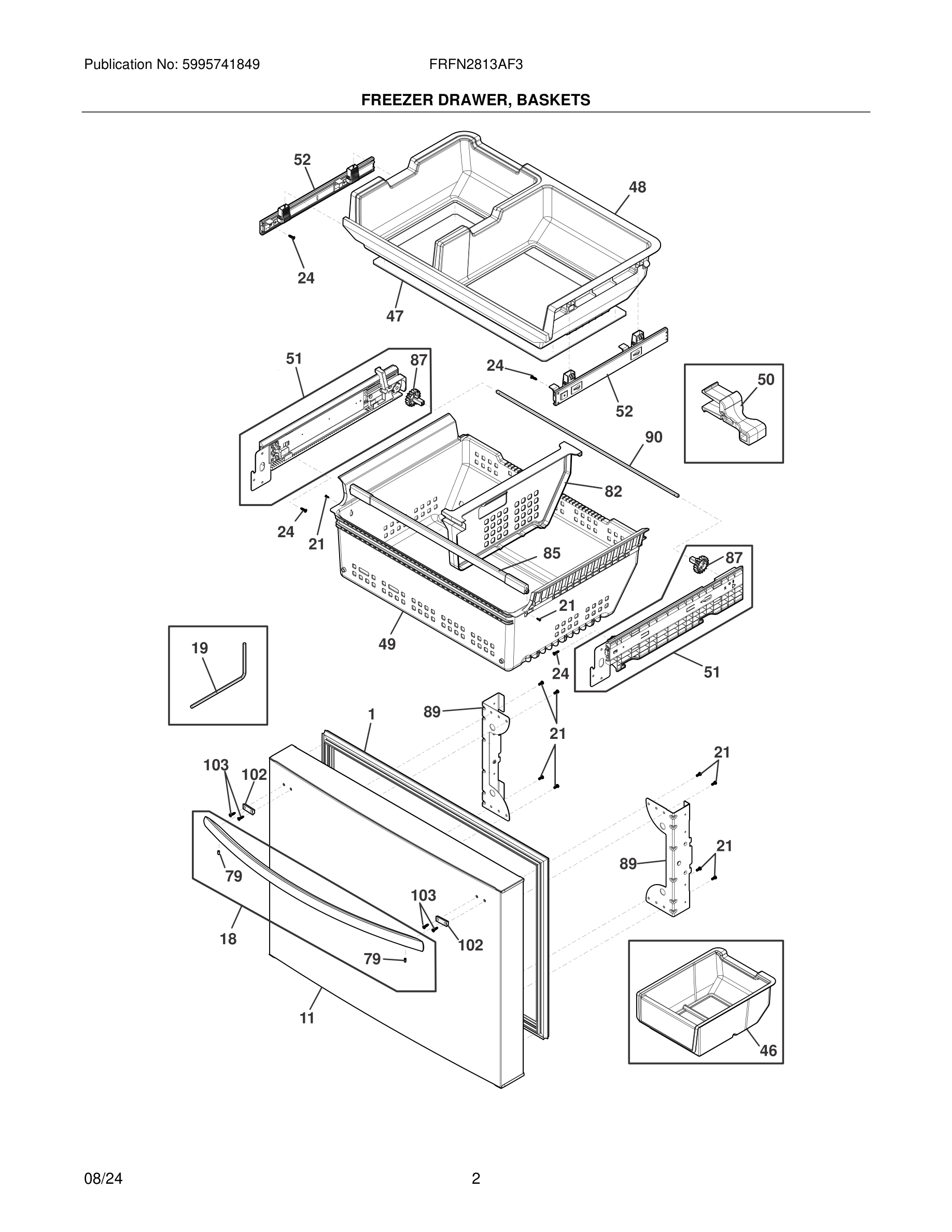

FRFN2813AF3 03 – FREEZER DRAWER, BASKETS

FRFN2813AF3 03 – FREEZER DRAWER, BASKETS

Written by

in

FRFN2813AF3 03 – FREEZER DRAWER, BASKETS

Products

PositionProduct
*242146401 Frigidaire Refrigerator Screw
1#GASKET
115304530833 Frigidaire Refrigerator Drawer Panel
185304531232 Frigidaire Refrigerator Handle
195304508270 Frigidaire Wrench
21241953902 Frigidaire Refrigerator Screw
24240383412 Frigidaire Refrigerator Screw
465304536912 Frigidaire Container Assembly
475304531174 Frigidaire Glass
485304530944 Frigidaire Basket
495304525892 Frigidaire Refrigerator Freezer Basket
505304501271 Frigidaire Shelf Clip
51SLIDE ASSEMBLY
51SLIDE ASSEMBLY
51*242039702 Frigidaire Refrigerator Screw
52Slide Assembly, basket, RH upper
52*242039701 Frigidaire Refrigerator Screw
52Slide Assembly, basket, LH upper
79218755402 Frigidaire Refrigerator Set Screw
825304529930 Frigidaire Divider Assembly
85242139301 Frigidaire Refrigerator Support-Beam
875304507999 Frigidaire Refrigerator Pinion
895304509676 Frigidaire Refrigerator Bracket
90241770705 Frigidaire Bar
1025304504279 Frigidaire Handle Base
103242077302 Frigidaire Screw
