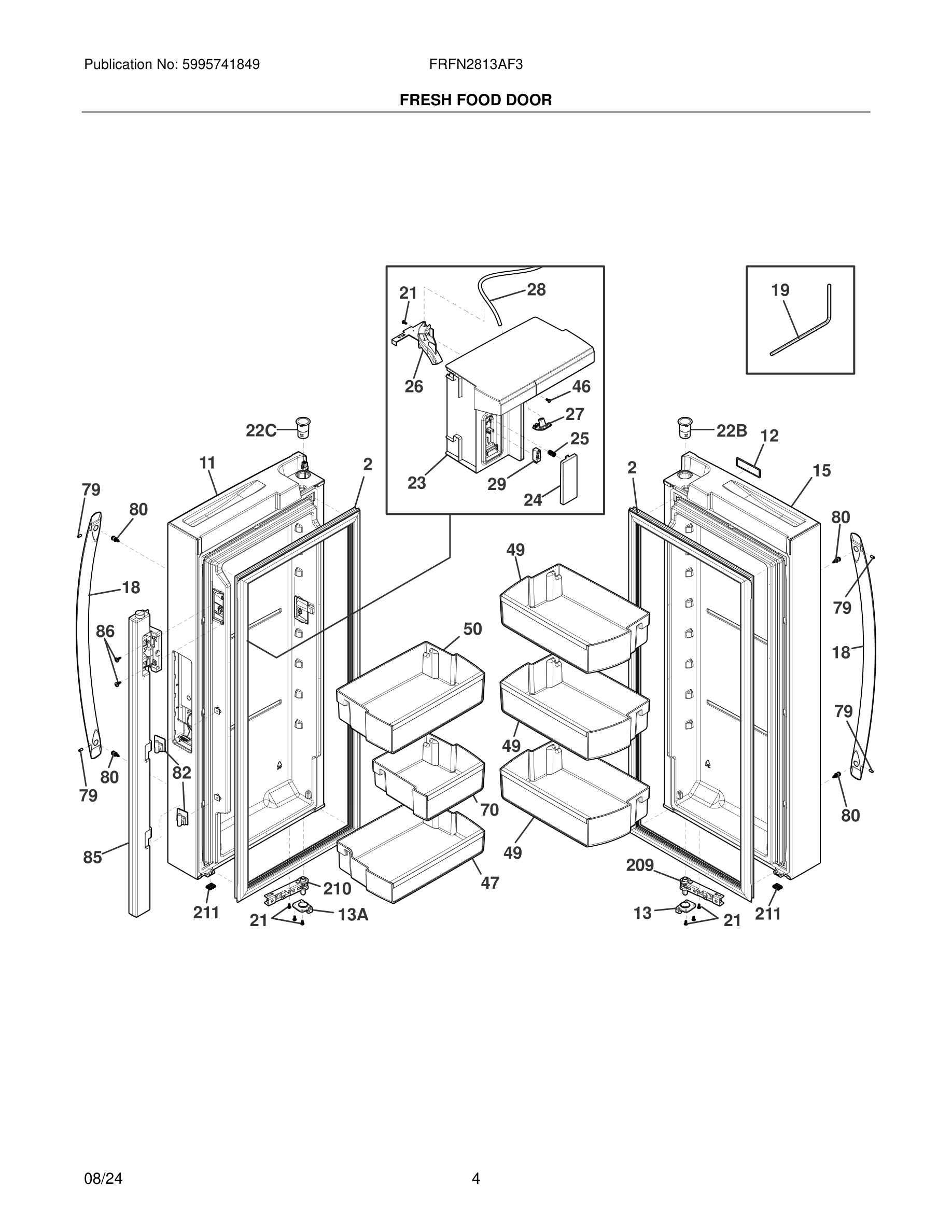

FRFN2813AF3 05 – FRESH FOOD DOOR

FRFN2813AF3 05 – FRESH FOOD DOOR

Written by

in

FRFN2813AF3 05 – FRESH FOOD DOOR

Products

PositionProduct
*241806601 Frigidaire Refrigerator Water Connector
15304511146 Frigidaire Refrigerator Nameplate
2#GASKET-DR
11#5304530764 Frigidaire Refrigerator Door Assembly
11*#5304531012 Frigidaire Harness
11*#HARNESS
135304508039 Frigidaire Refrigerator Door Stop
13A5304508038 Frigidaire Refrigerator Door Stop
155304530763 Frigidaire Refrigerator Door Assembly
185304531229 Frigidaire Refrigerator Handle
195304508270 Frigidaire Wrench
21241953902 Frigidaire Refrigerator Screw
22C241760401 Frigidaire Refrigerator Bearing
22B241760403 Frigidaire Refrigerator Bearing
235304530964 Frigidaire Refrigerator Housing
245304530870 Frigidaire Button
255304519199 Frigidaire Refrigerator Spring
265304531239 Frigidaire Refrigerator Retainer
275304530965 Frigidaire Refrigerator Nozzle
28218976449 Frigidaire Water Tube
29#241870104 Frigidaire Switch
46240383413 Frigidaire Screw Assembly
47DOOR BIN
495304530947 Frigidaire Refrigerator Door Bin
505304530949 Frigidaire Door Bin
70DOOR BIN
79218755402 Frigidaire Refrigerator Set Screw
80218755504 Frigidaire Refrigerator Shoulder Screw
82241779401 Frigidaire Refrigerator Flipper Hinge Mullion
85#5304530853 Frigidaire Refrigerator Assembly Mullion
86242015001 Frigidaire Refrigerator Screw
86*5304508776 Frigidaire Washer Lock
2095304526201 Frigidaire Refrigerator Right Hand Door Closer Without
2105304526202 Frigidaire Refrigerator Left Hand Door Closer
2115304508077 Frigidaire Refrigerator Bumper
