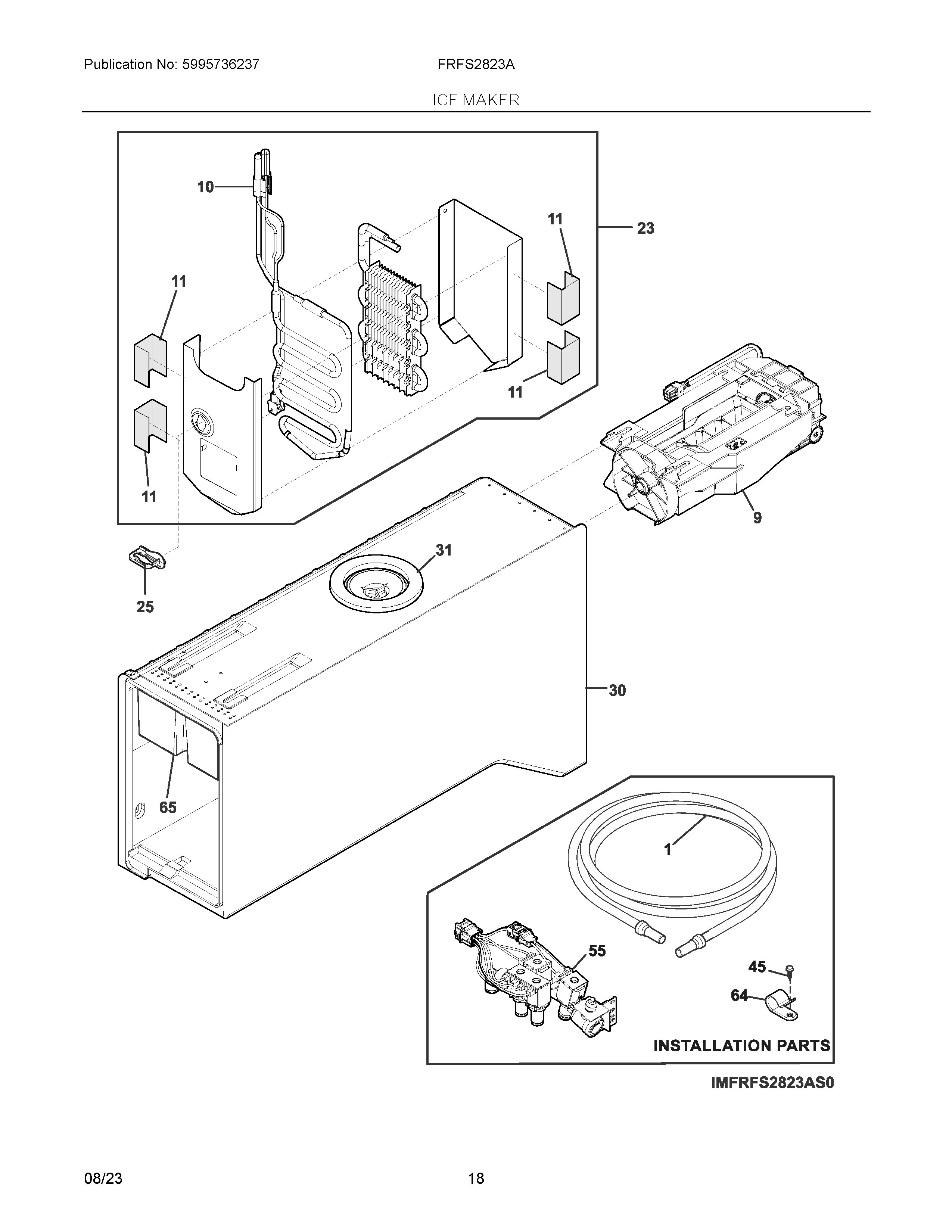

FRFS2823AD4 09 – ICE MAKER

Products

Position	Product
NIA	241953902 Frigidaire Refrigerator Screw
NID	218976829 Frigidaire Refrigerator Tube
NIB	5304530732 Frigidaire Refrigerator Wiring Harness
NIA	5303918645 Frigidaire Refrigerator Thermistor Kit
NIC	242200102 Frigidaire Refrigerator Clip
NIB	240363602 Frigidaire Refrigerator Shoulder Screw
NIB	241806601 Frigidaire Refrigerator Water Connector
NI	218515401 Frigidaire Refrigerator Clip
NIA	218709101 Frigidaire Refrigerator Handle Mounting Screw
1	218976443 Frigidaire Refrigerator Tube
1A	5304535843 Frigidaire Tube Assembly
4	5304453707 Frigidaire Oven Screw
9	243297608 Frigidaire Refrigerator Ice Maker
10	5304519629 Frigidaire Refrigerator Clip
11	5304485759 Frigidaire Refrigerator Tape
23	5304530680 Frigidaire Assembly Evaporator
25	5304508037 Frigidaire Refrigerator Connector
30	5304531299 Frigidaire Housing Assembly
31	241512813 Frigidaire Seal Doughnut
45	5303307980 Frigidaire Oven Screw
55	VALVE,WATER,QUAD SOLENOID
64	240396801 Frigidaire Refrigerator Tube Clamp
65	COVER, WIRING
